Preview

MJE3055: DescriptionMedium Power NPN Bipolar Transistor; Polarity: NPN; V(BR)CEO Min (V): 60V; IC (A): 10A; HFE Min: 20; HFE Max: 100; VCE (V): 4V; IC (mA): 4000mA; VCE(SAT) (V): 8V; IC (mA)1: 10000mA; IB (mA): 3300mA; FT Min (MHz): 2 MHz; PTM Max (W): 2W; Package: TO-220AB; package_code: TO-220AB; mfr_package_code: TO-220AB; CategoryDiscrete semiconductor The transistor; File Size155KB，3 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric View All

MJE3055 Overview

Medium Power NPN Bipolar Transistor; Polarity: NPN; V(BR)CEO Min (V): 60V; IC (A): 10A; HFE Min: 20; HFE Max: 100; VCE (V): 4V; IC (mA): 4000mA; VCE(SAT) (V): 8V; IC (mA)1: 10000mA; IB (mA): 3300mA; FT Min (MHz): 2 MHz; PTM Max (W): 2W; Package: TO-220AB; package_code: TO-220AB; mfr_package_code: TO-220AB

MJE3055 Parametric

Parameter Name	Attribute value
Parts packaging code	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
Maximum collector current (IC)	10 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	5
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Transistor component materials	SILICON
Nominal transition frequency (fT)	2 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

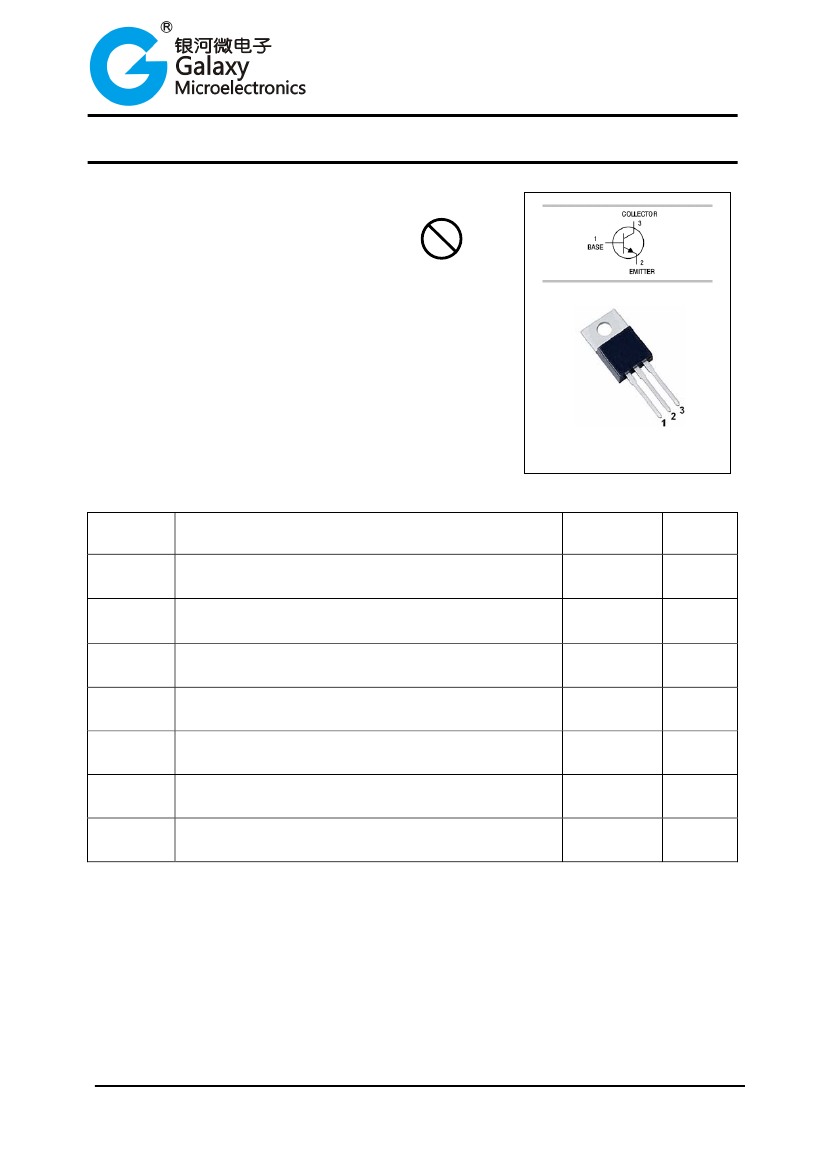

Production specification

Plastic-Encapsulate

Transistors

FEATURES



DC Current Gain Specified to 10A.

High Current Gain.

MJE3055

Pb

Lead-free

TO-220AB

MAXIMUM RATING

operating temperature range applies unless otherwise specified

Symbol

V

CBO

V

CEO

V

EBO

I

C

I

B

P

C

T

j,

T

stg

Parameter

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Collector Current

Base Current

Collector Dissipation @T

C

=25℃

Junction and Storage Temperature

Value

70

60

5

10

6

75

-55 to +150

Unit

V

A

W

℃

X024

Rev.A

www.gmesemi.com

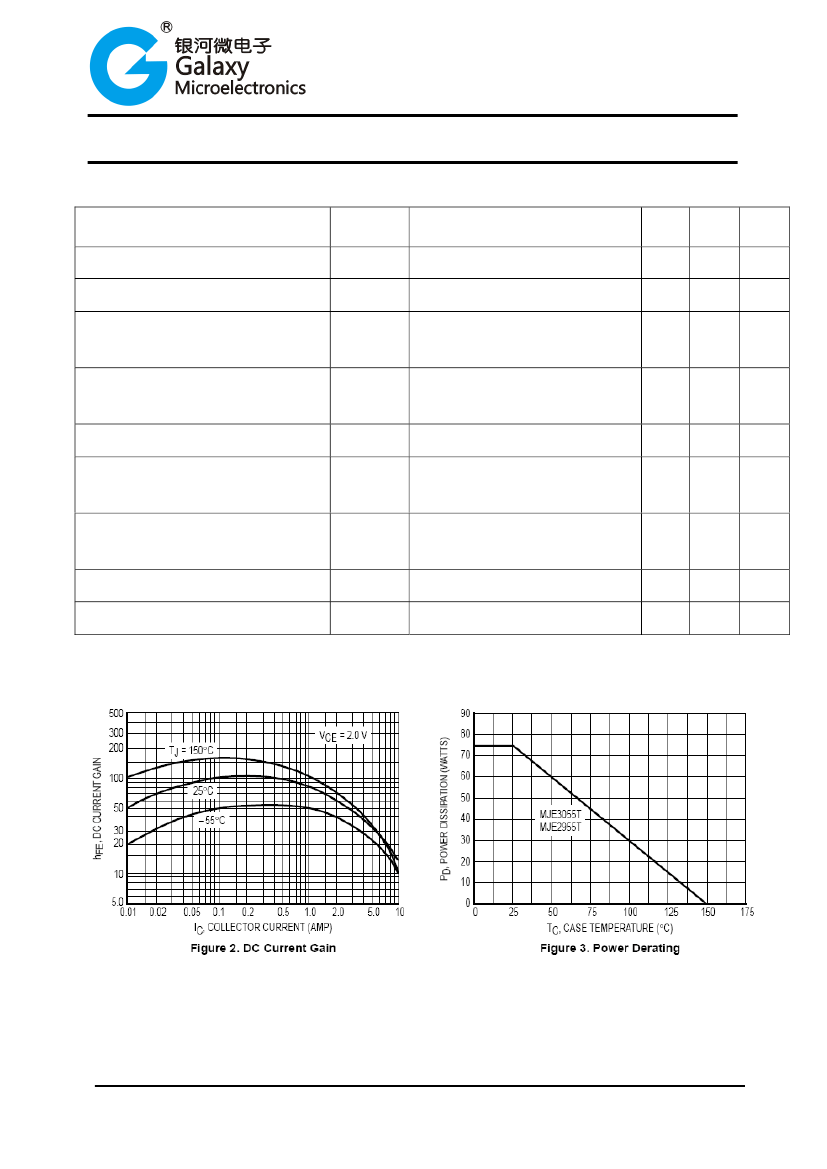

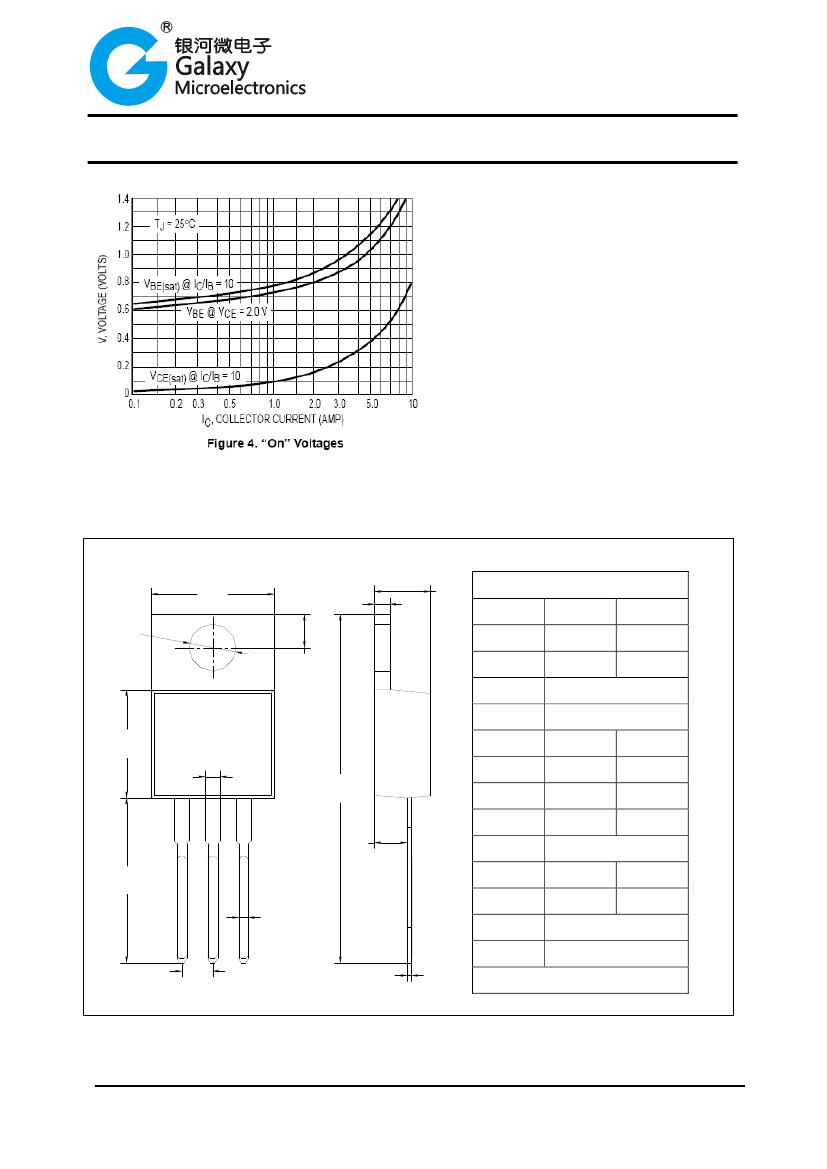

1
