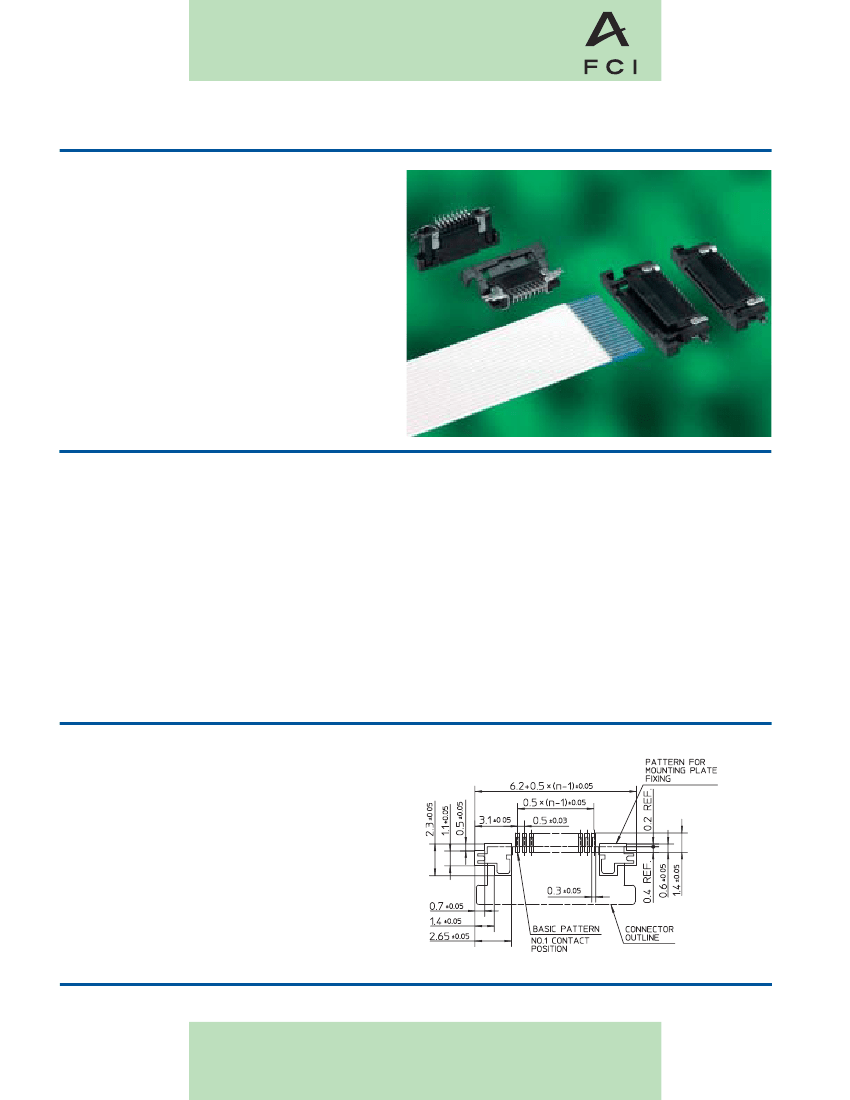

SFV series - ZIF / SMT
0.50 mm Spacing for FFC / FPC
Features
■
■
■
■
■
Available in 4 to 35 positions
Right angle
Cable lock option
Top and bottom contacts
Excellent cable retention with
small size slider
Benefits
■
The Gas-Tight, High pressure (GTH) contact system ensures a low cost connection
with reliability equal to gold plating.
■
The Zero Insertion Force (ZIF) connection allows an increased number of
mating cycles with minimal wear.
■
The ZIF pre-holding process provides a stable and reliable mating operation.
■
The slider ensures maximum cable retention with a minimum size.
■
The cable lock option provides cable strain relief as well as full retention of cable.
■
Fork shaped contacts mean stable and low contact resistance.
■
Product variations cover a broad range of applications.
Technical Data
Material
Housing
:
Black
Slider
:
Contact
:
Polyamide Resin, glass reinforced, UL94V-0,
PPS Resin, glass reinforced, UL94V-0, Brown
(with cable-lock : Black)
Phosphor Bronze, Tin alloy plated
PC Board pattern
(component side)
Technical Support / Drawings / Specifications :
www.fciconnect.com
10
The most flexible solution
SFV series - ZIF / SMT
0.50 mm Spacing for FFC / FPC
Ordering Data
Series
SFV
4 to 35
20 R - 1 ST E1
Packaging
E1 = tape-and-reel :3000 pcs.
E3 = tape-and-reel :200 pcs.
Number of contacts
Terminal type
R = side entry
PCB mounting
ST = SMT type
Cable type
1
2
3
4
=
=
=
=
FPC/FFC downside contact
FPC/FFC upside contact
FPC (with cable-lock) downside contact
FPC (with cable-lock) upside contact

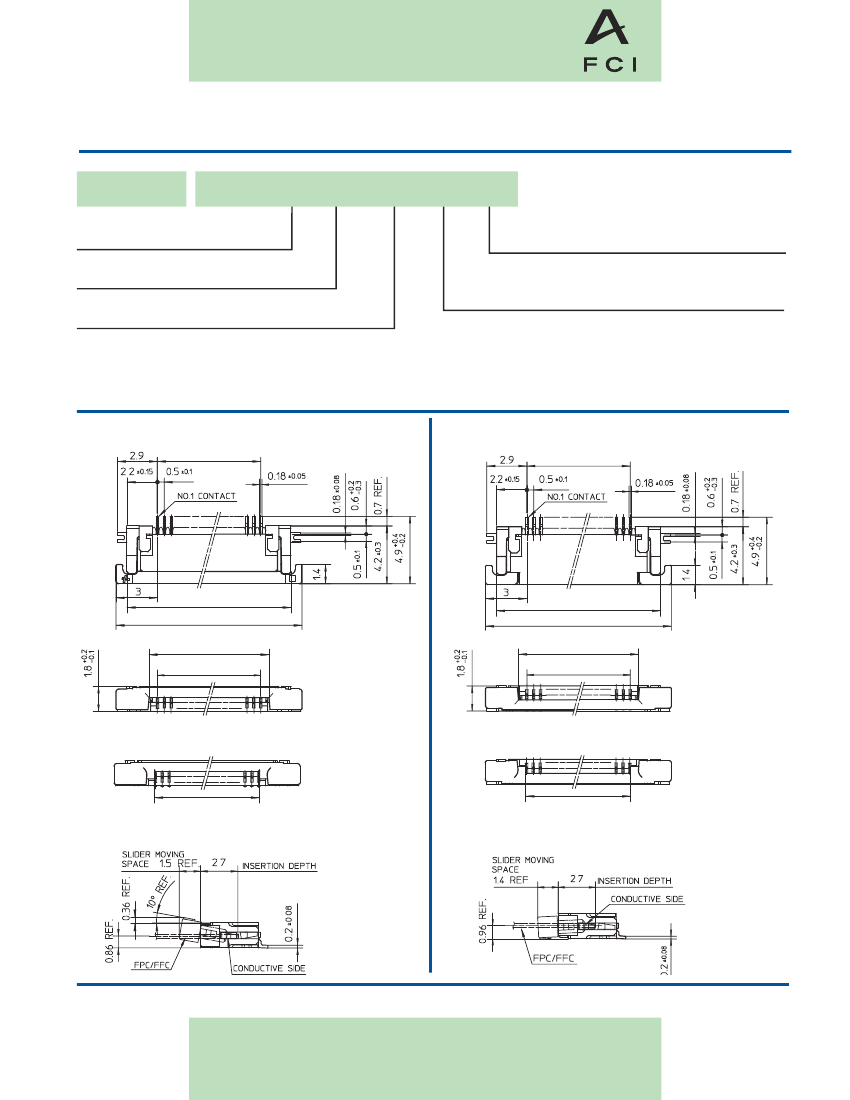

Dimensions
downside contact
_
0,5 x total no. of pos +5.5 +
0.20
upside contact
_
0,5 x total no. of pos +5.5 +
0.20
_
0,5 x total no. of pos +3.9 +
0.20
_
0,5 x total no. of pos +5.5 +
0.20
_
0,5 x total no. of pos +0.7 +
0.10
0,5 x total no. of pos -0.5
_
0,5 x total no. of pos +3.9 +
0.20
_
0,5 x total no. of pos +5.5 +
0.20
_
0,5 x total no. of pos +0.7 +
0.10
0,5 x total no. of pos -0.5
without cable lock
without cable lock
_
0,5 x total no. of pos -0.4 +
0.10
_
0,5 x total no. of pos -0.4 +
0.10
with cable lock
with cable lock
Circuitry Type
For Recommended Circuitry type see page 26 and 27
Technical Support / Drawings / Specifications /
www.fciconnect.com
Dimensions in mm
The most flexible solution
11
General
Performance characteristics
Spacing
Circuitry
Series
Electrical
Current Rating
Rated Voltage (AC/DC)
Contact Resistance (initial)
Insulation Resistance
Dielectric withstanding Voltage
Mechanical
Durability
Cycle
Vibration
Environmental
Salt Spray
Damp Heat
(steady state)
Change of Temperature
Operating temperature Range
0.30 mm
FPC
62789
0.50 mm
FFC / FPC
62674 62684 SFV
1.00 mm
FFC / FPC / CIC
SFW HFW SLW HLW
2.54 mm
DUFLEX CLINCHER
0.5A
50V
30mΩ max.
100MΩ min.
AC 200VAC 200V
0.5A
50V
30mΩ max.
100MΩ min.
AC 500V
1A
100V
30mΩ max.
500MΩ min.
AC 1000V
2A
500V
30mΩ max.
5000MΩ min.
Contact resistance : 50mΩ max.
20
20
per JIS C 0040
20
30
20
30
30
No discontinuity greater than 1µ second
per JIS C 0023
per JIS C 0022
per JIS C 0025
Contact Resistance
Contact Resistance
Contact Resistance
-55°C to +85°C
50mΩ max.
50mΩ max.
50mΩ max.
Insulation Resistance 100mΩ min.
Technical Support / Drawings / Specifications:
www.fciconnect.com
30
The most flexible solution
