SCL4017BH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SCL4017BH

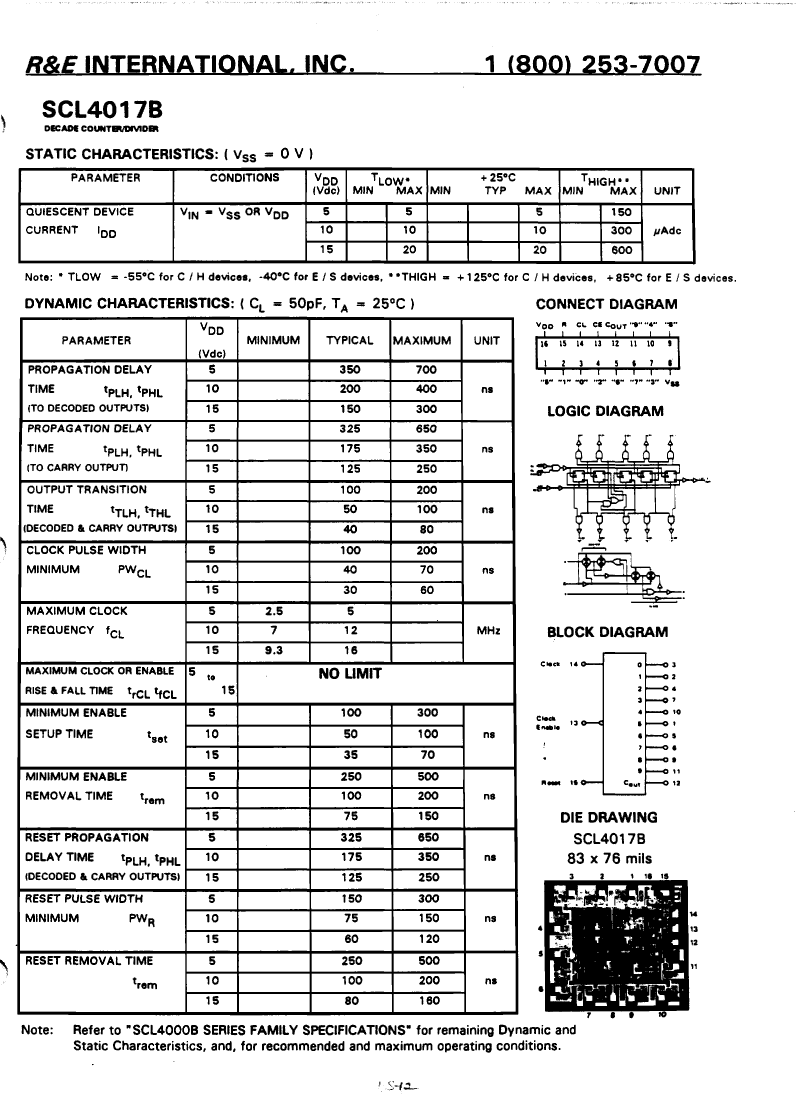

SCL4017BH: DescriptionRing Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 10-Bit, Up Direction, CMOS, 0.083 X 0.076 INCH, DIE-16; Categorylogic logic; File Size46KB，1 Pages; ManufacturerR&E International, Inc.

Download Datasheet Parametric Compare View All

SCL4017BH Overview

Ring Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 10-Bit, Up Direction, CMOS, 0.083 X 0.076 INCH, DIE-16

SCL4017BH Parametric

Parameter Name	Attribute value
Parts packaging code	DIE
package instruction	DIE,
Contacts	16
Reach Compliance Code	unknown
Counting direction	UP
series	4000/14000/40000
JESD-30 code	X-XUUC-N16
Load/preset input	YES
Logic integrated circuit type	RING COUNTER
Operating mode	SYNCHRONOUS
Number of digits	10
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
propagation delay (tpd)	700 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	UPPER
Trigger type	POSITIVE EDGE
minfmax	2.5 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

SCL4017BH Related Products

	SCL4017BH	SCL4017BC	SCL4017BS	SCL4017BE
Description	Ring Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 10-Bit, Up Direction, CMOS, 0.083 X 0.076 INCH, DIE-16	Ring Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 10-Bit, Up Direction, CMOS, CDIP16,	Ring Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 10-Bit, Up Direction, CMOS, PDSO16,	Ring Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 10-Bit, Up Direction, CMOS, PDIP16,
Reach Compliance Code	unknown	unknown	unknown	unknown
Counting direction	UP	UP	UP	UP
series	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000
JESD-30 code	X-XUUC-N16	R-GDIP-T16	R-PDSO-G16	R-PDIP-T16
Load/preset input	YES	YES	YES	YES
Logic integrated circuit type	RING COUNTER	RING COUNTER	RING COUNTER	RING COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	10	10	10	10
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum operating temperature	125 °C	125 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-40 °C	-40 °C
Package body material	UNSPECIFIED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	IN-LINE	SMALL OUTLINE	IN-LINE
propagation delay (tpd)	700 ns	700 ns	700 ns	700 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL
Terminal form	NO LEAD	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	UPPER	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
minfmax	2.5 MHz	2.5 MHz	2.5 MHz	2.5 MHz
Base Number Matches	1	1	1	1
