MBR3560 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MBR3560

MBR3560: DescriptionRectifier, Schottky; Max Peak Repetitive Reverse Voltage: 35; Max TMS Bridge Input Voltage: 60; Max DC Reverse Voltage: 300; Package: DO-4; CategoryDiscrete semiconductor diode; File Size993KB，3 Pages; ManufacturerDigitron; Websitehttp://www.digitroncorp.com

Download Datasheet Parametric View All

MBR3560 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MBR3560	-	-	View	Buy Now

MBR3560 Overview

Rectifier, Schottky; Max Peak Repetitive Reverse Voltage: 35; Max TMS Bridge Input Voltage: 60; Max DC Reverse Voltage: 300; Package: DO-4

MBR3560 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.75 V
JEDEC-95 code	DO-4
JESD-30 code	O-MUPM-D1
JESD-609 code	e0
Maximum non-repetitive peak forward current	600 A
Number of components	1
Phase	1
Number of terminals	1
Maximum output current	35 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	60 V
Maximum reverse current	1500 µA
surface mount	NO
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

High-reliability discrete products

and engineering services since 1977

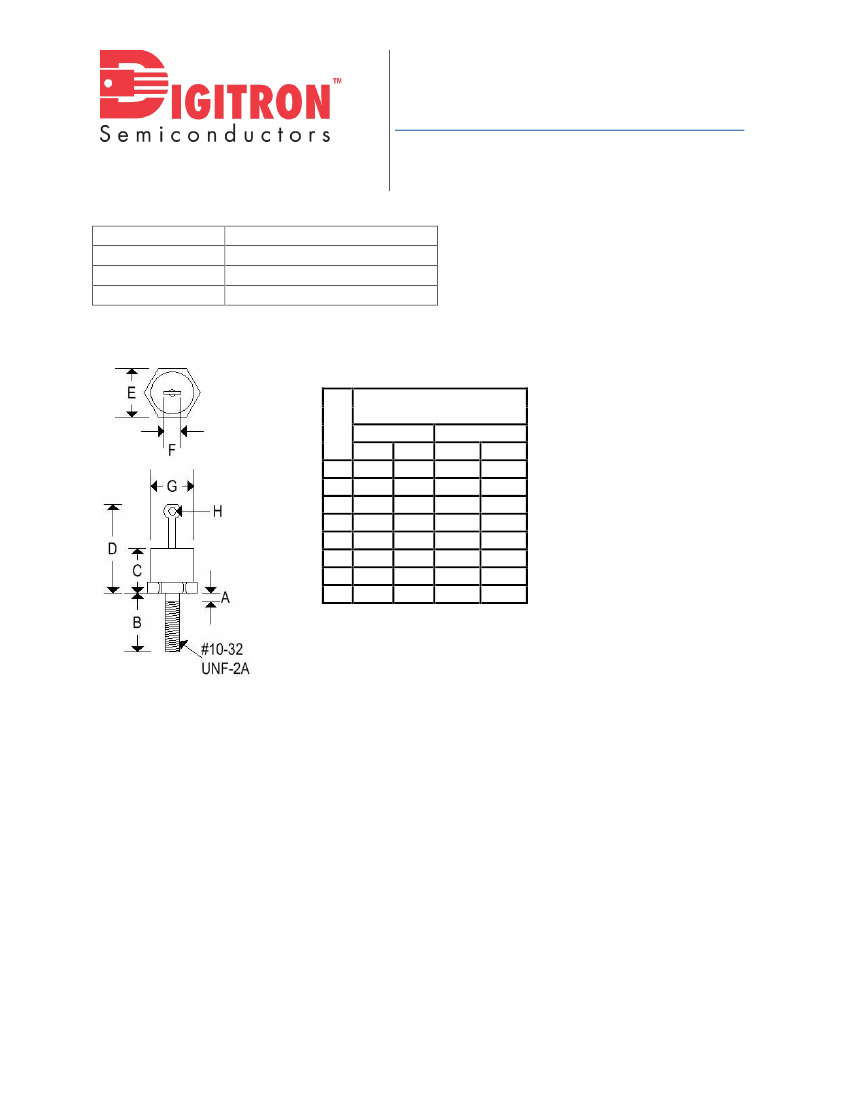

FEATURES



MBR3520-MBR35100

35A SCHOTTKY BARRIER RECTFIER

Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.

Available as non-RoHS (Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.

MAXIMUM RATINGS

Part Number

MBR3520

MBR3530

MBR3535

MBR3540

MBR3545

MBR3560

MBR3580

MBR35100

Maximum recurrent peak reverse voltage

20V

30V

35V

40V

45V

60V

80V

100V

Maximum RMS voltage

14V

21V

24.5V

28V

31.5V

42V

56V

70V

Maximum DC blocking voltage

20V

30V

35V

40V

45V

60V

80V

100V

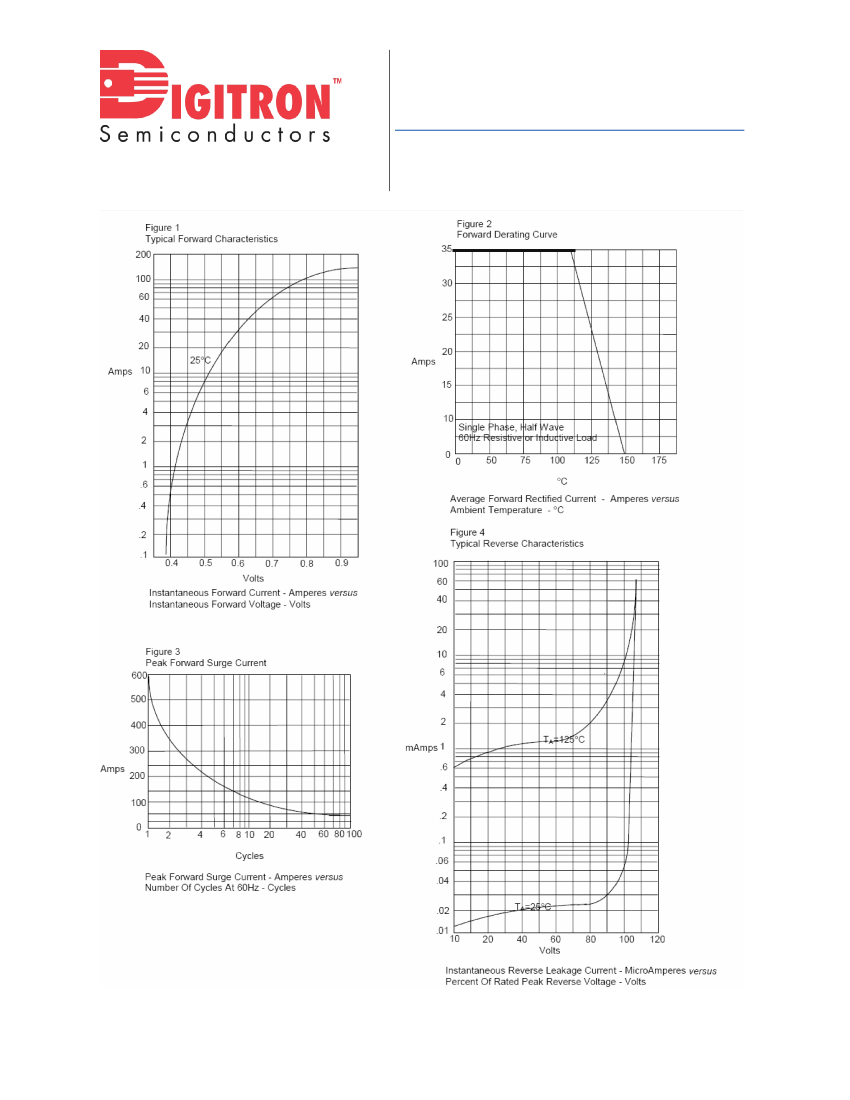

ELECTRICAL CHARACTERISTICS

= 25°C unless otherwise specified)

Parameter

Average forward current

Peak forward surge current

Maximum forward voltage drop

MBR3520-3545

MBR3560

MBR3580-35100

Maximum DC reverse current at rated DC blocking voltage

*Pulse Test: Pulse Width 300μsec, Duty Cycle 1%

Symbol

F(AV)

FSM

Value

35A

600A

.68V

.75V

.84V

1.5mA

Test Conditions

= 110°C

8.3ms, half-sine

= 35A

= 25°C*

= 25°C

Rev. 20150317
