D25S24B6RL09LF: DescriptionD Subminiature Connector, 25 Contact(s), Female, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size517KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

D25S24B6RL09LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D25S24B6RL09LF	-	-	View	Buy Now

D25S24B6RL09LF Overview

D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, ROHS COMPLIANT

D25S24B6RL09LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: DIN 41652
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

Plating

Termination

Code

24B

Type

Length of PCB

Foot Print/Pitch

termination

thickness

2.90

2.4

Straight version 2.84mm

6 /

See Note RoHS

Number of contacts

09 , 15 , 25 , 37 , 50

S : Socket

Packaging specification

6 = 500 Mating / Unmating Mini

Series

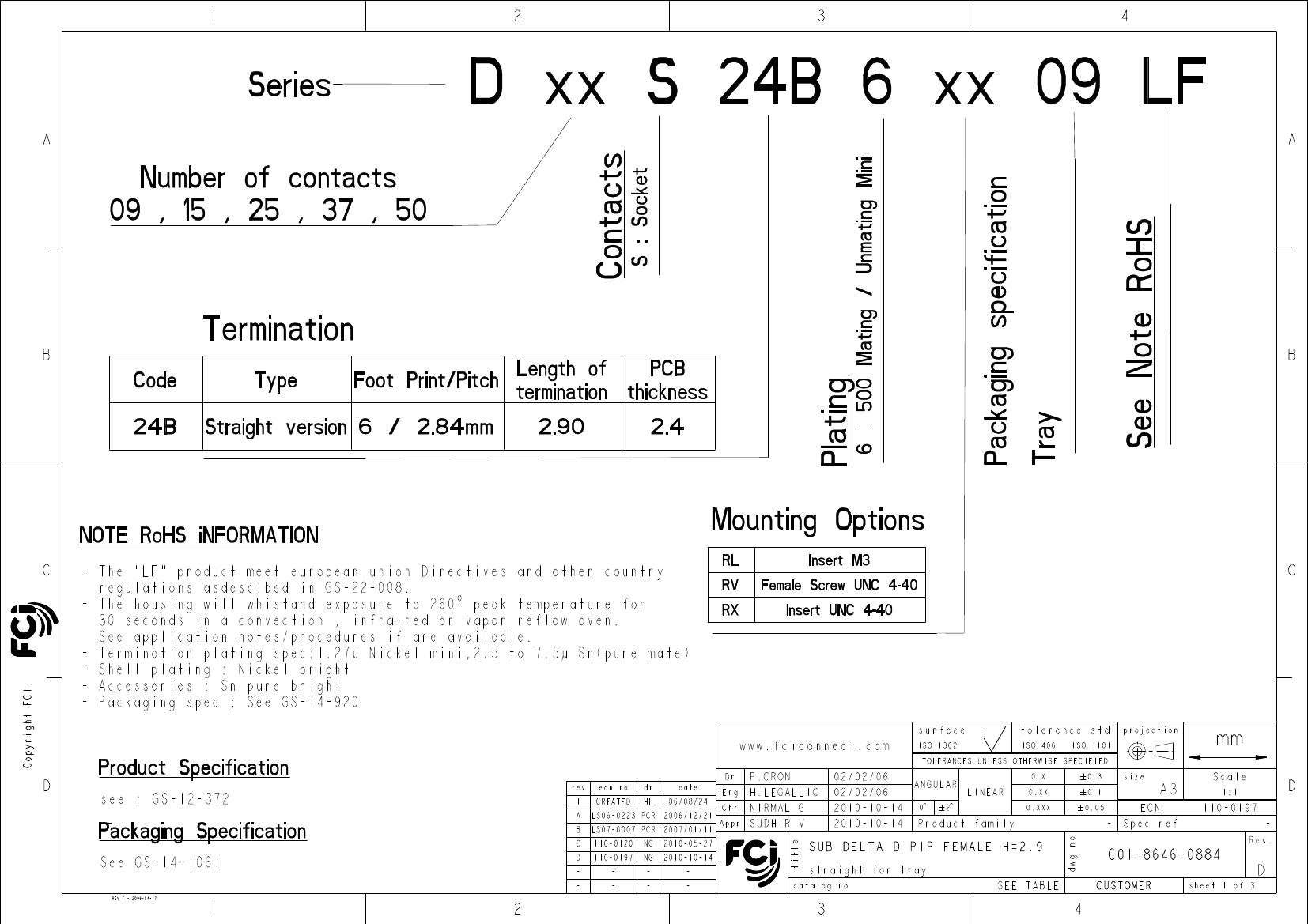

D xx S 24B 6 xx 09 LF

Contacts

NOTE RoHS iNFORMATION

- The "LF" product meet european union Directives and other country

regulations asdescibed in GS-22-008.

- The housing will whistand exposure to 260º peak temperature for

30 seconds in a convection , infra-red or vapor reflow oven.

See application notes/procedures if are available.

- Termination plating spec:1.27µ Nickel mini,2.5 to 7.5µ Sn(pure mate)

- Shell plating : Nickel bright

- Accessories : Sn pure bright

- Packaging spec ; See GS-14-920

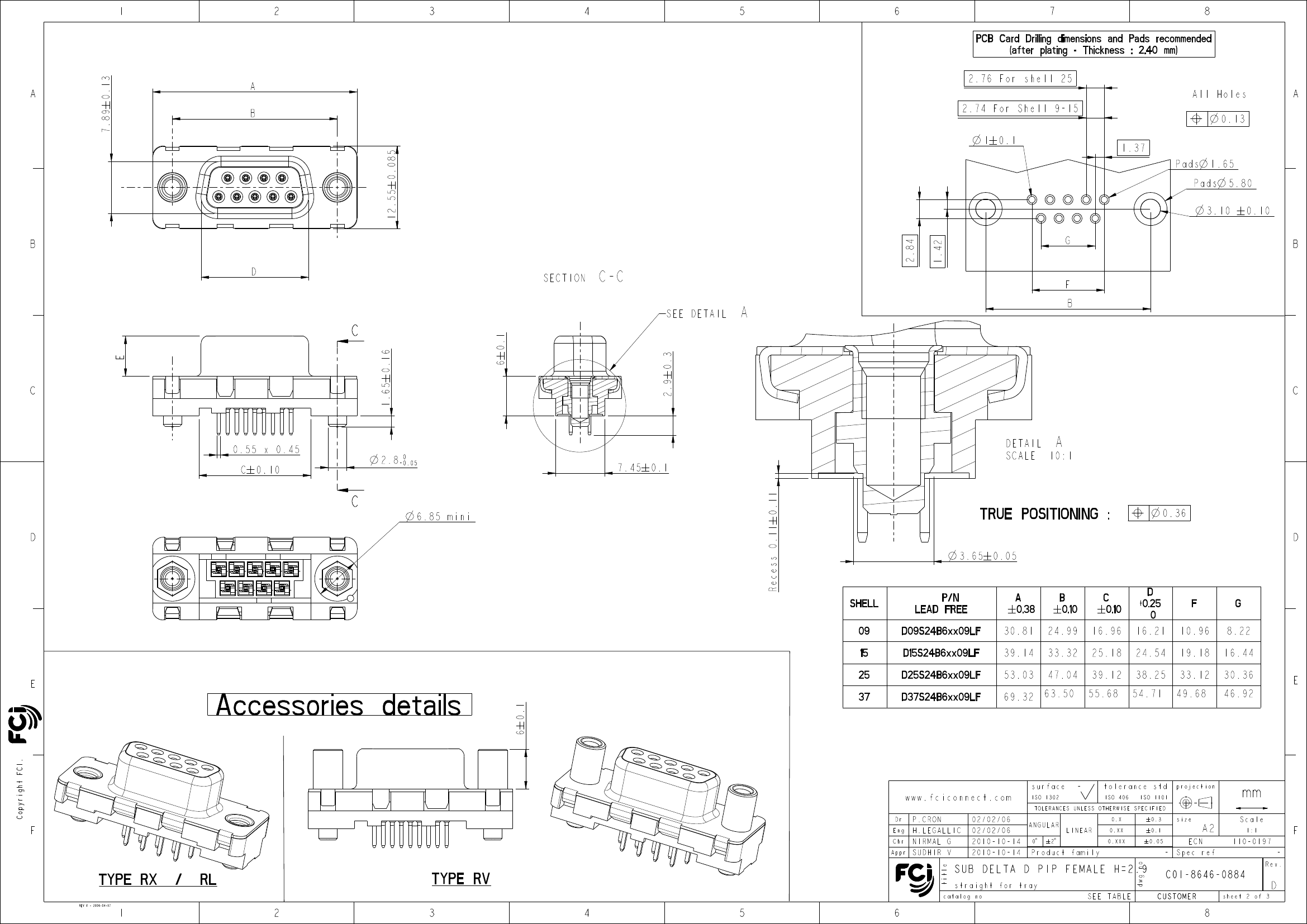

Mounting Options

Insert M3

Female Screw UNC 4-40

Insert UNC 4-40

surface

tolerance std

ISO 406

ISO 1101

Tray

projection

www.fciconnect.com

ISO 1302

Scale

1:1

Product Specification

see : GS-12-372

rev

REV F - 2006-04-17

TOLERANCES UNLESS OTHERWISE SPECIFIED

ecn no

CREATED

date

06/08/24

Eng

Chr

Appr

P.CRON

H.LEGALLIC

NIRMAL G

SUDHIR V

title

02/02/06

2010-10-14

ANGULAR

0.X

0.3

0.1

0.05

size

LINEAR

0.XX

0.XXX

ECN

- Spec ref

Rev.

LS06-0223 PCR 2006/12/21

LS07-0007 PCR 2007/01/11

I10-0120

I10-0197

2010-05-27

2010-10-14

I10-0197

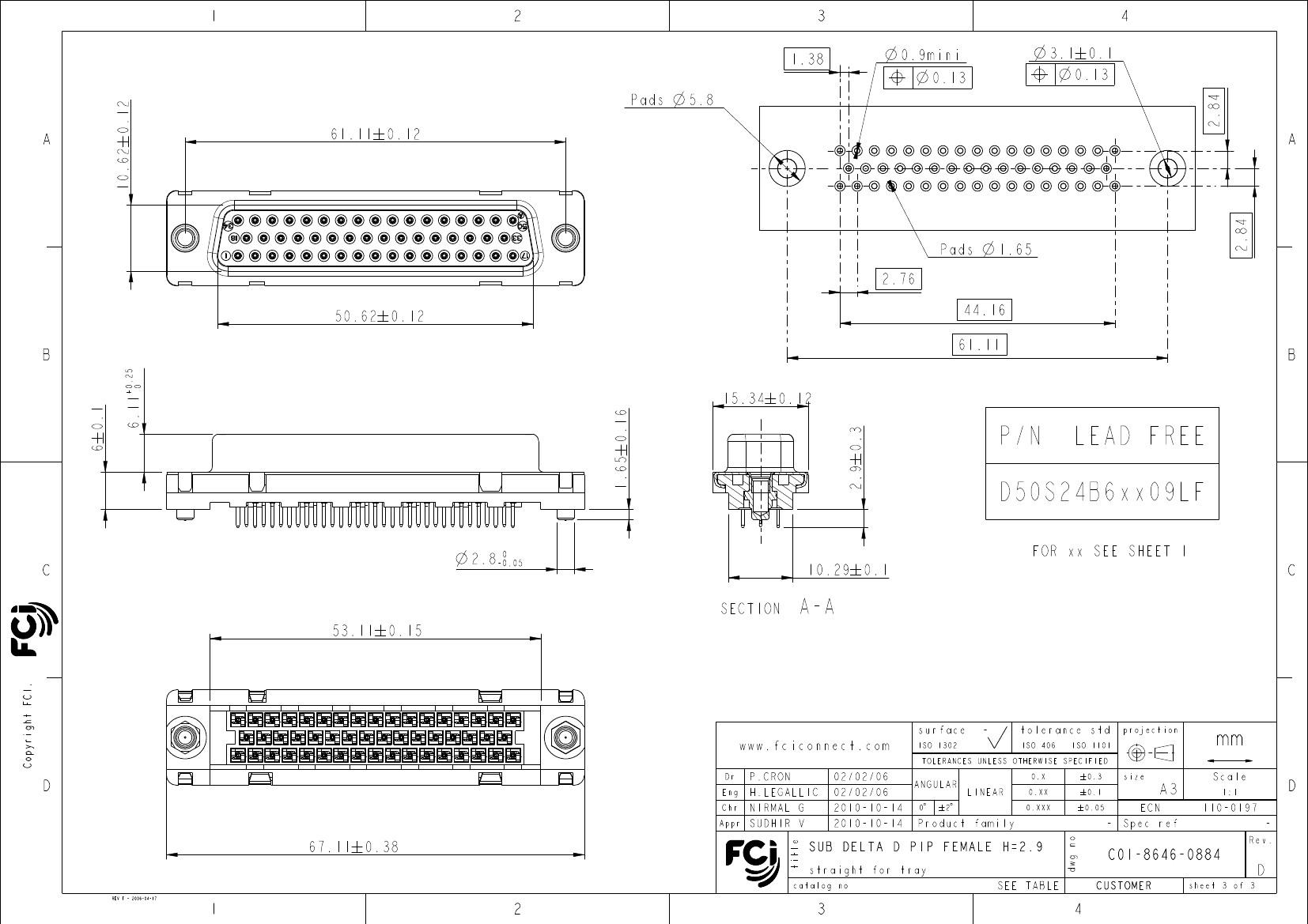

SUB DELTA D PIP FEMALE H=2.9

straight for tray

SEE TABLE

dwg no

Packaging Specification

See GS-14-1061

Product family

C01-8646-0884

CUSTOMER

sheet

1 of 3

catalog no

PDM: Rev:D

STATUS:

Released

Printed: Jan 18, 2011
