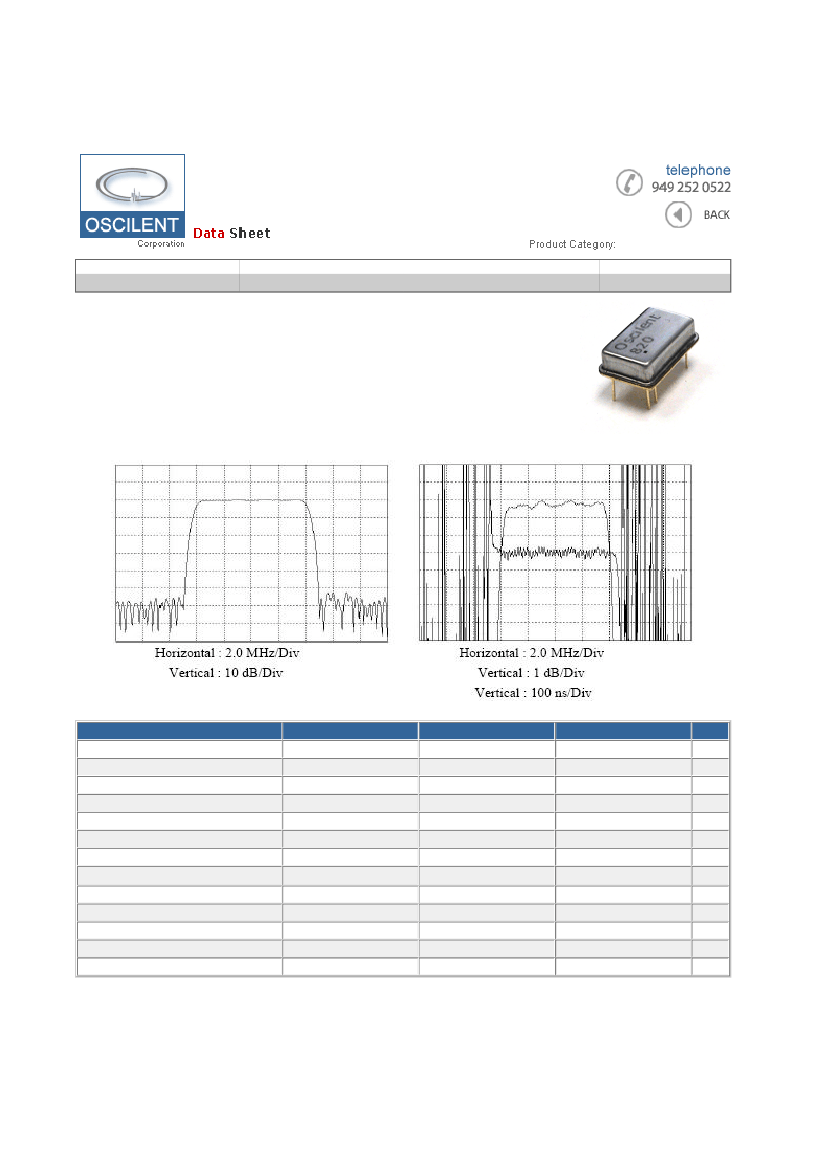

Oscilent Corporation IF SAW Filter | 820-IF87.2M-A
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
820-IF87.2M-A
TYPE :
20.18 x12.58mm
Base Station & Repeater
Apr 18, 2007
87.2 MHz Bandpass Filter
PART NUMBER :
820-IF87.2M-A
Frequency Response
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
Source Impedance (single ended)*
Load Impedance (single ended)*
Bandwidth 1.0 dB
Bandwidth 3.0 dB
Bandwidth 40.0 dB
Passband Ripple (Fo +/- 3MHz)
Group Delay Variation
Absolute Delay
Substrate Material
Ambient Temperature
Ultimate Rejection
Minimum
87.14
-
-
-
-
7.8
-
-
-
-
-
-
50
Typical
87.20
20.5
50
50
7.6
8.0
9.7
0.5
70
2.28
LN
25
55
Maximum
87.26
24.0
-
-
-
-
9.8
1.0
150
-
-
-
-
Units
MHz
dB
ohm
ohm
MHz
MHz
MHz
dB
nsec
µsec
-
°C
dB
*Custom parameters available. Contact Oscilent Sales for discussion.

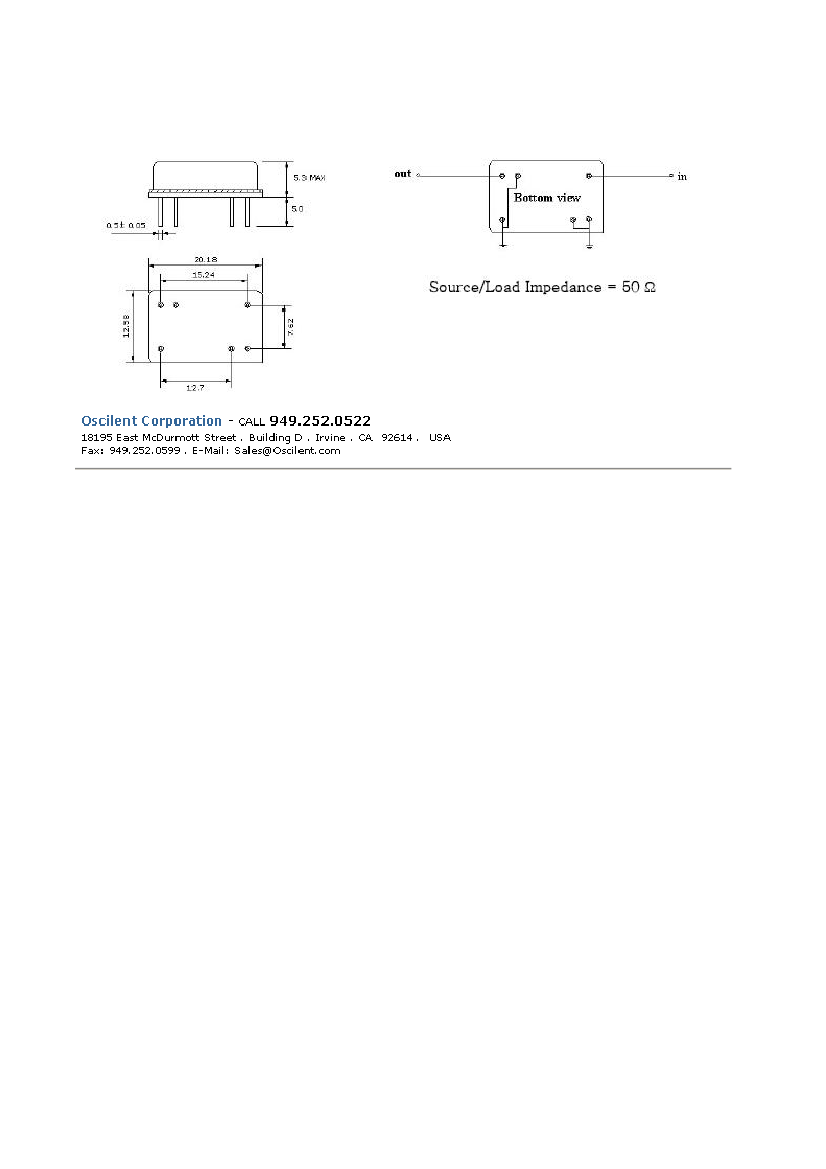

PACKAGE OUTLINE
