Oscilent Corporation IF SAW Filter | 820-IF82.5M-BB
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
820-IF82.5M-BB
TYPE :
20.2 x 12.6mm
IF SAW Filter
Apr 18, 2007
82.5 MHz Bandpass Filter
PART NUMBER :
820-IF82.5M-BB
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Insertion Loss at Fo
Source Impedance (single ended)*
Load Impedance (single ended)*
Bandwidth at -1.0 dB
Bandwidth at -3.0 dB
Bandwidth at -35.0 dB
Bandwidth at -40.0 dB
Amplitude Ripple
Ultimate Rejection
Group Delay Variation
Absolute Delay at Fo
Temperature Coefficient
Minimum
-
-
-
-
18.0
18.4
-
-
-
50
-
-
-
Typical
82.5
24.2
50
50
18.1
18.5
19.9
20.0
0.5
55
35
2.25
-72
Maximum
-
26.0
-
-
-
-
20.0
20.1
1.0
-
60
-
-
Units
MHz
dB
ohm
ohm
MHz
MHz
MHz
MHz
dBp-p
dB
nsec
µsec
ppm/°C
*With Matching Network (Reference Testing Environment Circuit as shown) Modify Impedance Values as necessary.
.
PACKAGE OUTLINE
(mm)
TEST FIXTURE
PIN Descriptions In-1, Out-5, Ground-2,3,4,6

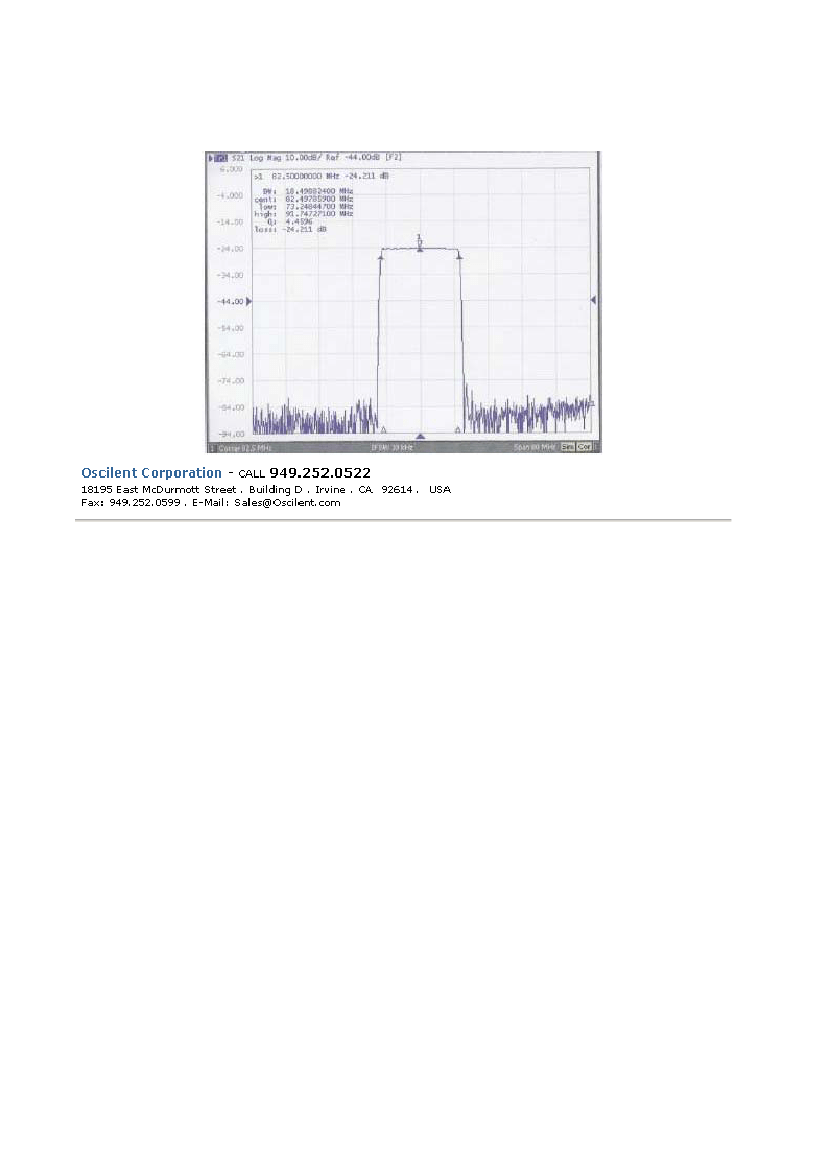

Frequency Responce
