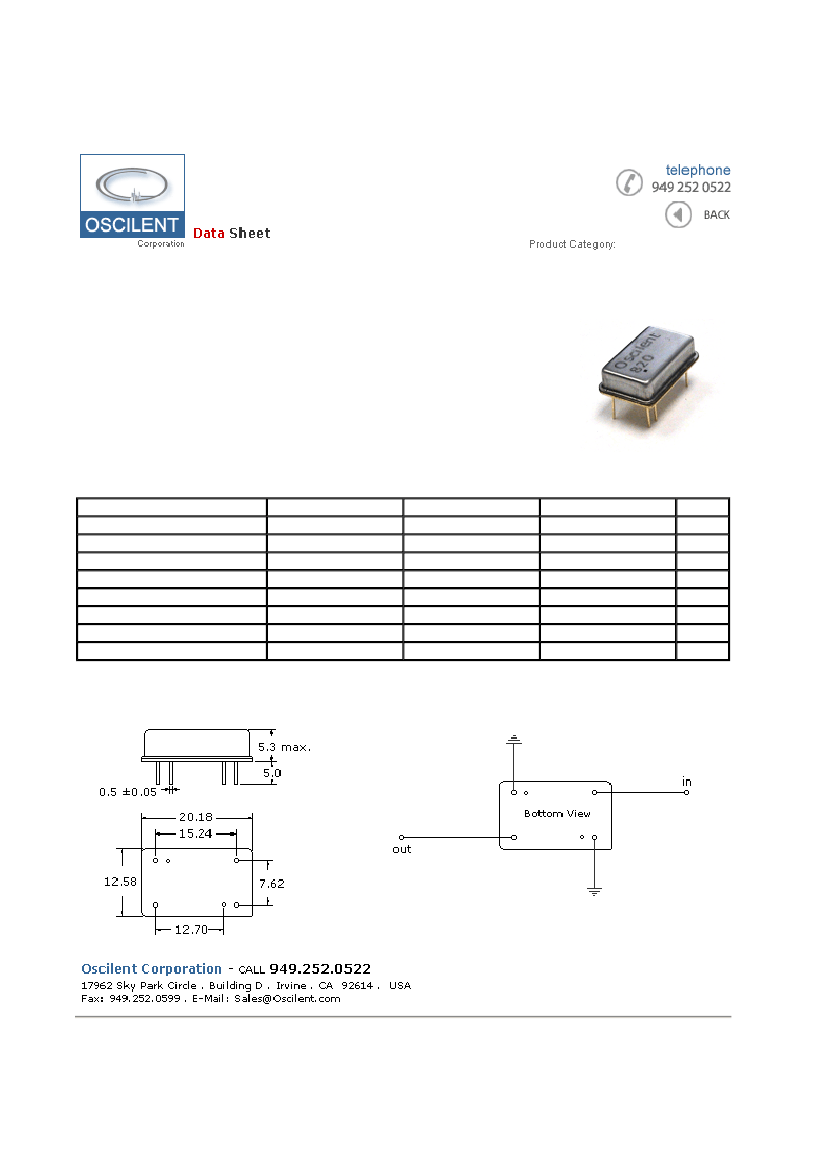

Oscilent Corporation IF SAW Filter | 820-IF76.9M-A
Page 1 of 1
IF SAW Filter
Part Number
Package
Application
Last Modified
820-IF76.9M-A
.
TYPE :
20.2 x 12.6 Thru Hole
Base Station & Repeater
May 24 2003
76.9 MHz Bandpass Filter
3.70 MHz Bandwidth
PART NUMBER :
820-IF76.9M-A
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
3dB Bandwidth
40dB Bandwidth
Passband Ripple
Group Delay Variation
Ultimate Rejection
Substrate Material
Minimum
76.84
-
3.70
-
-
-
-
-
Typical
76.90
27.8
3.85
5.30
0.40
60
50
LN
Maximum
76.96
30.0
-
5.50
1.0
100
-
-
Units
MHz
dB
MHz
MHz
dB
nsec
dB
-
* Custom SAW IF Filters available. Contact Oscilent for assistance.
.
PACKAGE OUTLINE
(mm)
TEST FIXTURE
No Matching Required
Source/Load Impedance = 50 ohms
Part No.:
820-IF76.9M-A
