54012-001 datasheet, PDF - EEWORLD Datasheet

54012-001: DescriptionBoard Connector, 55 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size169KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

54012-001 Overview

Board Connector, 55 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	54012
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	55
UL Flammability Code	94V-0
Base Number Matches	1

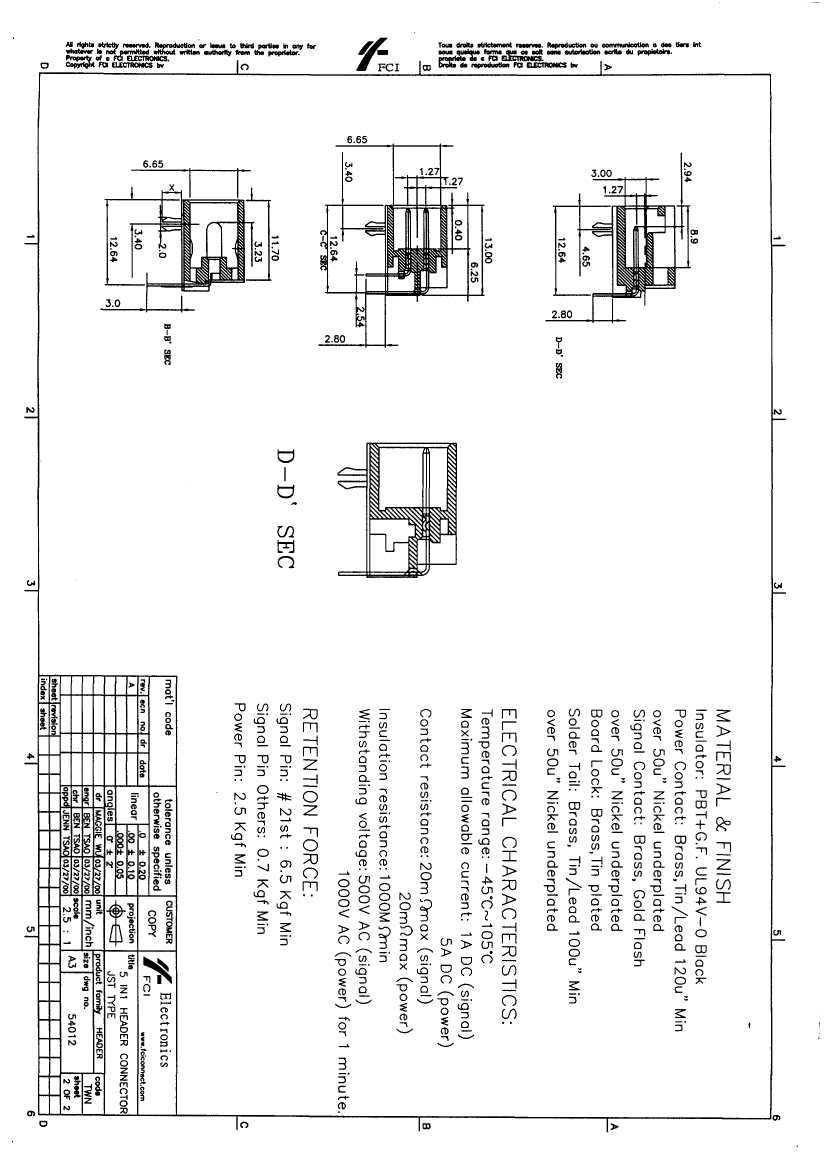

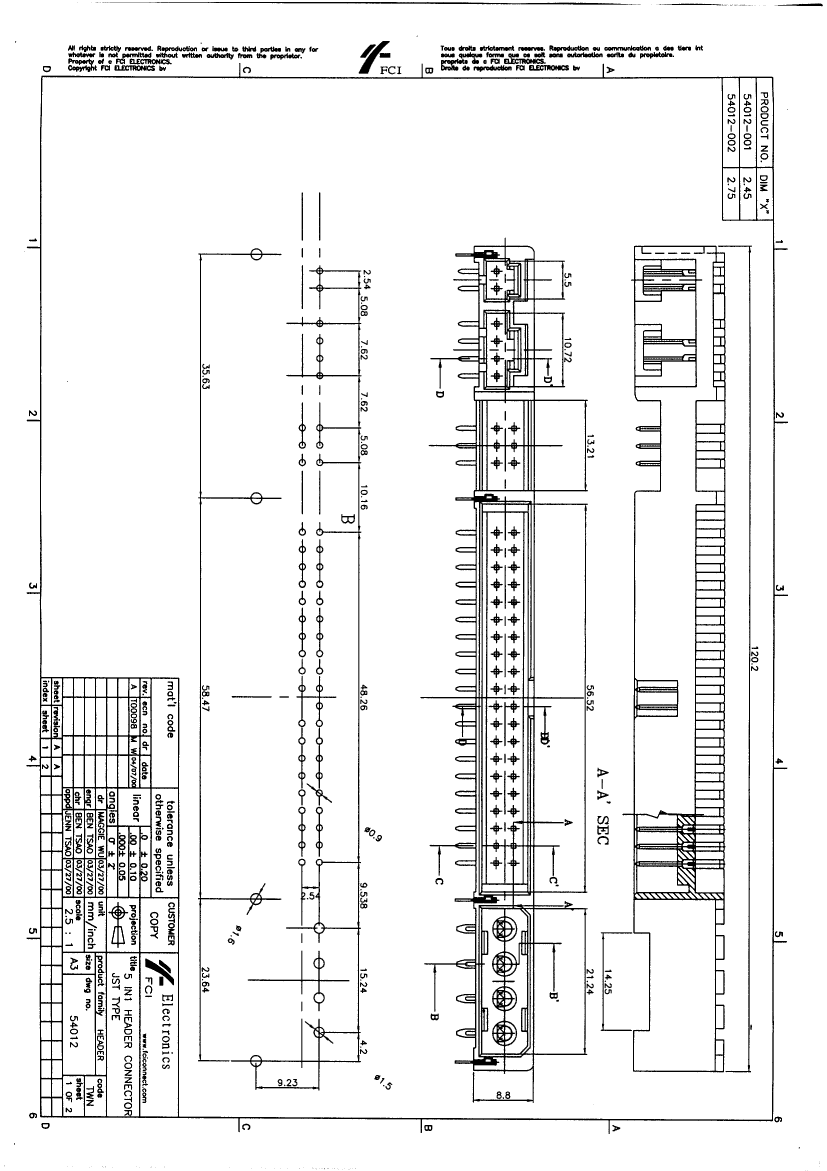

PDM: Rev:A

STATUS:

Released

Printed: Sep 11, 2009

.

	54012-001	54012-002
Description	Board Connector, 55 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 55 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal
Reach Compliance Code	compliant	compliant
Other features	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	54012	54012
Mixed contacts	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	55	55
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
