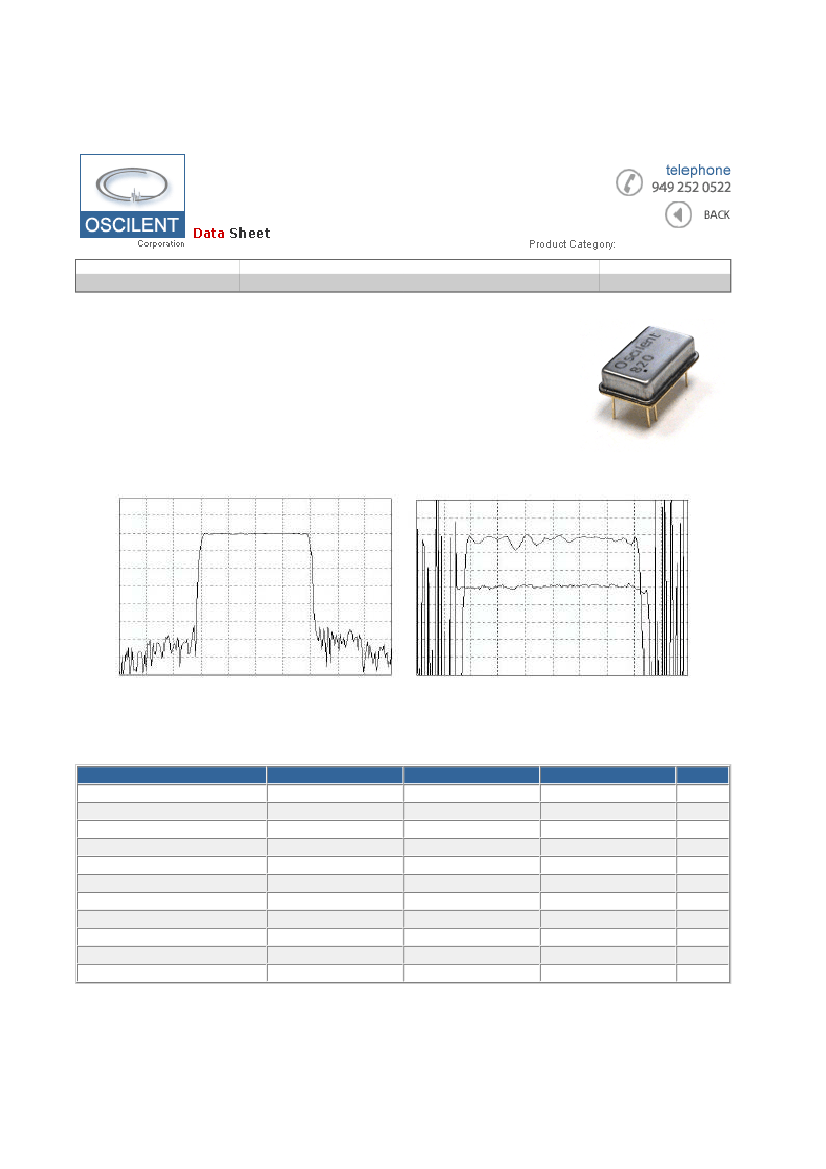

Oscilent Corporation IF SAW Filter | 820-IF70.0M-T

Page 1 of 2

IF SAW Filter

Part Number

Package

Application

Last Modified

820-IF70.0M-T

.

TYPE :

20.2 x 12.6 Thru Hole

Base Station & Repeater

Jan. 01, 2007

70.0 MHz Bandpass Filter

19.5 MHz Bandwidth

PART NUMBER :

820-IF70.0M-T

.

FREQUENCY CHARACTERISTICS

Horizontal : 5.0 MHz/Div

Veritical : 10 dB/Div

Horizontal : 3.0 MHz/Div

Veritical : 1.0 dB/Div

Veritical : 100 ns/Div

.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss

1dB Bandwidth

3dB Bandwidth

40dB Bandwidth

Passband Ripple

Group Delay Variation

Absolute Delay

Ultimate Rejection

Substrate Material

Ambient Temperature

Minimum

69.94

-

19.0

19.5

-

50

-

Typical

70

24.5

19.1

19.57

21.43

0.85

25

1.98

55

LN

25

Maximum

70.06

26.0

-

21.7

1.0

50

-

Units

MHz

dB

MHz

dB

nsec

µsec

dB

-

°C

* Custom SAW IF Filters available. Contact Oscilent for assistance.

.

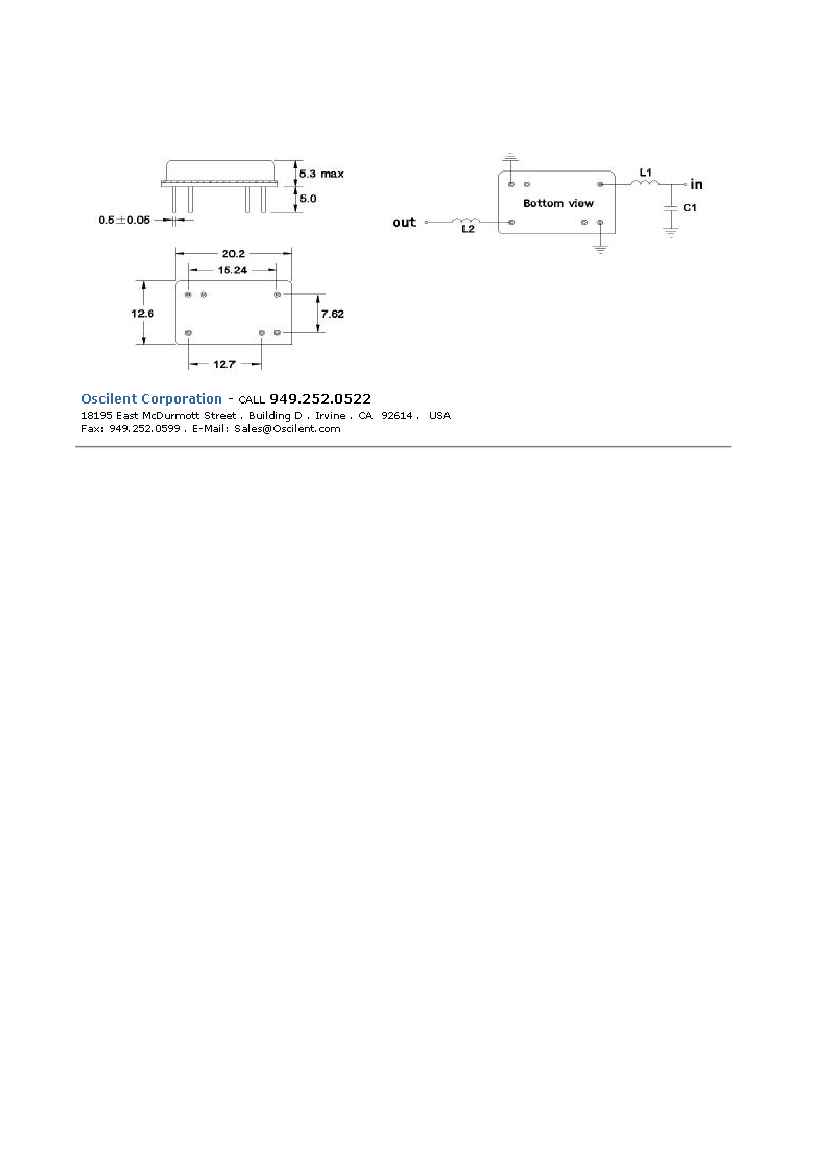

PACKAGE OUTLINE
