820-IF70.0M-U Overview

SAW Filter, 1 Function(s), 70MHz, ROHS COMPLIANT PACKAGE-6

Oscilent Corporation IF SAW Filter | 820-IF70.0M-U
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
820-IF70.0M-U
.
TYPE :
20.2 x 12.6 Thru Hole
Base Station & Repeater
Jan. 01, 2007
70.0 MHz Bandpass Filter
0.59 MHz Bandwidth
PART NUMBER :
820-IF70.0M-U
.

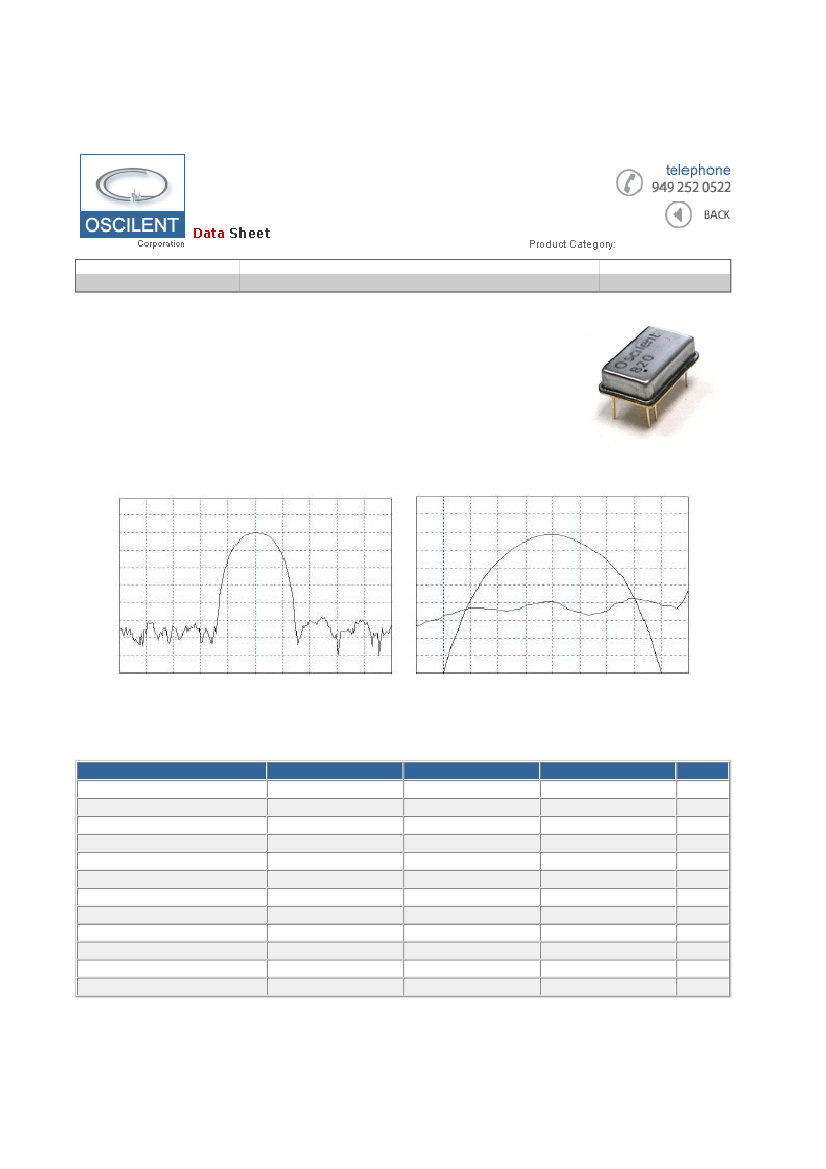

FREQUENCY CHARACTERISTICS
Horizontal : 0.5 MHz/Div
Veritical : 10 dB/Div
Horizontal : 0.1 MHz/Div
Veritical : 1 dB/Div
Veritical : 100 ns/Div
.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Passband Ripple
Phase Linearity
Group Delay Variation
Absolute Delay
Ultimate Rejection
Substrate Material
Ambient Temperature
Minimum
69.97
-
0.30
0.47
-
-
-
-
-
40
-
-
Typical
70.00
13.7
0.39
0.59
1.395
0.8
3.0
300
2.5
50
Quartz
25
Maximum
70.03
15.0
-
-
1.42
1.5
6.0
500
-
-
-
-
Units
MHz
dB
MHz
MHz
MHz
dB
degc
nsec
µsec
dB
-
°C
* Custom SAW IF Filters available. Contact Oscilent for assistance.
.

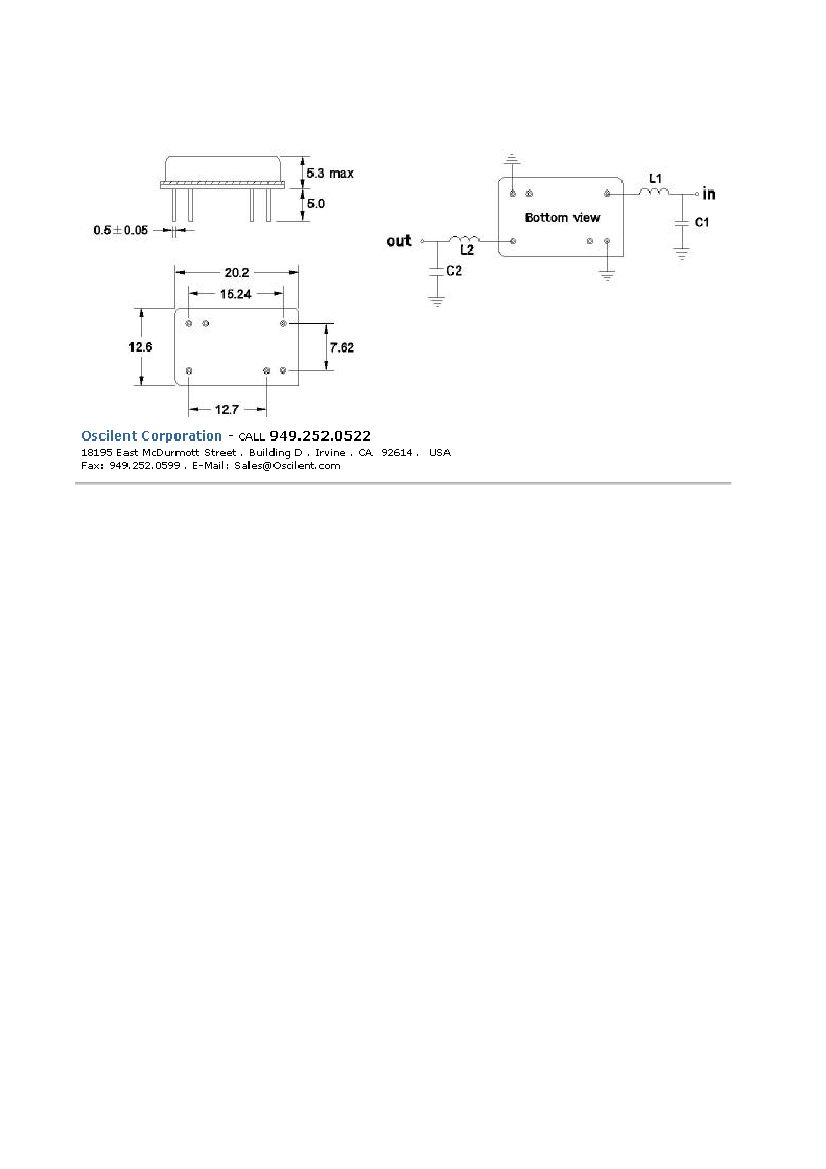

PACKAGE OUTLINE
(mm)
TEST FIXTURE
