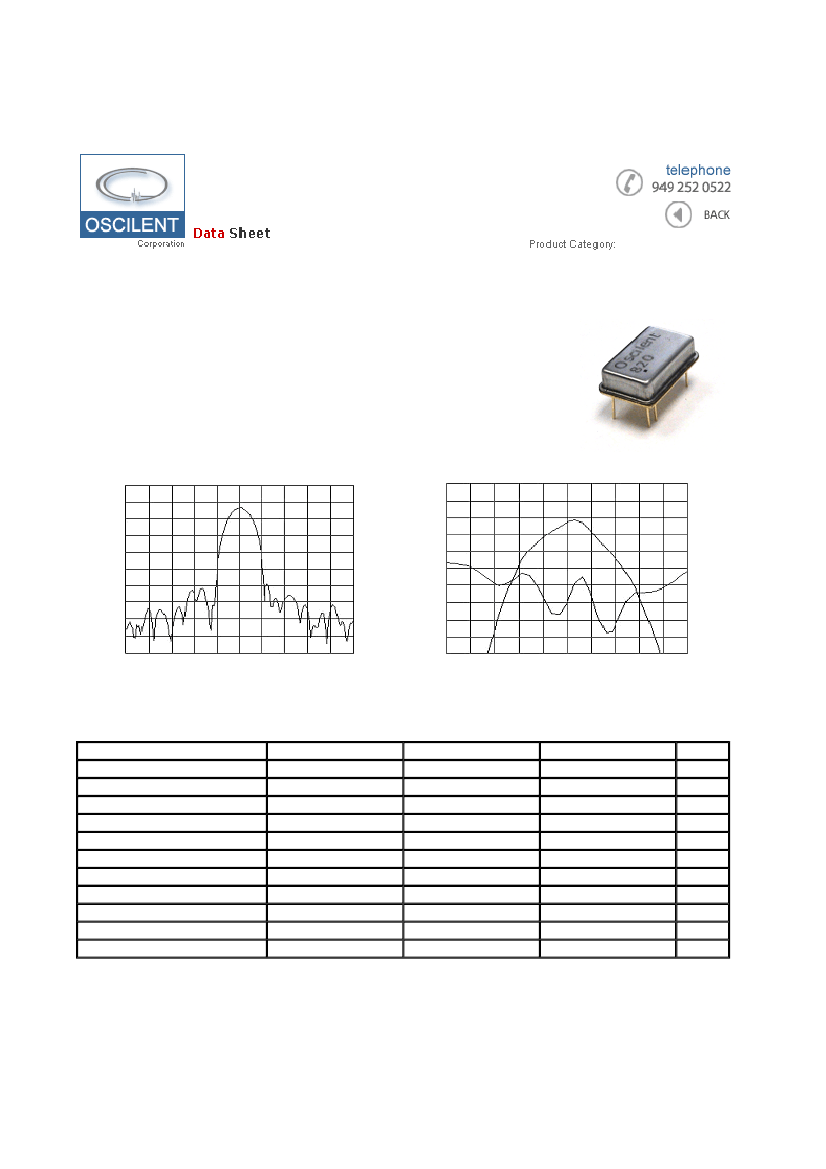

Oscilent Corporation IF SAW Filter | 820-IF70.0M-R
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
820-IF70.0M-R
.
TYPE :
20.2 x 12.6 Thru Hole
Base Station & Repeater
May 02 2003
70.0 MHz Bandpass Filter
300 KHz Bandwidth
PART NUMBER :
820-IF70.0M-R
.
Horizontal : 0.5 MHz/Div
Veritical : 10 dB/Div
Horizontal : 0.08 MHz/Div
Veritical : 1 dB/Div
Veritical : 100 ns/Div
.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Passband Ripple
Group Delay Variation
Absolute Delay
Ultimate Rejection
Substrate Material
Ambient Temperature
Minimum
69.92
-
0.12
0.20
-
-
-
-
45
-
-
Typical
70.00
13.5
0.18
0.34
1.1
1.2
300
2.63
50
Qz
25
Maximum
70.08
16.0
-
-
1.2
1.5
1000
-
-
-
-
Units
MHz
dB
MHz
MHz
MHz
dB
nsec
µsec
dB
-
°C
* Custom SAW IF Filters available. Contact Oscilent for assistance.
.
PACKAGE OUTLINE
(mm)
TEST FIXTURE
http://www.oscilent.com/spec_pages/if_sawfilter/if_820_if70_0r.htm
12/28/2005
