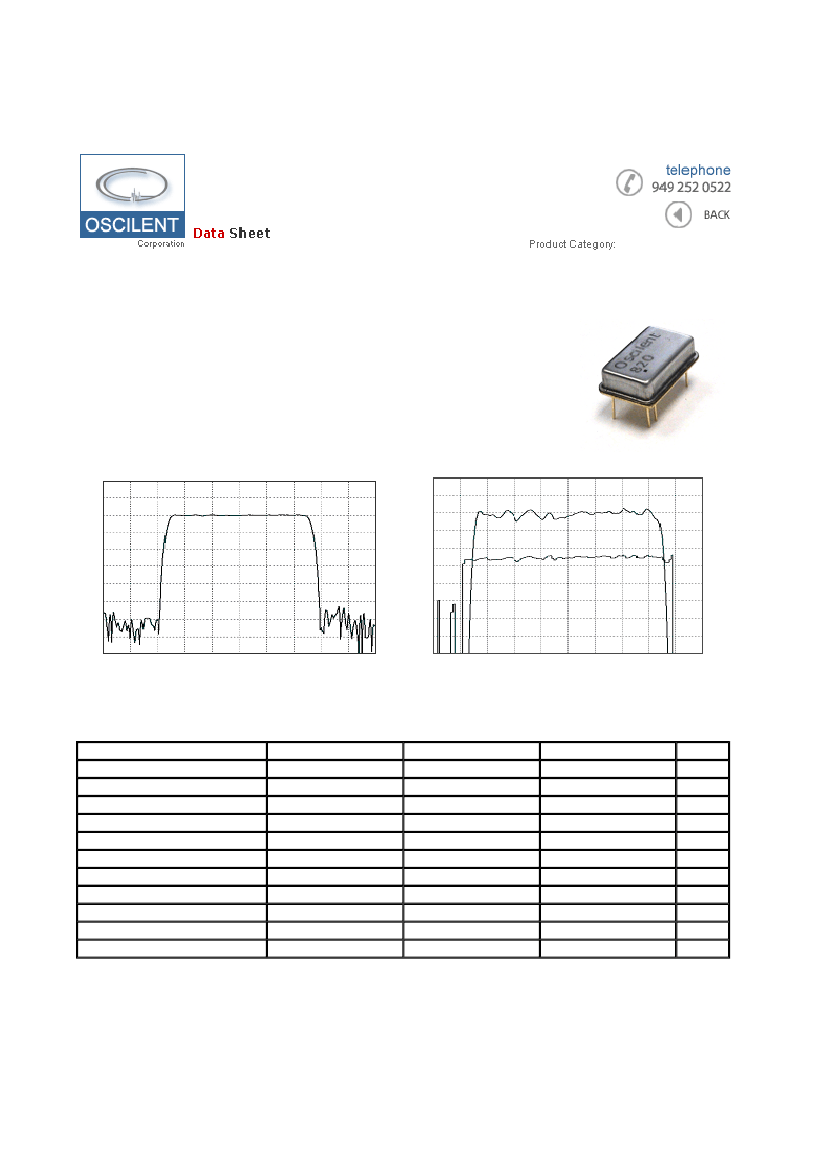

Oscilent Corporation IF SAW Filter | 820-IF70.0M-N

Page 1 of 2

IF SAW Filter

Part Number

Package

Application

Last Modified

820-IF70.0M-N

.

TYPE :

20.2 x 12.6 Thru Hole

Base Station & Repeater

May 02 2003

70.0 MHz Bandpass Filter

25.0 MHz Bandwidth

PART NUMBER :

820-IF70.0M-N

.

Horizontal : 5.0 MHz/Div

Veritical : 10 dB/Div

Horizontal : 3.6 MHz/Div

Veritical : 1 dB/Div

Veritical : 100 ns/Div

.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss

1dB Bandwidth

3dB Bandwidth

40dB Bandwidth

Passband Ripple

Group Delay Variation

Absolute Delay

Ultimate Rejection

Substrate Material

Ambient Temperature

Minimum

69.90

-

24.5

25.0

-

50

-

Typical

70.00

26.6

24.9

25.6

28.6

0.74

45

1.64

55

LN

25

Maximum

70.10

28.0

-

30.0

1.0

70

-

Units

MHz

dB

MHz

dB

nsec

µsec

dB

-

°C

* Custom SAW IF Filters available. Contact Oscilent for assistance.

.

PACKAGE OUTLINE

(mm)

TEST FIXTURE

http://www.oscilent.com/spec_pages/if_sawfilter/if_820_if70_0n.htm

12/28/2005
