820-IF70.0M-HR

Description
SAW Filter, 1 Function(s), 70MHz, ROHS COMPLIANT PACKAGE-4
CategoryAnalog mixed-signal IC    filter
File Size137KB,2 Pages
ManufacturerOscilent
Websitehttp://www.oscilent.com
Download Datasheet View All

820-IF70.0M-HR Overview

SAW Filter, 1 Function(s), 70MHz, ROHS COMPLIANT PACKAGE-4

Oscilent Corporation IF SAW Filter | 820-IF70.0M-HR
Page 1 of 2

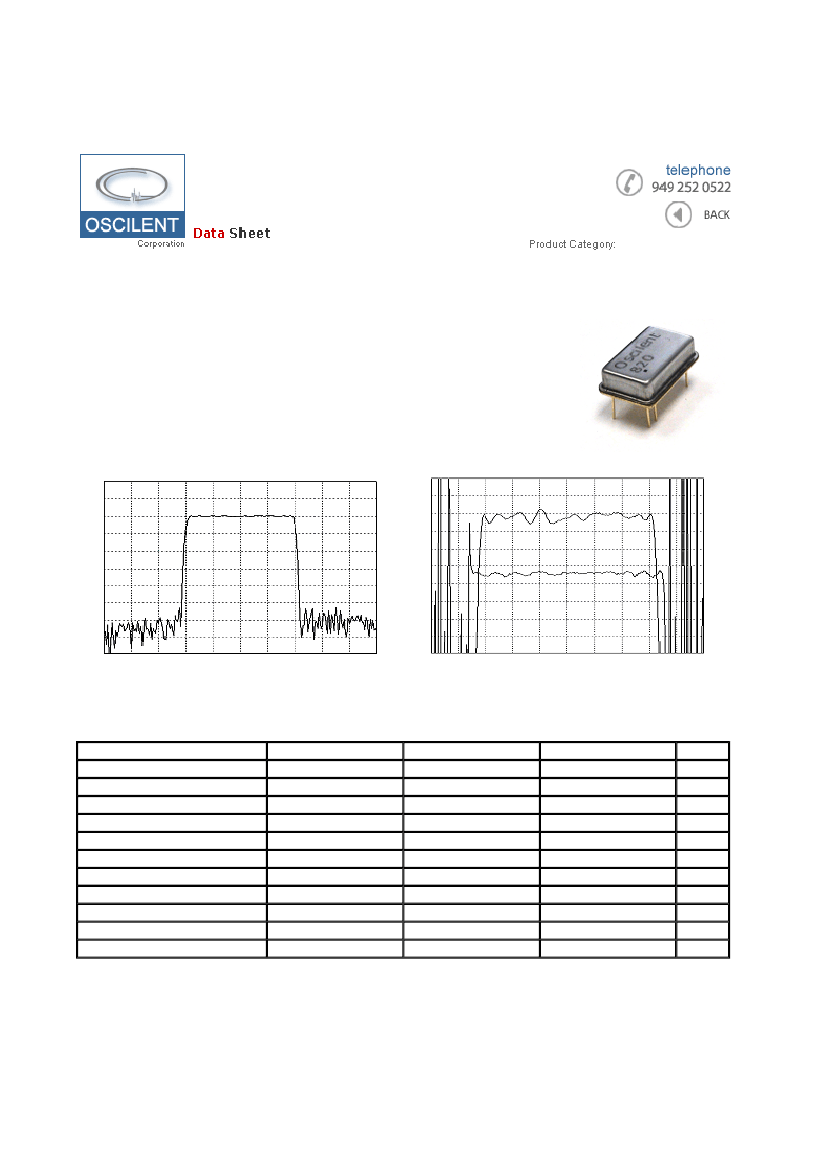

IF SAW Filter
Part Number
Package
Application
Last Modified
820-IF70.0M-HR
.
TYPE :
20.2 x 12.6 Thru Hole
Base Station & Repeater
May 30 2003
70.0 MHz Bandpass Filter
19.5 MHz Bandwidth
PART NUMBER :
820-IF70.0M-HR
.
Horizontal : 5.0 MHz/Div
Veritical : 10 dB/Div
Horizontal : 3.0 MHz/Div
Veritical : 1 dB/Div
Veritical : 100 ns/Div
.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Passband Ripple
Group Delay Variation
Absolute Delay
Ultimate Rejection
Substrate Material
Ambient Temperature
Minimum
69.94
-
19.00
19.50
-
-
-
-
50
-
-
Typical
70.00
24.0
19.15
19.60
21.45
0.8
30
1.98
55
LN
25
Maximum
70.06
26.0
-
-
21.70
1.0
80
-
-
-
-
Units
MHz
dB
MHz
MHz
MHz
dB
nsec
µsec
dB
-
°C
* Custom SAW IF Filters available. Contact Oscilent for assistance.
.
PACKAGE OUTLINE
(mm)
TEST FIXTURE
http://www.oscilent.com/spec_pages/if_sawfilter/if_820_if70_0hr.htm
12/28/2005
