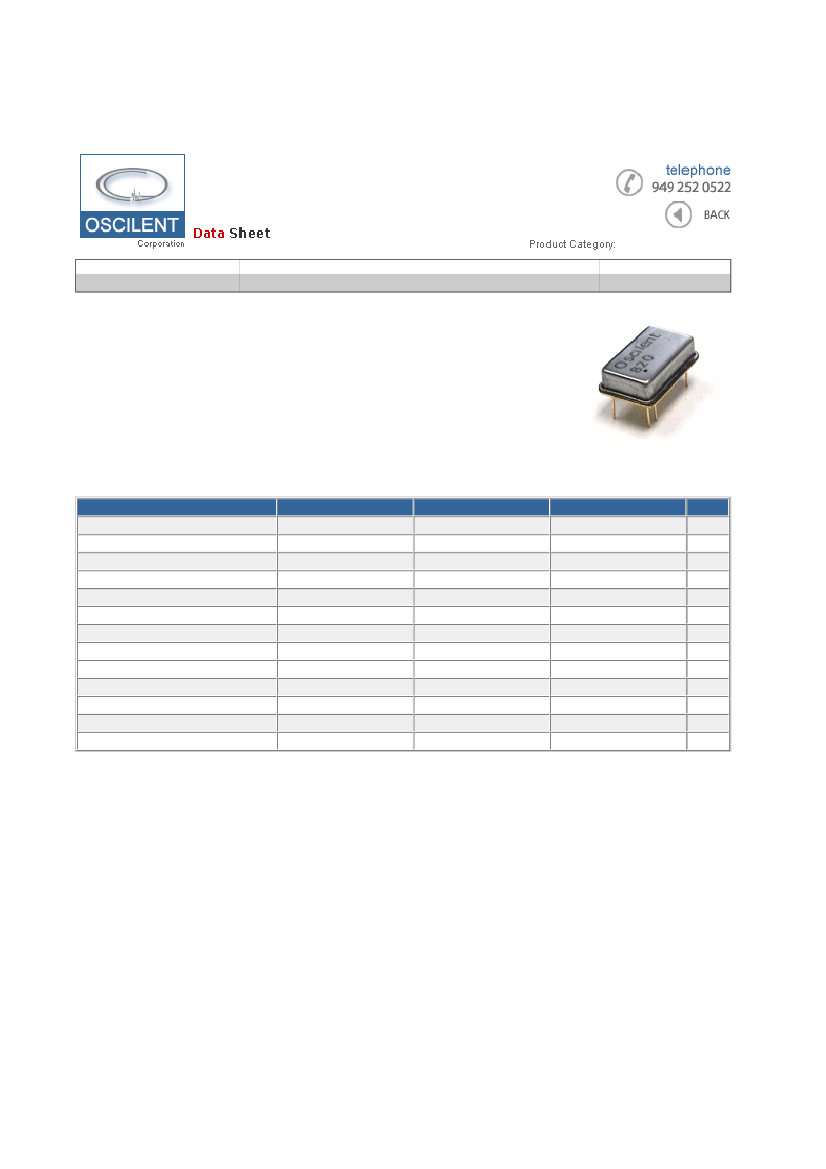

Oscilent Corporation IF SAW Filter | 820-IF70.0M-GB
Page 1 of 3
IF SAW Filter
Part Number
Package
Application
Last Modified
820-IF70.0M-GB
.
TYPE :
20.2 x 12.6mm
IF SAW Filter
Mar. 10, 2007
70MHz SAW Filter
PART NUMBER :
820-IF70.0M-GB
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Insertion Loss at Fo
Source Impedance (single ended)*
Load Impedance (single ended)*
Bandwidth -1.0 dB
Bandwidth -3.0 dB
Bandwidth -40.0 dB
Lower Sidelobe
Upper Sidelobe
Amplitude Ripple (Fo +/-9.75MHz)
Group Delay Variation(Fo +/-9.75MHz)
Absolute Delay @ Fo
Temperature Coefficient
Minimum
69.92
-
-
-
-
20.3
-
-
-
-
-
-
-
Typical
70.0
23.0
50
50
20.10
20.40
21.70
55
55
0.7
60
2.35
-72
Maximum
70.08
24.2
-
-
-
-
21.80
-
-
1.0
100
-
-
Units
MHz
dB
ohm
ohm
MHz
MHz
MHz
dB
dB
dBp-p
nsec
µsec
ppm/°C
*With Matching Network(ref. Testing Enviornment Circut as shown below).
Those impedances could be modified with different impedance values and/or structures, if necessary.
.

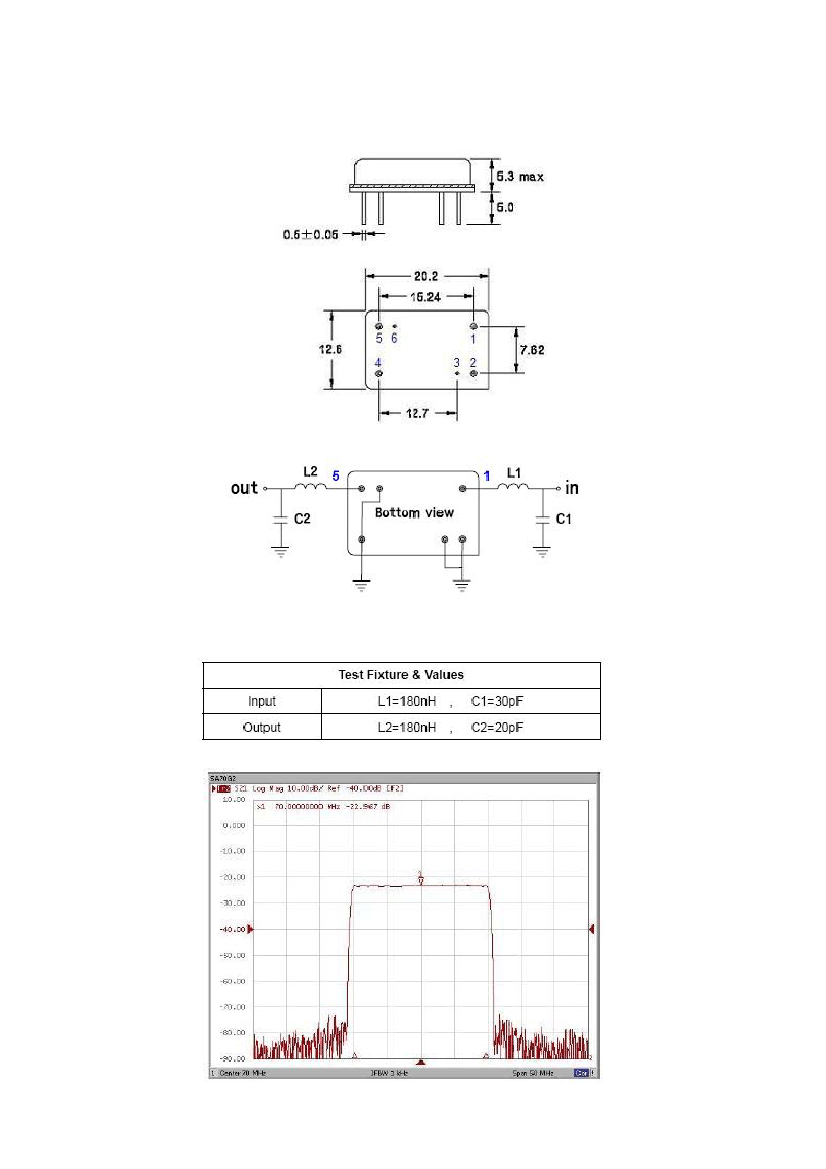

PACKAGE OUTLINE
(mm)
Oscilent Corporation IF SAW Filter | 820-IF70.0M-GB
Page 2 of 3
PIN Descriptions: IN-10, OUT-5, GROUND-2,3,4,6,
TEST FIXTURE
FREQUENCY RESPONSE
