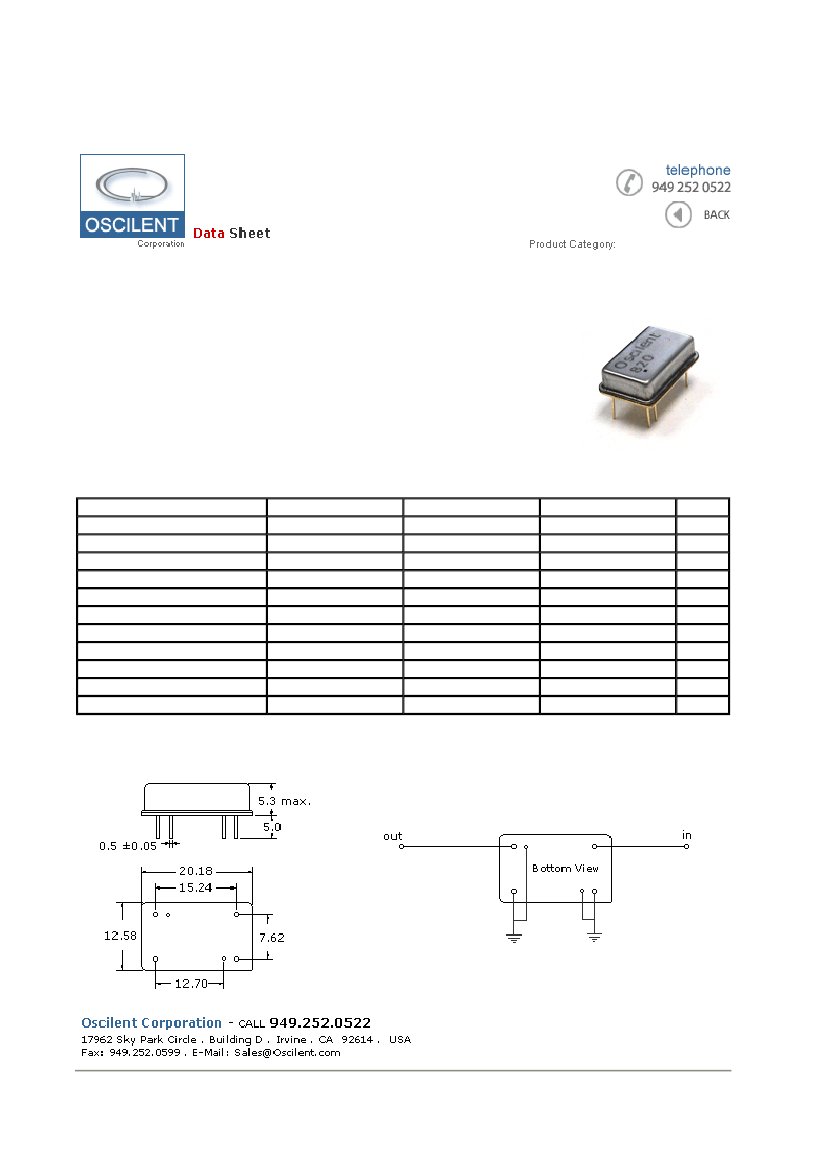

Oscilent Corporation IF SAW Filter | 820-IF70.0M-EA

Page 1 of 2

IF SAW Filter

Part Number

Package

Application

Last Modified

820-IF70.0M-EA

.

TYPE :

20.2 x 12.6 Thru Hole

Base Station & Repeater

May 24 2003

70.0 MHz Bandpass Filter

9.45 MHz Bandwidth

PART NUMBER :

820-IF70.0M-EA

..

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss

1dB Bandwidth

3dB Bandwidth

40dB Bandwidth

50dB Bandwidth

Passband Ripple

Group Delay Variation

Absolute Delay

Ultimate Rejection

Substrate Material

Minimum

69.95

-

9.15

9.45

-

50

-

Typical

70.00

20.5

9.20

9.50

10.82

10.95

0.60

70

2.330

55

LN

Maximum

70.05

22.0

-

10.85

11.00

1.0

150

-

Units

MHz

dB

MHz

dB

nsec

µsec

dB

-

* Custom SAW IF Filters available. Contact Oscilent for assistance.

.

PACKAGE OUTLINE

(mm)

TEST FIXTURE

No Matching Required

Source/Load Impedance = 50 ohms

Part No.:

820-IF70.0M-EA

http://www.oscilent.com/spec_pages/if_sawfilter/if_820_if70_0ea.htm

12/28/2005
