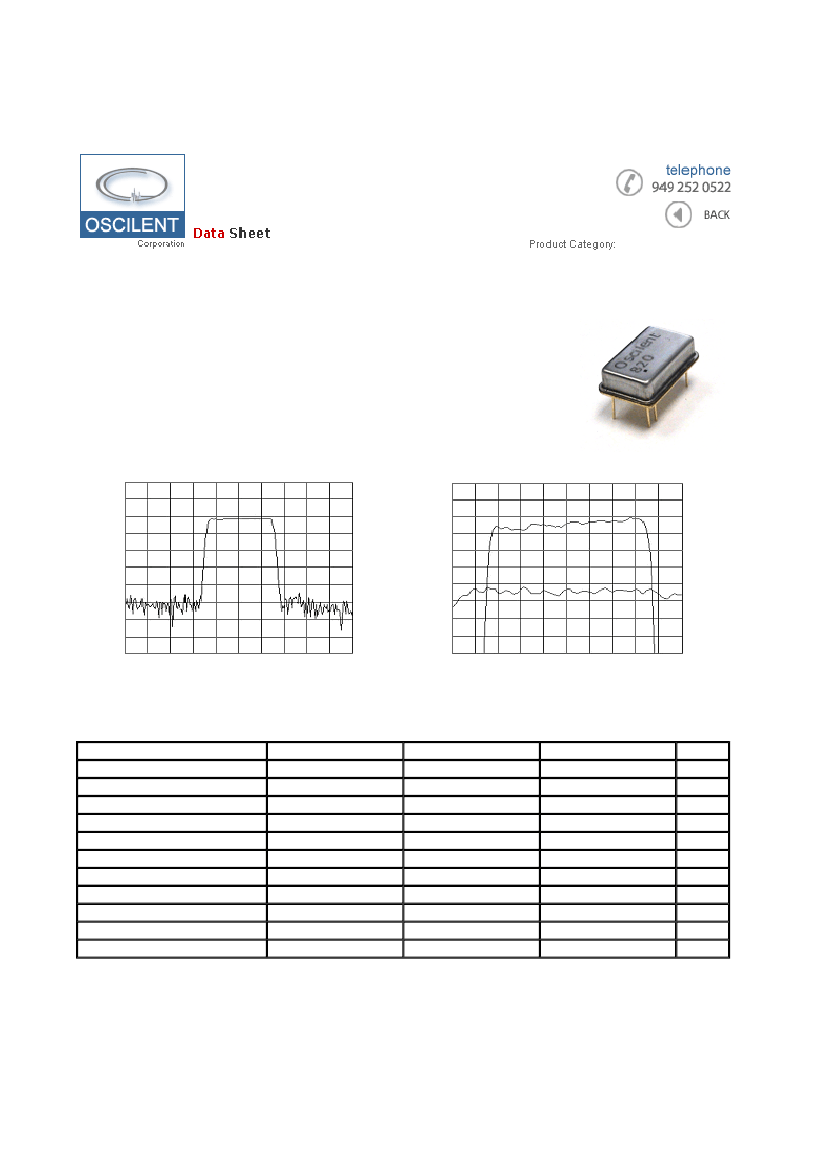

Oscilent Corporation IF SAW Filter | 820-IF70.0M-D
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
820-IF70.0M-D
.
TYPE :
20.2 x 12.6 Thru Hole
Base Station & Repeater
May 02 2003
70.0 MHz Bandpass Filter
5.5 MHz Bandwidth
PART NUMBER :
820-IF70.0M-D
.
Horizontal : 2.0 MHz/Div
Veritical : 10 dB/Div
Horizontal : 0.8 MHz/Div
Veritical : 1 dB/Div
Veritical : 100 ns/Div
.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Passband Ripple
Group Delay Variation
Absolute Delay
Ultimate Rejection
Substrate Material
Ambient Temperature
Minimum
69.94
-
5.3
5.5
-
-
-
-
50
-
-
Typical
70.00
20.5
5.5
5.7
6.6
0.9
150
2.38
55
112 LT
25
Maximum
70.06
23.0
-
-
6.9
1.2
200
-
-
-
-
Units
MHz
dB
MHz
MHz
MHz
dB
nsec
µsec
dB
-
°C
* Custom SAW IF Filters available. Contact Oscilent for assistance.
.
PACKAGE OUTLINE
(mm)
TEST FIXTURE
http://www.oscilent.com/spec_pages/if_sawfilter/if_820_if70_0d.htm
12/28/2005
