820-IF63.0M-A: DescriptionBase Station & Repeater; CategoryAnalog mixed-signal IC filter; File Size123KB，1 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com

Download Datasheet Parametric View All

820-IF63.0M-A Overview

Base Station & Repeater

820-IF63.0M-A Parametric

Parameter Name	Attribute value
Maker	Oscilent
Reach Compliance Code	compli
Center frequency or cutoff frequency (fo/fc)	63 MHz
filter type	SAW FILTER
high	5 mm
input resistance	50 OHM
Maximum insertion loss	15 dB
Manufacturer's serial number	820-IF63.0M-A
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Output impedance	50 OHM Ω
physical size	L20.18XB12.58XH5.3 (mm)/L0.794XB0.495XH0.209 (inch)

Preview

Download Datasheet

View All

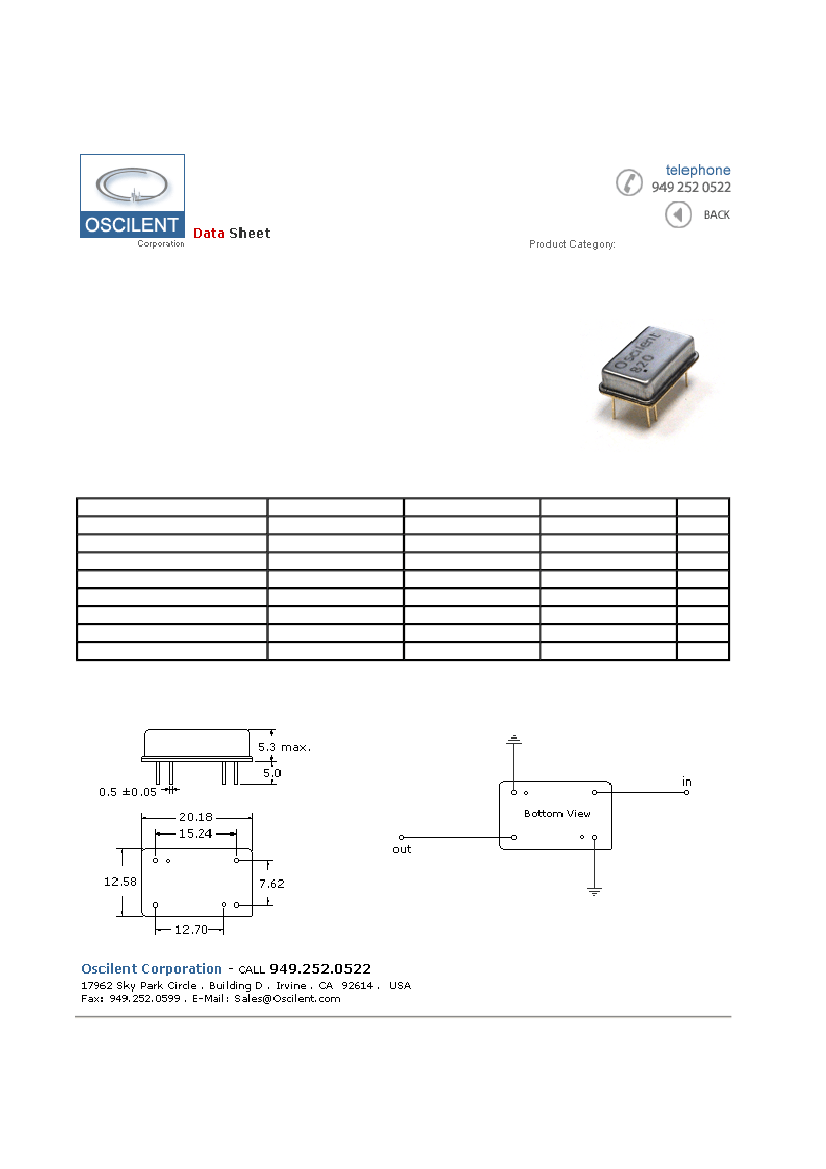

Oscilent Corporation IF SAW Filter | 820-IF63.0M-A

Page 1 of 1

IF SAW Filter

Part Number

Package

Application

Last Modified

820-IF63.0M-A

.

TYPE :

20.2 x 12.6 Thru Hole

Base Station & Repeater

May 24 2003

63.0 MHz Bandpass Filter

3.80 MHz Bandwidth

PART NUMBER :

820-IF63.0M-A

..

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency (Fo)

Insertion Loss at Fo

3dB Bandwidth

40dB Bandwidth

Passband Ripple

Group Delay Variation

Ultimate Attenuation

Substrate Material

Minimum

-

Typical

63.0

14.0

3.80

5.2

0.40

60

50

LN

Maximum

-

15.0

-

0.6

100

-

Units

MHz

dB

MHz

dB

nsec

dB

-

* Custom SAW IF Filters available. Contact Oscilent for assistance.

.

PACKAGE OUTLINE

(mm)

TEST FIXTURE

Source/Load Impedance = 50 ohms

Part No.:

820-IF63.0M-A
