820-IF221.288M-A

Description
Base Station & Repeater
CategoryAnalog mixed-signal IC    filter
File Size252KB,2 Pages
ManufacturerOscilent
Websitehttp://www.oscilent.com
Download Datasheet Parametric View All

820-IF221.288M-A Overview

Base Station & Repeater

820-IF221.288M-A Parametric

Parameter NameAttribute value
MakerOscilent
package instructionSMD, 6 PIN
Reach Compliance Codecompliant
Center frequency or cutoff frequency (fo/fc)221.288 MHz
filter typeSAW FILTER
high5.3 mm
input resistance50 OHM
Maximum insertion loss26 dB
length20.2 mm
Manufacturer's serial number820-IF221.288M-A
Installation typeTHROUGH HOLE MOUNT
Number of functions1
Output impedance50 OHM Ω
physical sizeL20.2XB12.6XH5.3 (mm)/L0.795XB0.496XH0.209 (inch)
IF SAW Filter
Part Number
Package
Application
Last Modified
820-IF221.288M-A
.
TYPE :
20.2 x 12.6 SMD
Base Station & Repeater
Apr 18, 2007
221.288 MHz Bandpass SAW Filter
PART NUMBER :
820-IF221.288M-A
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss at Fo
Source Impedance (single ended)*
Load Impedance (single ended)*
Bandwidth at -1.0 dB
Bandwidth at -3.0 dB
Bandwidth at -10.0 dB
Bandwidth at -40.0 dB
Ultimate Rejection
Amplitude Ripple
Group Delay Variation (smo 0.5%)
Absolute Delay at Fo
Temperature Coefficient
Minimum
-
-
-
-
-
-
-
-
45
-
-
-
-
Typical
221.288
24.5
50
50
6.86
7.08
7.46
8.04
50
0.7
120
2.41
-0.03
Maximum
-
26.0
-
-
-
-
-
-
-
1.2
-
-
-
Units
MHz
dB
ohm
ohm
MHz
MHz
MHz
MHz
dB
dBp-p
nsec
µsec
ppm/°C

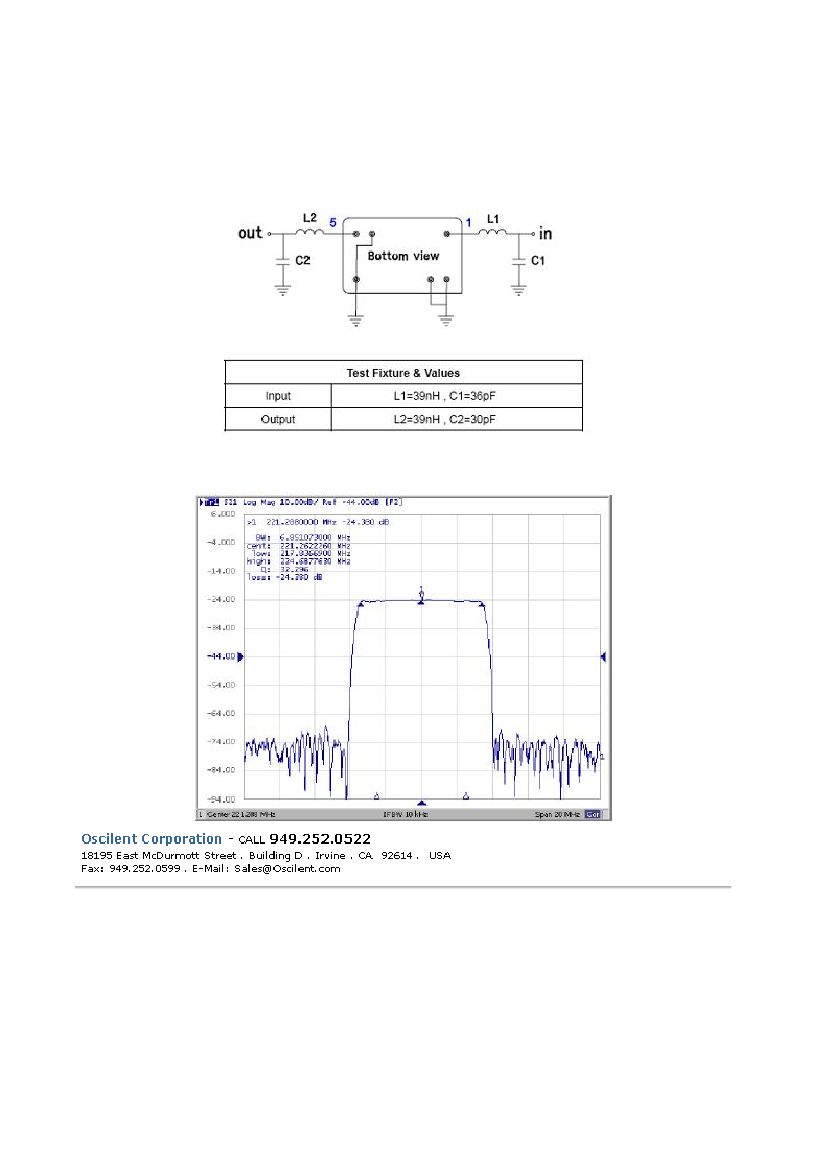

*With Matching Network (Reference Testing Environment Circuit as shown) Modifiy Impedance Values as necessary.
.

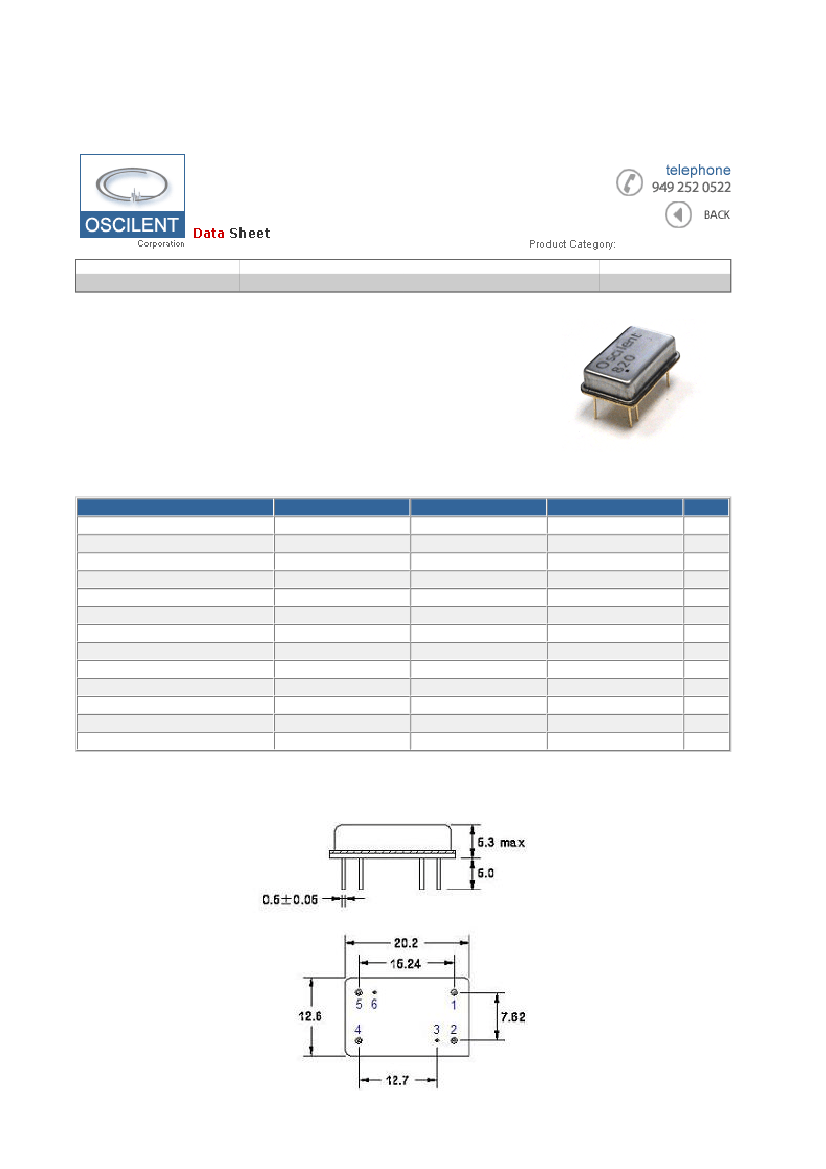

PACKAGE OUTLINE
(mm)
