820-IF140.0M-A: DescriptionBase Station & Repeater; File Size132KB，2 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com

Download Datasheet Compare View All

820-IF140.0M-A Overview

Base Station & Repeater

Preview

Download Datasheet

View All

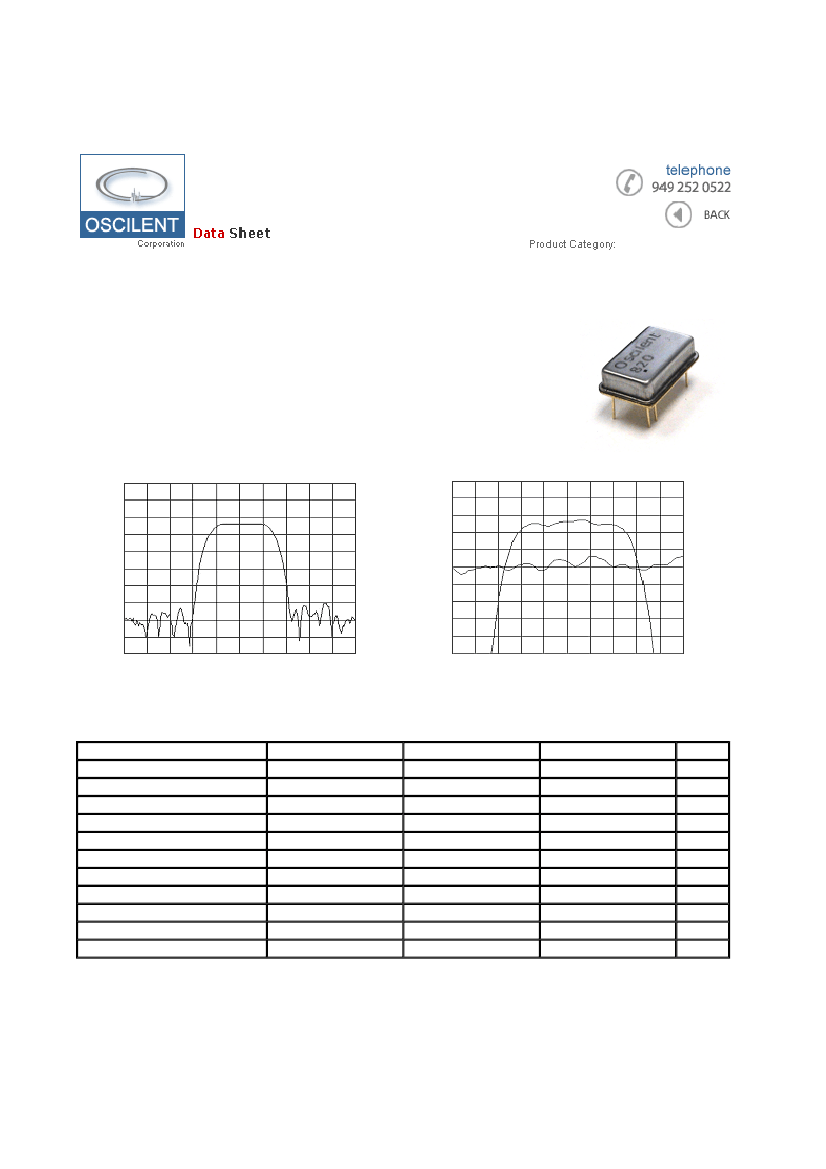

Oscilent Corporation IF SAW Filter | 820-IF70.0M-E

Page 1 of 2

IF SAW Filter

Part Number

Package

Application

Last Modified

820-IF70.0M-E

.

TYPE :

20.2 x 12.6 Thru Hole

Base Station & Repeater

May 02 2003

70.0 MHz Bandpass Filter

1.20 MHz Bandwidth

PART NUMBER :

820-IF70.0M-E

.

Horizontal : 0.5 MHz/Div

Veritical : 10 dB/Div

Horizontal : 0.2 MHz/Div

Veritical : 1 dB/Div

Veritical : 100 ns/Div

.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss

1dB Bandwidth

3dB Bandwidth

40dB Bandwidth

Passband Ripple

Group Delay Variation

Absolute Delay

Ultimate Rejection

Substrate Material

Ambient Temperature

Minimum

69.94

-

0.91

1.1

-

40

-

Typical

70.00

23.0

1.0

1.2

1.95

0.4

100

2.6

50

Quartz

25

Maximum

70.06

28.0

-

2.0

0.8

150

-

Units

MHz

dB

MHz

dB

nsec

µsec

dB

-

°C

* Custom SAW IF Filters available. Contact Oscilent for assistance.

.

PACKAGE OUTLINE

(mm)

TEST FIXTURE

http://www.oscilent.com/spec_pages/if_sawfilter/if_820_if70_0e.htm

12/28/2005
