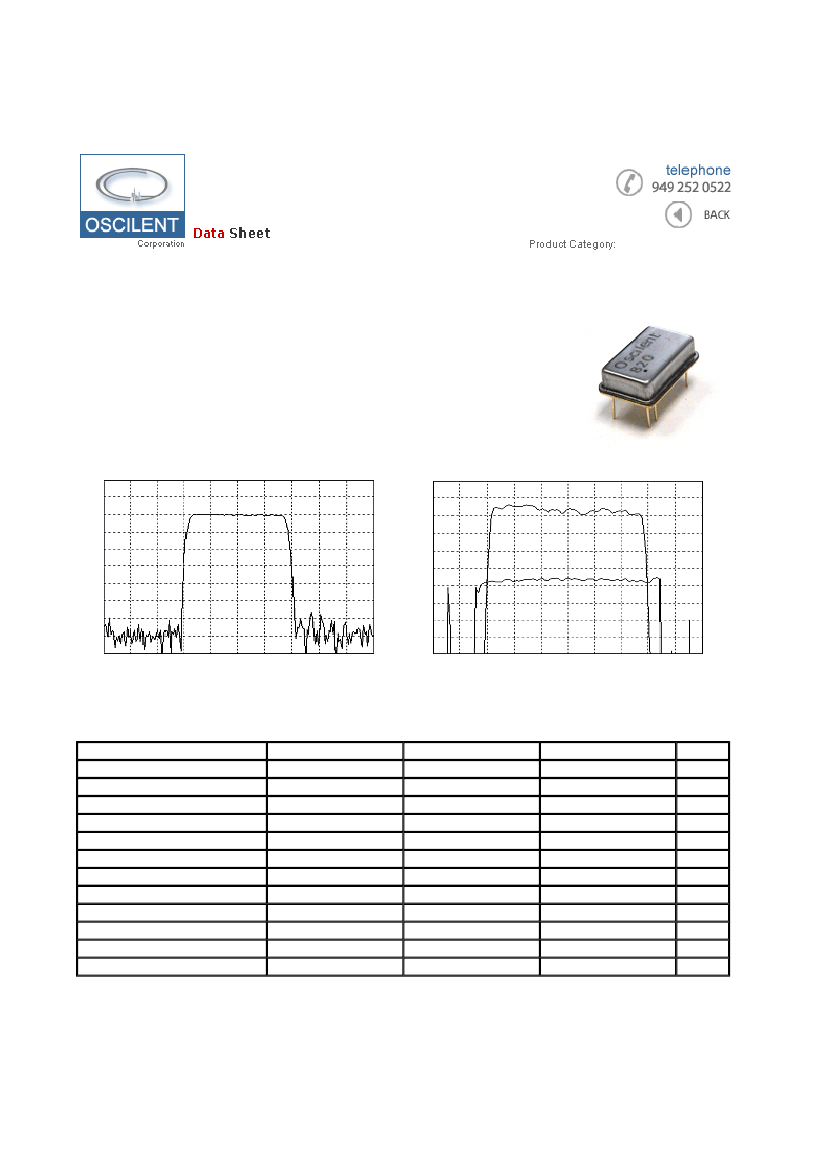

Oscilent Corporation IF SAW Filter | 820-IF140.0M-F

Page 1 of 2

IF SAW Filter

Part Number

Package

Application

Last Modified

820-IF140.0M-F

.

TYPE :

20.2 x 12.6 Thru Hole

Base Station & Repeater

May 30 2003

140.0 MHz Bandpass Filter

34.0 MHz Bandwidth

PART NUMBER :

820-IF140.0M-F

.

Horizontal : 10.0 MHz/Div

Veritical : 10 dB/Div

Horizontal : 6.0 MHz/Div

Veritical : 1 dB/Div

Veritical : 50 ns/Div

.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss

1dB Bandwidth

3dB Bandwidth

40dB Bandwidth

Passband Ripple

Group Delay Variation

Absolute Delay

Ultimate Rejection

Substrate Material

Ambient Temperature

Phase Linearity

Minimum

139.75

-

33.0

34.0

-

50

-

Typical

140.0

22.2

34.0

35.4

40.4

0.65

20

0.96

60

LN

25

7.5

Maximum

140.25

24.0

-

42.0

1.0

50

-

10.0

Units

MHz

dB

MHz

dB

nsec

µsec

dB

-

°C

degc

* Custom SAW IF Filters available. Contact Oscilent for assistance.

.

PACKAGE OUTLINE

(mm)

TEST FIXTURE

http://www.oscilent.com/spec_pages/if_sawfilter/if_820_if140_0f.htm

12/28/2005
