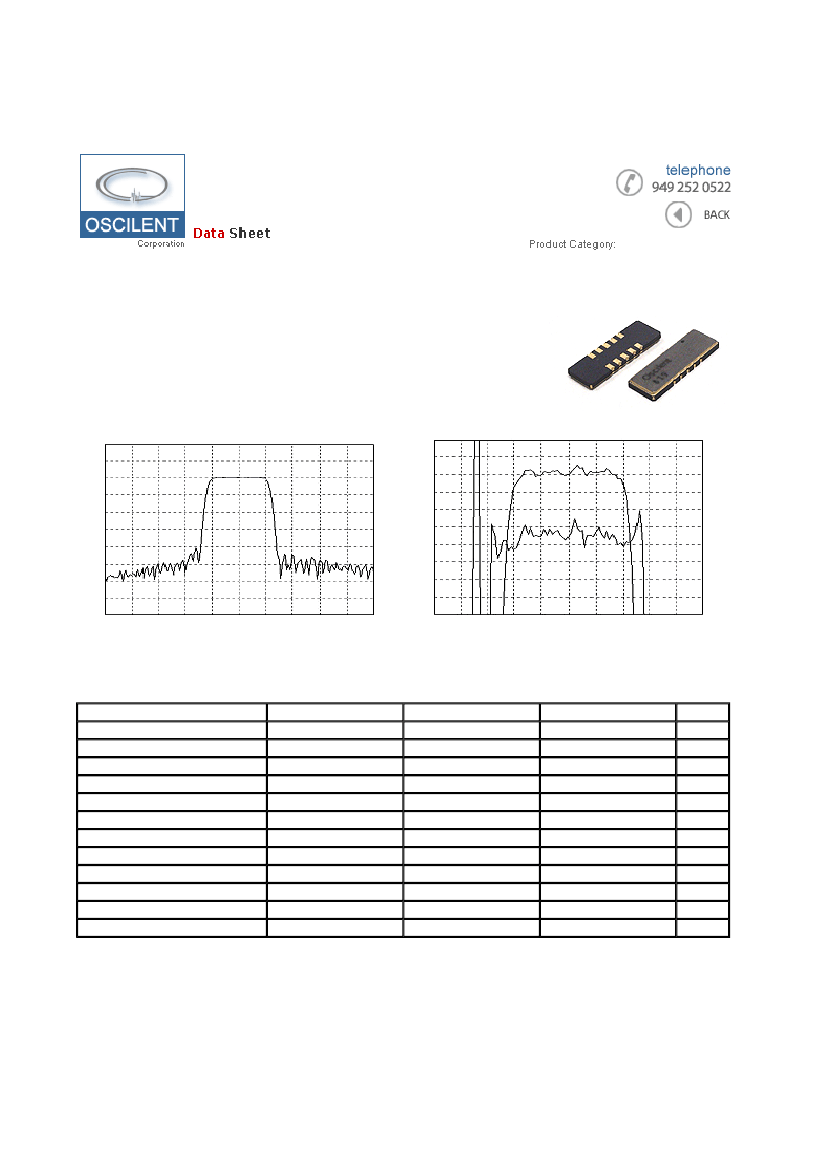

Oscilent Corporation IF SAW Filter | 819-IF190.0M-C

Page 1 of 2

IF SAW Filter

Part Number

Package

Application

Last Modified

819-IF190.0M-C

.

TYPE :

19 x 6.5 SMD

Base Station, Repeater, HDR, IMT-2000

May 22 2003

190.0 MHz Bandpass Filter

4.30 MHz Bandwidth

PART NUMBER :

819-IF190.0M-C

.

Horizontal : 2.0 MHz/Div

Veritical : 10 dB/Div

Horizontal : 1.0 MHz/Div

Veritical : 1 dB/Div

Veritical : 100 ns/Div

.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss

1dB Bandwidth

3dB Bandwidth

40dB Bandwidth

Passband Ripple

Group Delay Variation

Absolute Delay

Ultimate Rejection

Substrate Material

Ambient Temperature

Phase Linearity

Minimum

189.95

-

4.0

4.3

-

40

-

Typical

190.00

21.0

4.07

4.43

5.70

0.70

160

2.16

50

Quartz

25

4.9

Maximum

190.05

23.0

-

5.80

1.0

200

-

7.0

Units

MHz

dB

MHz

dB

nsec

µsec

dB

-

°C

deg

* Custom SAW IF Filters available. Contact Oscilent for assistance.

.

PACKAGE OUTLINE

(mm)

TEST FIXTURE

http://www.oscilent.com/spec_pages/if_sawfilter/if_819_if190_0c.htm
