819-IF70.0M-RA Overview

Bandpass Filter

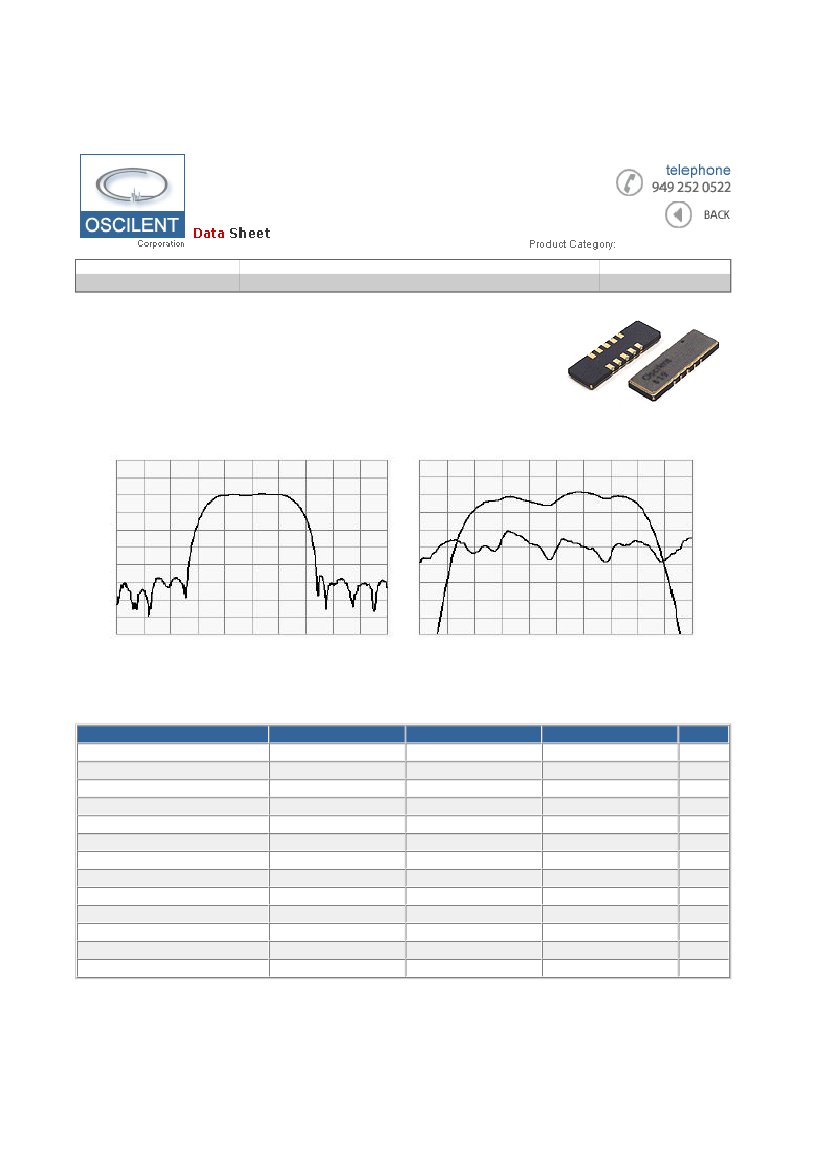

Oscilent Corporation IF SAW Filter | 819-IF70.0M-RA
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
819-IF70.0M-RA
.
TYPE :
19 x 6.5 SMD
Bandpass Filter
Jan. 01, 2007
70.0 MHz Bandpass Filter
1.26 MHz Bandwidth
PART NUMBER :
819-IF70.0M-RA
.
FREQUENCY CHARACTERISTICS
Horizontal : 0.5 MHz/Div
Veritical : 10 dB/Div
Horizontal : 0.2 MHz/Div
Veritical : 1 dB/Div
Veritical : 100 ns/Div
.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
1dB Bandwidth
Attenuation at Fo+/-1.25MHz
Attenuation at Fo+/-1.70MHz
40dB Bandwidth
Passband Ripple at Fo+/-0.5MHz
Phase Linearity
Group Delay Variation
Absolute Delay
Ultimate Rejection
Substrate Material
Ambient Temperature
Minimum
69.97
-
1.26
40
40
-
-
-
-
-
40
-
-
Typical
70.0
20.0
1.30
45
45
2.36
0.8
1.54
250
2.6
50
Quartz
25
Maximum
70.03
22.0
-
-
-
2.36
1.0
2.00
500
-
-
-
-
Units
MHz
dB
MHz
MHz
dB
MHz
dB
deg/rms
nsec
µsec
dB
-
°C
* Custom SAW IF Filters available. Contact Oscilent for assistance.
.

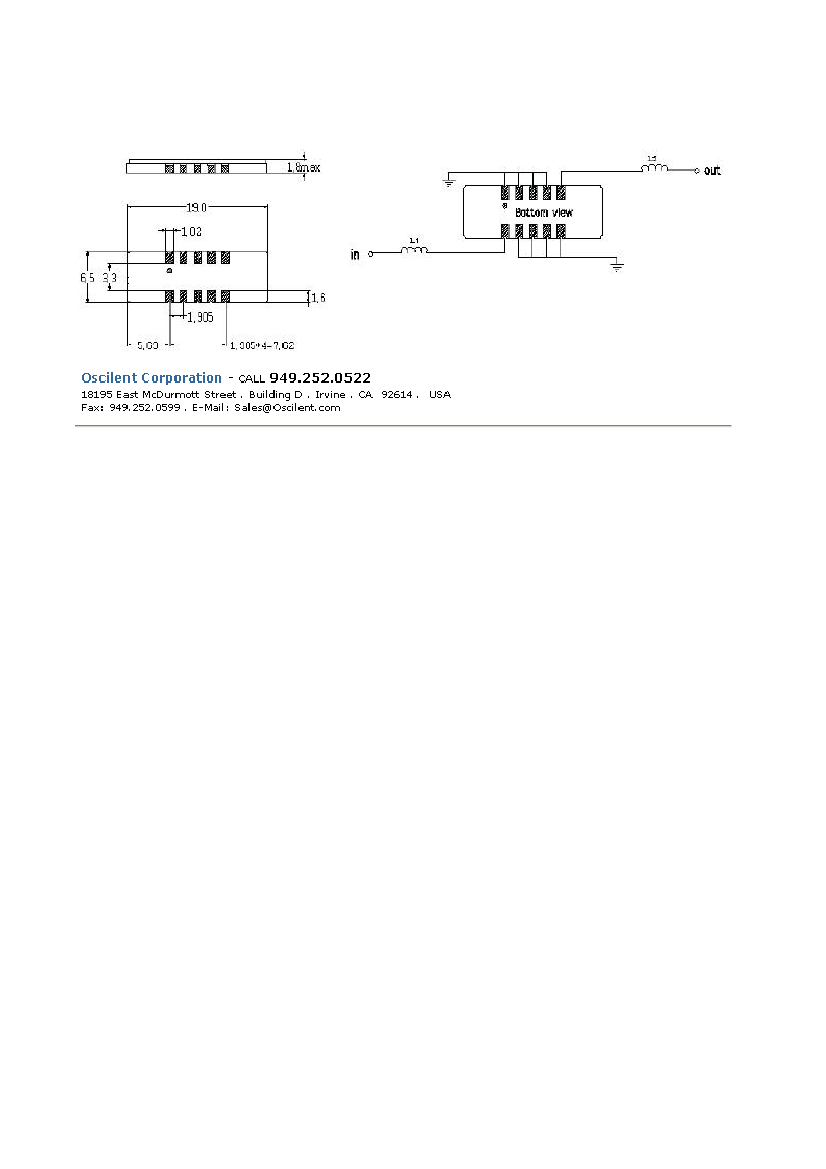

PACKAGE OUTLINE
(mm)
TEST FIXTURE
