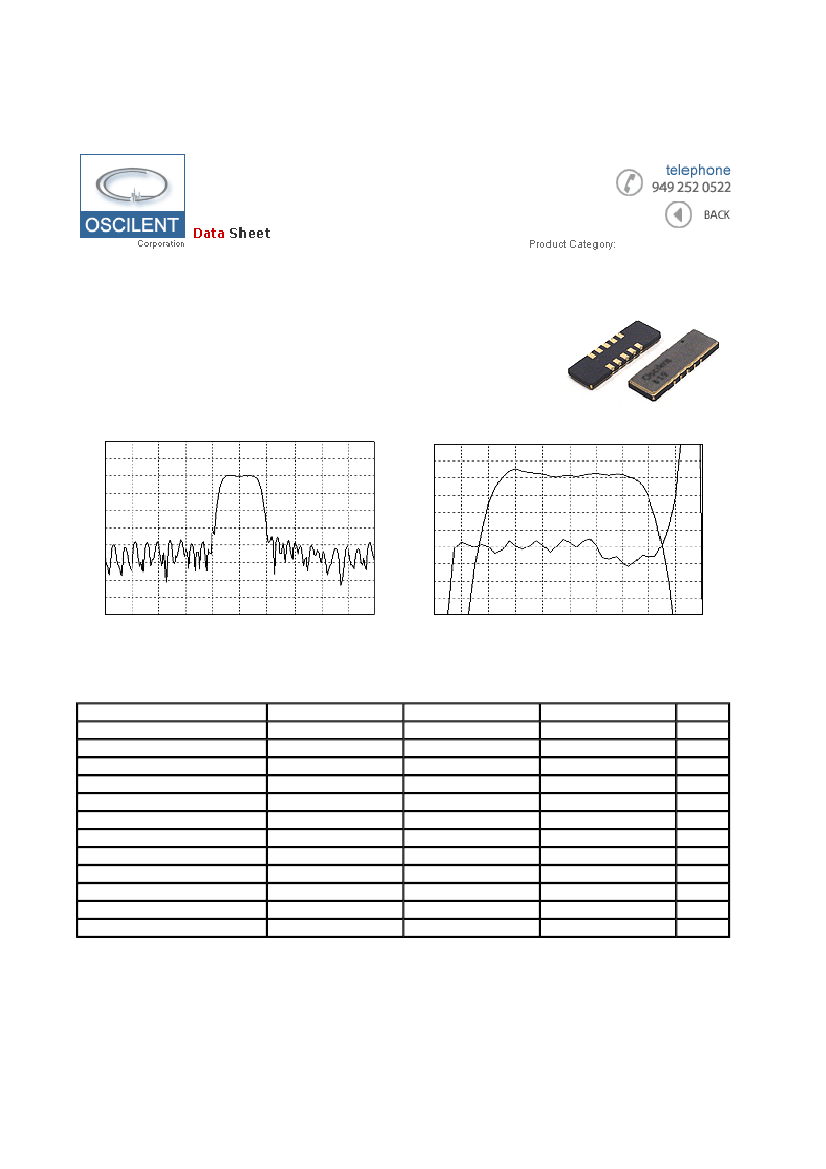

Oscilent Corporation IF SAW Filter | 819-IF190.0M-A

Page 1 of 2

IF SAW Filter

Part Number

Package

Application

Last Modified

819-IF190.0M-A

.

TYPE :

19 x 6.5 SMD

Base Station, Repeater, HDR, IMT-2000

May 22 2003

190.0 MHz Bandpass Filter

1.22 MHz Bandwidth

PART NUMBER :

819-IF190.0M-A

.

Horizontal : 1.0 MHz/Div

Veritical : 10 dB/Div

Horizontal : 0.2 MHz/Div

Veritical : 1 dB/Div

Veritical : 100 ns/Div

.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss

1dB Bandwidth

3dB Bandwidth

25dB Bandwidth

33dB Bandwidth

Passband Ripple

Group Delay Variation

Ultimate Rejection

Substrate Material

Ambient Temperature

Phase Linearity

Minimum

189.95

-

1.10

1.22

-

32

-

Typical

190.00

19.0

1.14

1.30

1.80

1.91

0.50

120

38

Quartz

25

3.0

Maximum

190.05

22.0

-

1.85

1.96

1.0

200

-

7.0

Units

MHz

dB

MHz

dB

nsec

dB

-

°C

deg

* Custom SAW IF Filters available. Contact Oscilent for assistance.

.
