815-IF44.0M-A

Description
Digital Cable TV
CategoryAnalog mixed-signal IC    filter
File Size122KB,1 Pages
ManufacturerOscilent
Websitehttp://www.oscilent.com
Download Datasheet Parametric View All

815-IF44.0M-A Overview

Digital Cable TV

815-IF44.0M-A Parametric

Parameter NameAttribute value
MakerOscilent
Reach Compliance Codecompli
Center frequency or cutoff frequency (fo/fc)44 MHz
filter typeSAW FILTER
high3 mm
input resistance50 OHM
Maximum insertion loss17 dB
Manufacturer's serial number815-IF44.0M-A
Installation typeTHROUGH HOLE MOUNT
Number of functions1
Output impedance2000 OHM//3 pF Ω
physical sizeL15.9XB5.9XH3.2 (mm)/L0.626XB0.232XH0.126 (inch)
Oscilent Corporation IF SAW Filter | 815-IF44.0M-A
Page 1 of 1
IF SAW Filter
Part Number
Package
Application
Last Modified
815-IF44.0M-A
.
TYPE :
15.9 x 5.9 Thru Hole
Digital Cable TV
May 22 2003
44.00 MHz Bandpass Filter
6.2 MHz Bandwidth
PART NUMBER :
815-IF44.0M-A
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
3 dB Bandwidth
35 dB Bandwidth
Lower Sidelobe (35.0 ~ 39.90 MHz)
Upper Sidelobe (48.1 ~ 50.0 MHz)
Upper Sidelobe (50.0 ~ 55.0 MHz)
Passband Ripple
Ambient Temperature
Minimum
-
-
6.15
-
40
35
38
-
-
Typical
44.00
16.0
6.2
7.8
43
38
42
0.6
25
Maximum
-
17.0
-
8.0
-
-
-
1.0
-
Units
MHz
dB
MHz
MHz
dB
dB
dB
dB
°C
* Custom SAW IF Filters available. Contact Oscilent for assistance.
.

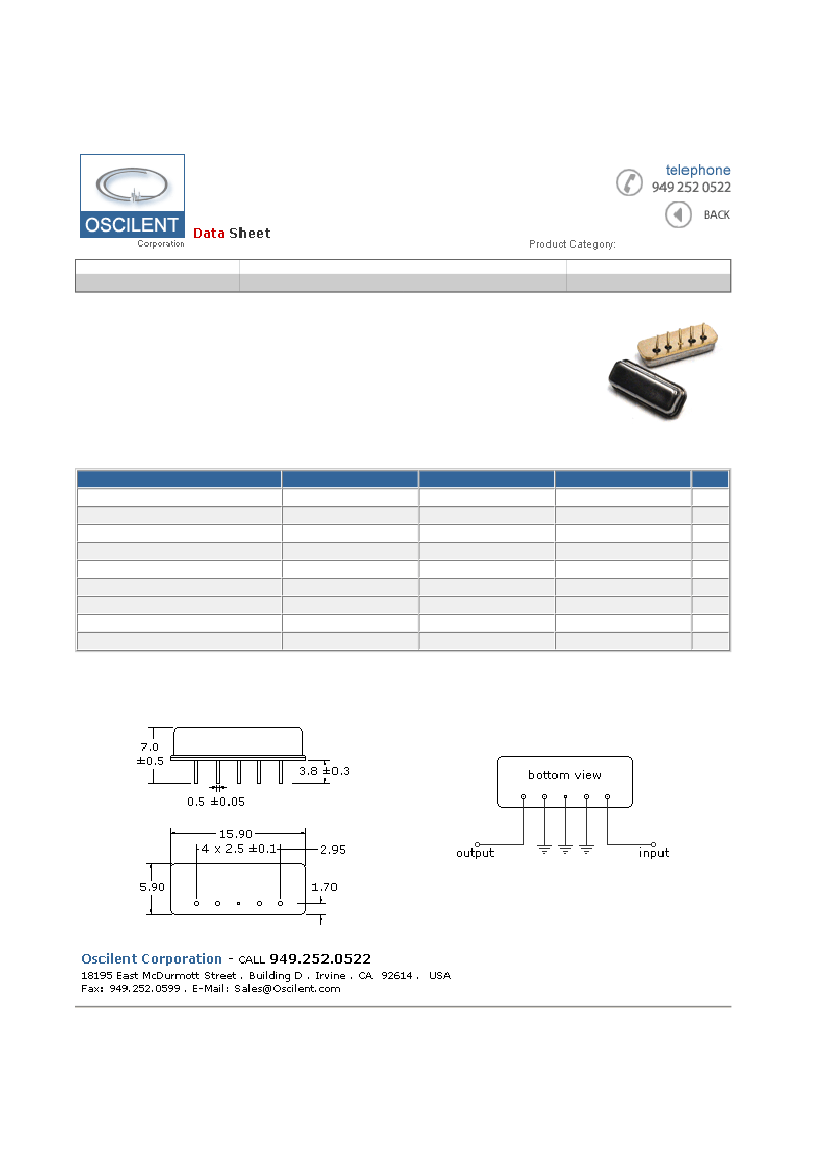

PACKAGE OUTLINE
(mm)
TEST FIXTURE
Source Impedance = 50 ohms
Load Impedance = 2 Kohms / 3pF
Part No.:
815-IF44.0M-A
