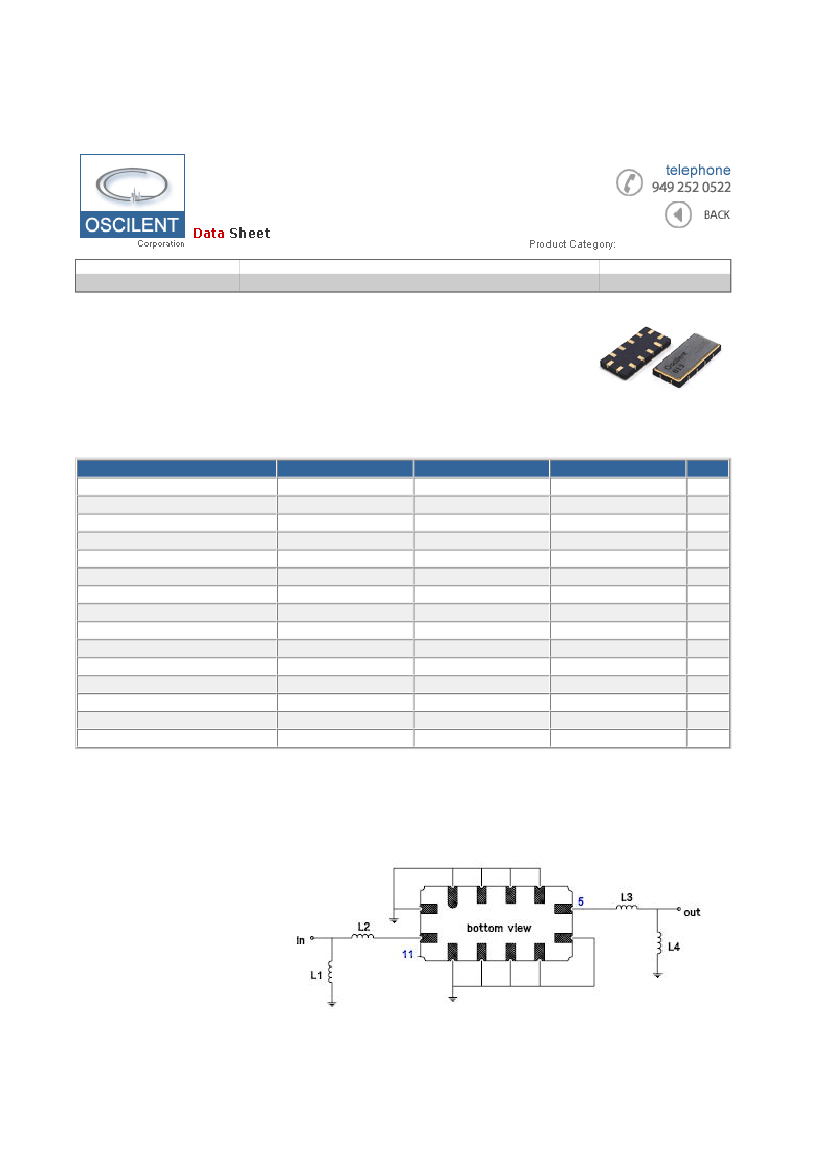

Oscilent Corporation IF SAW Filter | 813-SL96.0M-35
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
813-SL96.0M-35
.
TYPE :
13.3 x 6.5mm SMD
Base Station & Repeater
Apr 18, 2007
96.00 MHz Filter
36.00 MHz Bandwidth
PART NUMBER :
813-SL96.0M-35
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
Source Impedance (single ended)*
Load Impedance (single ended)*
Bandwidth -1.0 dB
Bandwidth -3.0 dB
Bandwidth -30.0 dB
Amplitude Ripple (Fo +/- 2.5MHz)
Amplitude Ripple
Group Delay Variation
Group Delay Variation (Fo +/- 2.5MHz)
Absolute Delay
Relative Attenuation
Ambient Temperature
Temperature Coefficient
Minimum
-
-
-
-
35.0
36.0
-
-
-
-
-
-
40
-
-
Typical
96.0
16.8
50
50
36.0
36.8
40.0
0.4
1.2
65
38
0.942
47
25
-94
Maximum
-
18.5
-
-
-
-
41.0
0.7
2.0
120
70
-
-
-
-
Units
MHz
dB
ohm
ohm
MHz
MHz
MHz
dBp-p
dBp-p
nsec
nsec
µsec
dB
°C
ppm/°C
*With Matching Network(ref. Testing Enirovnment Circut as shown below)
*Custom parameters available. Contact Oscilent Sales for discussion.
.

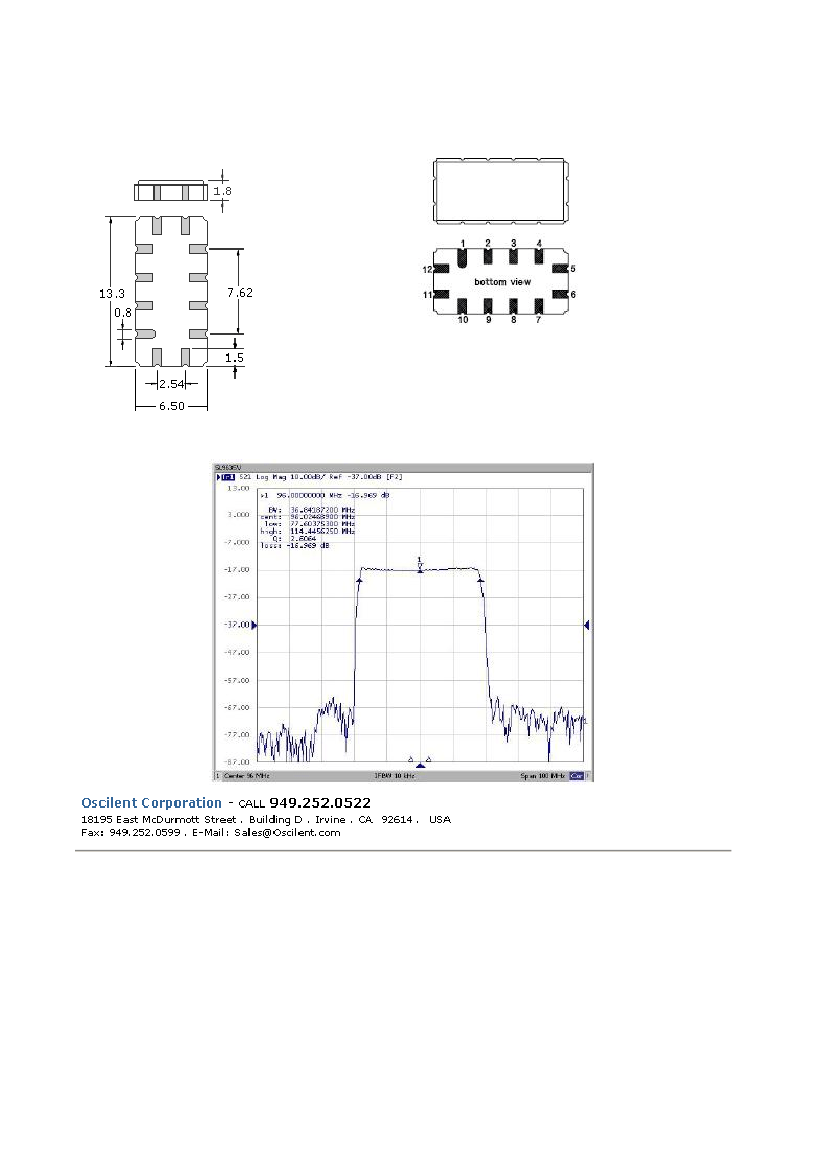

PACKAGE OUTLINE
