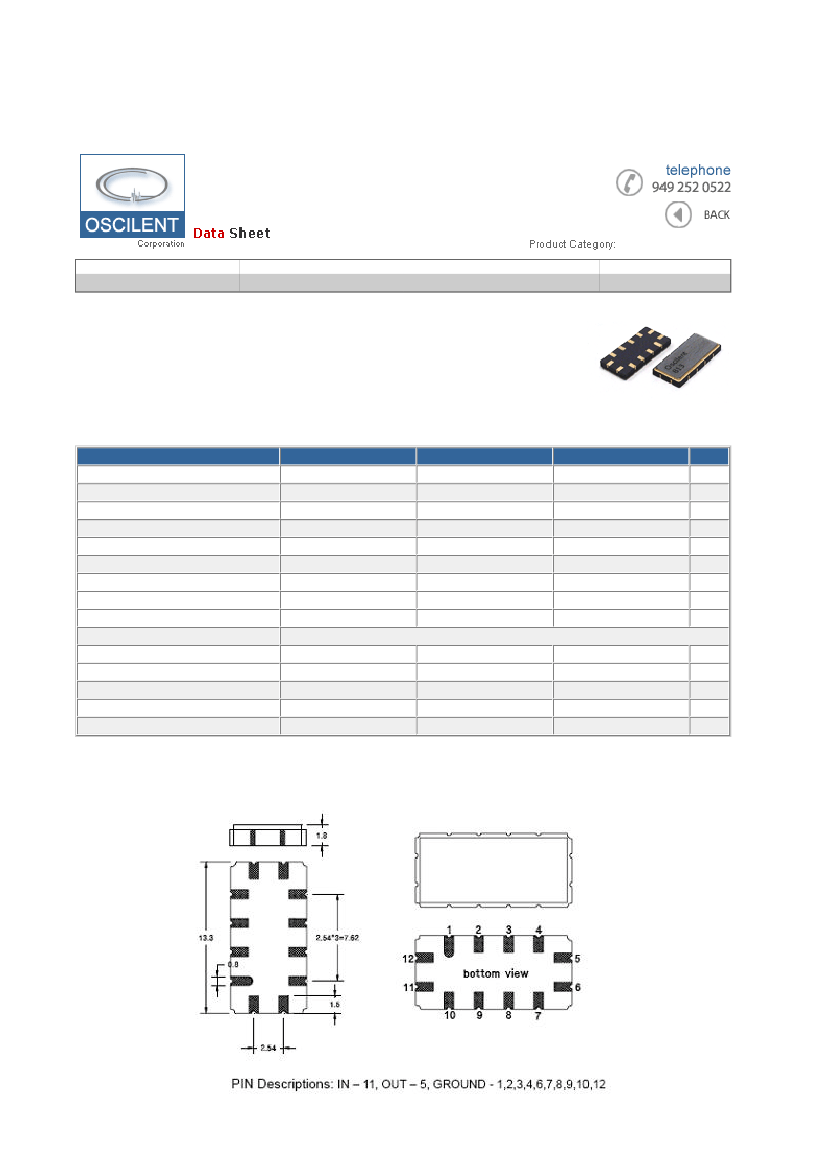

Oscilent Corporation IF SAW Filter | 813-SL70.0M-5B

Page 1 of 2

IF SAW Filter

Part Number

Package

Application

Last Modified

813-SL70.0M-5B

TYPE :

13.3 x 6.5 SMD

IF SAW Filter

Jan. 01, 2007

Low-Loss 70MHz IF SAW Filter

PART NUMBER :

813-SL70.0M-5B

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency (Fo)

Insertion Loss at Fo

Source Impedance (single ended)*

Load Impedance (single ended)*

Temperature Coefficient

Amplitude Ripple within fo +/-2.1MHz

1dB Bandwidth

3dB Bandwidth

40dB Bandwidth

Relative Attenuation:

from 10 to 64 MHz

from 76 to 140MHz

Absolute Delay at Fo

IN/OUT Return Loss at Fo

Group Delay Variation/ fo +/-2.1MHz

1.30

Minimum

69.8

5.00

5.50

Typical

70.0

9.2

-94

0.6

5.30

5.80

7.85

200

Maximum

70.2

10.5

1.0

8.20

Units

MHz

ohm

ppm/C

dBp-p

MHz

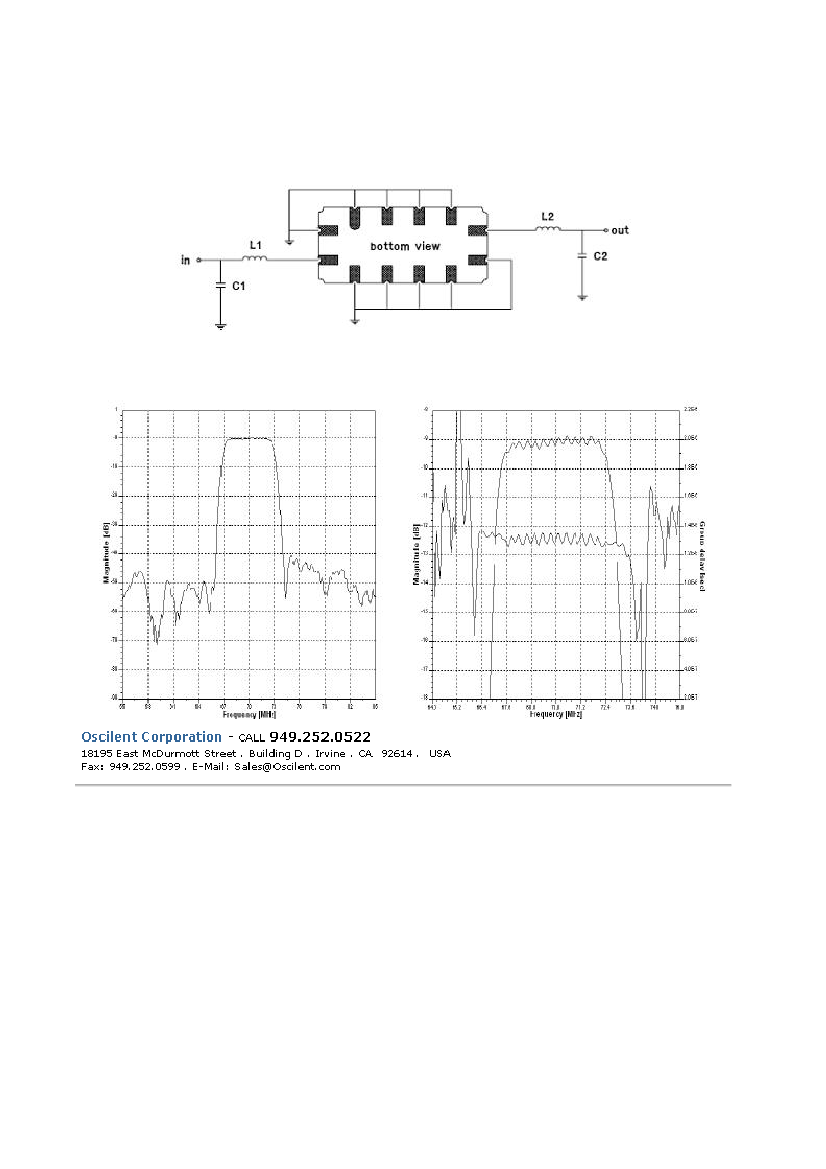

*With Matching Network (Ref. Testing Environment Circuit as Shown Below).

Those impedances could be modified with different impedance values and/or structures, if necessary

PACKAGE OUTLINE

(mm)
