813-SL70.0M-10

Description
IF SAW Filter
File Size248KB,2 Pages
ManufacturerOscilent
Websitehttp://www.oscilent.com
Download Datasheet View All

813-SL70.0M-10 Overview

IF SAW Filter

Oscilent Corporation IF SAW Filter | 813-SL70.0M-10
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
813-SL70.0M-10
.
TYPE :
13.3 x 6.5 SMD
IF SAW Filter
Jan. 01, 2007
Low-Loss 70MHz IF SAW Filter
PART NUMBER :
813-SL70.0M-10
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Insertion Loss at Fo
Source Impedance (single ended)*
Load Impedance (single ended)*
Temperature Coefficient
Amplitude Ripple
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Relative Attenuation:
Lower sidelobe
Upper sidelobe
Absolute Delay at Fo
IN/OUT Return Loss at Fo
Group Delay Variation
40
40
-
-
-
48
45
1.2
-
55
Minimum
-
-
-
-
-
-
9.5
10.2
-
Typical
70.0
10.4
50
50
-94
0.55
9.8
10.4
13.1
-
-
-
-
-
150
dB
dB
us
dB
ns
Maximum
-
12.0
-
-
-
1.0
-
-
14.0
Units
MHz
dB
ohm
ohm
ppm/C
dBp-p
MHz
MHz
MHz

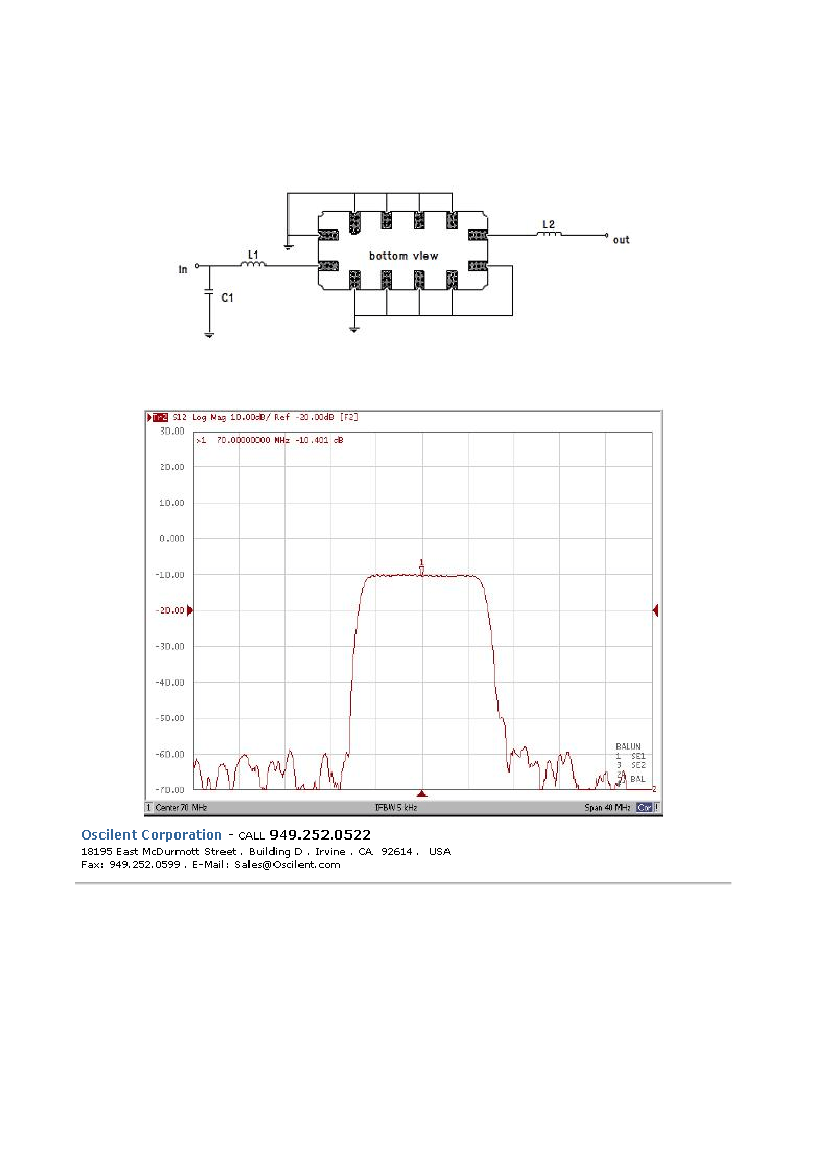

*With Matching Network (Ref. Testing Environment Circuit as Shown Below).
Those impedances could be modified with different impedance values and/or structures, if necessary
.
PACKAGE OUTLINE
(mm)
