813-SL70.0M-06

Description
IF SAW Filter
File Size229KB,3 Pages
ManufacturerOscilent
Websitehttp://www.oscilent.com
Download Datasheet View All

813-SL70.0M-06 Overview

IF SAW Filter

Oscilent Corporation IF SAW Filter | 813-SL70.0M-06
Page 1 of 3
IF SAW Filter
Part Number
Package
Application
Last Modified
813-SL70.0M-06
.
TYPE :
13.3 x 6.5 SMD
IF SAW Filter
Jan. 01, 2007
Low-Loss 70MHz IF SAW Filter
PART NUMBER :
813-SL70.0M-06
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Insertion Loss at Fo
Source Impedance (single ended)*
Load Impedance (single ended)*
Temperature Coefficient
Amplitude Ripple within fo +/-2.1MHz
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Relative Attenuation:
from 10 to 64.5 MHz
from 75.5 to 140MHz
Absolute Delay at Fo
IN/OUT Return Loss at Fo
Group Delay Variation/ fo +/-2.0MHz
40
40
-
-
-
45
45
0.85
-
110
Minimum
69.8
-
-
-
-
-
5.2
6.0
-
Typical
70.0
8.2
50
50
-94
0.7
5.6
6.5
9.5
-
-
-
-
-
150
dB
dB
us
dB
ns
Maximum
70.2
9.0
-
-
-
1.0
-
-
10.0
Units
MHz
dB
ohm
ohm
ppm/C
dBp-p
MHz
MHz
MHz
*With Matching Network (Ref. Testing Environment Circuit as Shown Below).
Those impedances could be modified with different impedance values and/or structures, if necessary
.

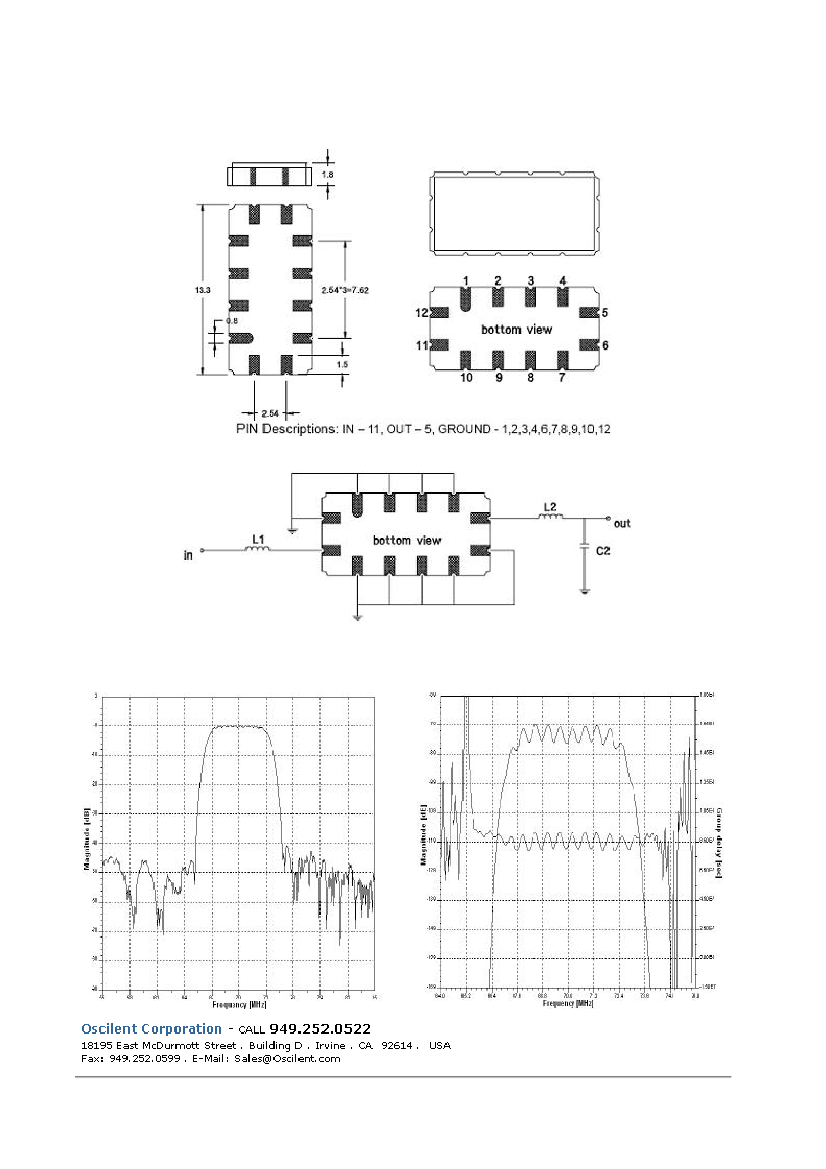

PACKAGE OUTLINE
(mm)
