813-SL70.0M-04 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 813-SL70.0M-04

Preview

813-SL70.0M-04: DescriptionIF SAW Filter; File Size224KB，2 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com

Download Datasheet View All

813-SL70.0M-04 Overview

IF SAW Filter

Preview

Download Datasheet

View All

Oscilent Corporation IF SAW Filter | 813-SL70.0M-04

Page 1 of 2

IF SAW Filter

Part Number

Package

Application

Last Modified

813-SL70.0M-04

TYPE :

13.3 x 6.5 SMD

IF SAW Filter

Jan 01, 2007

Low-Loss 70MHz IF SAW Filter

PART NUMBER :

813-SL70.0M-04

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency (Fo)

Insertion Loss at Fo

Source Impedance (single ended)*

Load Impedance (single ended)*

Temperature Coefficient

Amplitude Ripple within fo +/1.5MHz

1dB Bandwidth

3dB Bandwidth

40dB Bandwidth

Relative Attenuation:

from 10 to 64.5MHz

from 74 to 140MHz

Absolute Delay at Fo

IN/OUT Return Loss at Fo

Group Delay Variation/ fo +/-1.5MHz

1.0

180

Minimum

69.8

Typical

70.0

8.5

-94

0.8

3.68

4.46

7.18

Maximum

70.2

10.0

1.0

Units

MHz

ohm

ppm/C

dBp-p

MHz

*With Matching Network (Ref. Testing Environment Circuit as Shown Below).

Those impedances could be modified with different impedance values and/or structures, if necessary

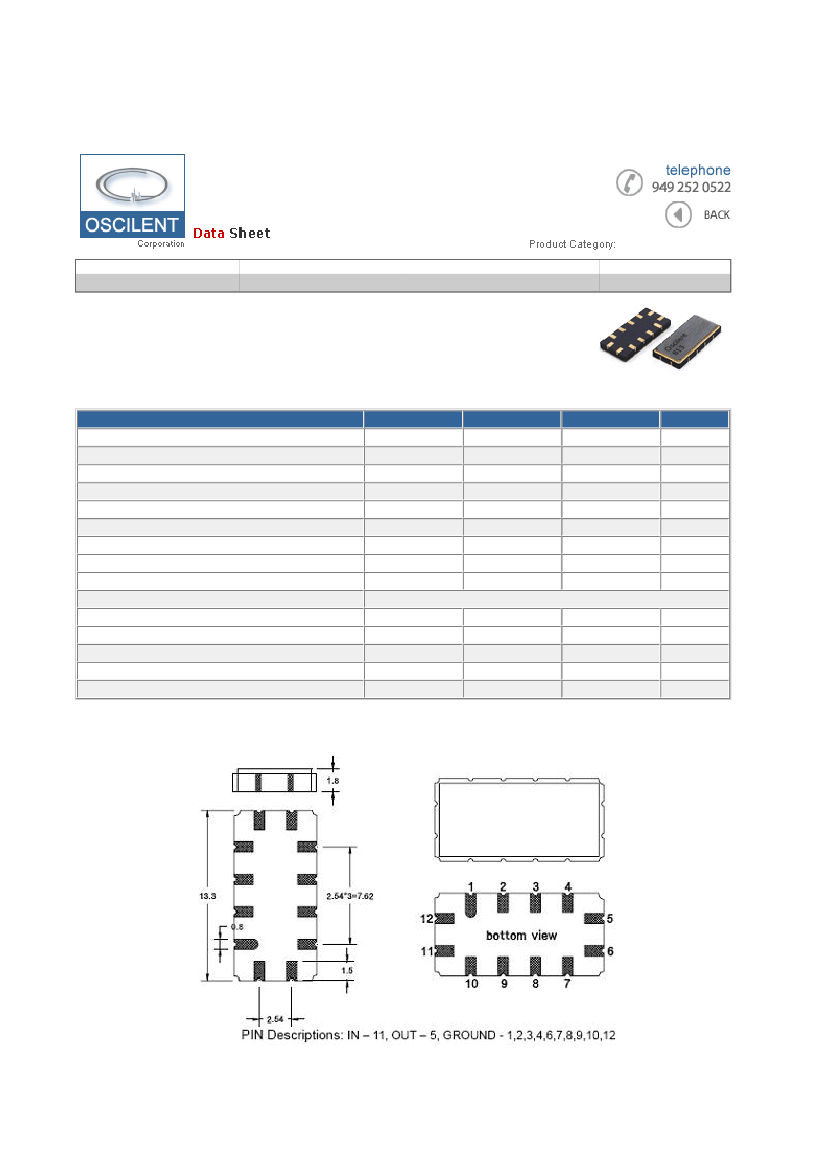

PACKAGE OUTLINE

(mm)

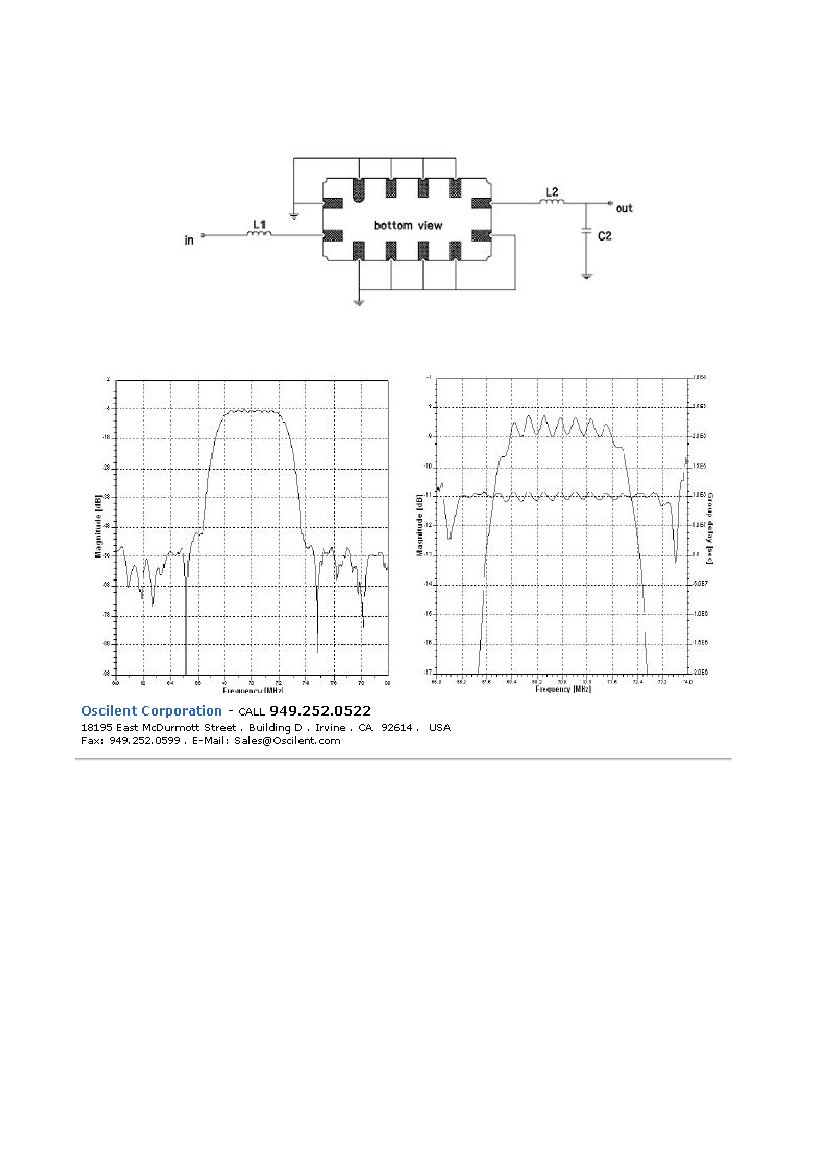

TEST CIRCUIT
