813-SL300.0M-02 Overview

IF SAW Filter

Oscilent Corporation IF SAW Filter | 813-SL300.0M-02
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
813-SL300.0M-02
TYPE :
13.3 x 6.5 SMD
IF SAW Filter
Jan 01, 2007
300.0 MHz IF SAW Filter
PART NUMBER :
813-SL300.0M-02
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Insertion Loss at Fo
Source Impedance (single ended)*
Load Impedance (single ended)*
Temperature Coefficient
Amplitude Ripple
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Relative Attenuation:
Lower Sidelobe
Upper Sidelobe
Absolute Delay at Fo
Group Delay Variation
Ambient Temperature
50
50
-
-
-
55
55
0.509
150
25
Minimum
-
-
-
-
-
-
2.0
3.0
-
Typical
300.0
17.5
50
50
-0.03
1.0
2.54
3.66
9.74
-
-
-
1.2
200
-
dB
dB
us
ns
C
Maximum
-
-
-
-
-
1.5
-
-
11.0
Units
MHz
dB
ohm
ohm
ppm/C
dBp-p
MHz
MHz
MHz
*With Matching Network (Ref. Testing Environment Circuit as Shown Below).
Those impedances could be modified with different impedance values and/or structures, if necessary

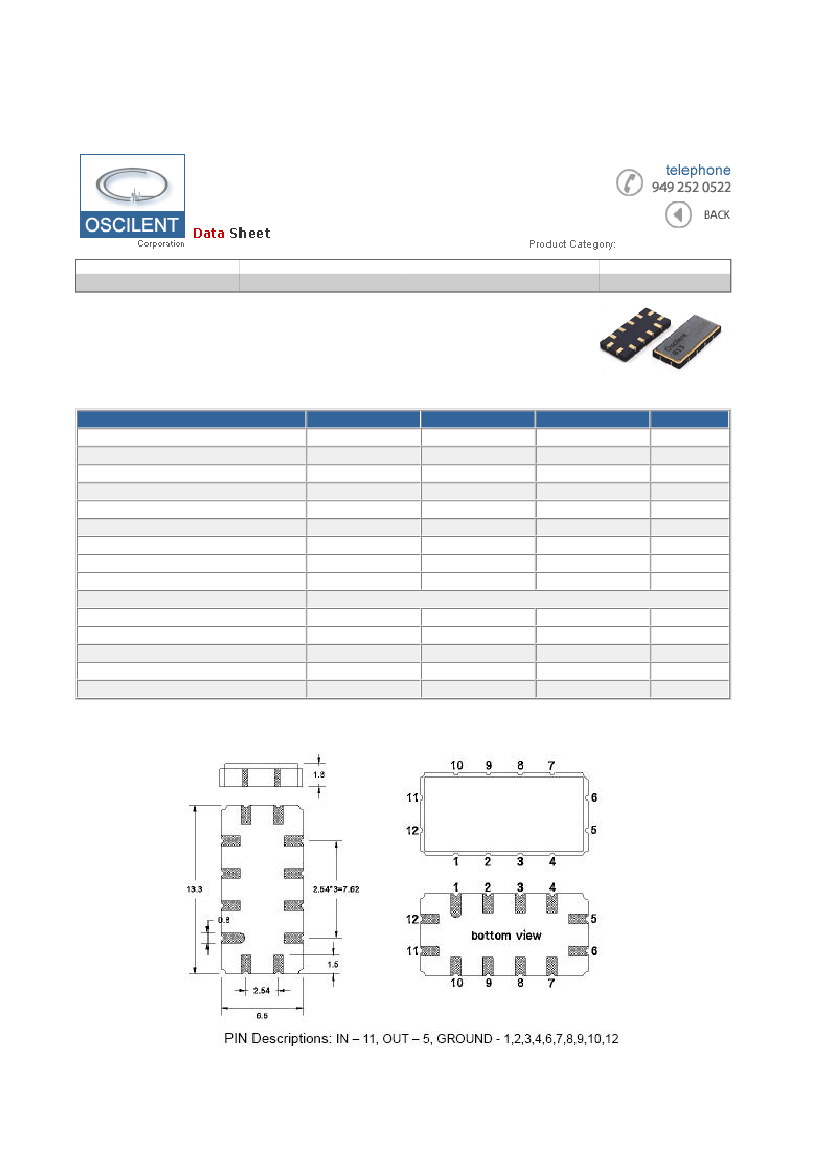

PACKAGE OUTLINE
(mm)

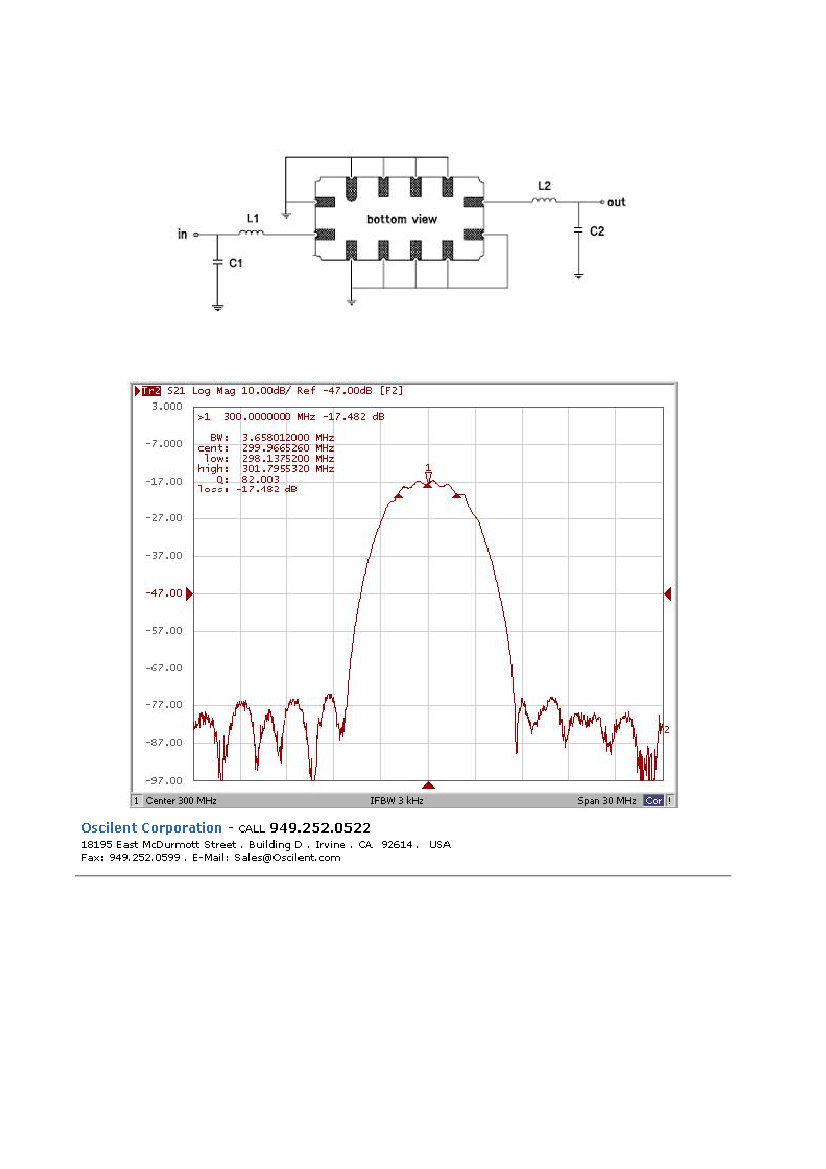

TEST CIRCUIT
