Oscilent Corporation IF SAW Filter | 813-SL160.0M-10
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
813-SL160.0M-10
TYPE :
13.3 x 6.5 SMD
Low-Loss 160MHz
Jan 01, 2007
Low-Loss 160MHz IF SAW Filter
PART NUMBER :
813-SL160.0M-10
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Insertion Loss at Fo
Source Impedance (single ended)*
Load Impedance (single ended)*
Temperature Coefficient
Amplitude Ripple
-1.0 dB Bandwidth
-3.0 dB Bandwidth
-40.0 dB Bandwidth
Relative Attenuation:
Lower Sidelobe
Upper Sidelobe
Absolute Delay at Fo
Group Delay Variation
IN/OUT Return Loss at Fo
40
40
-
-
-
50
43
0.91
55
-
Minimum
-
-
-
-
-
-
9.5
10.3
-
Typical
160.0
9.7
50
50
-94
0.8
9.8
10.6
13.6
-
-
-
-
150
-
dB
dB
us
ns
dB
Maximum
-
12.0
-
-
-
1.0
-
-
14.5
Units
MHz
dB
ohm
ohm
ppm/C
dBp-p
MHz
MHz
MHz
*With Matching Network (Ref. Testing Environment Circuit as Shown Below).
Those impedances could be modified with different impedance values and/or structures, if necessary

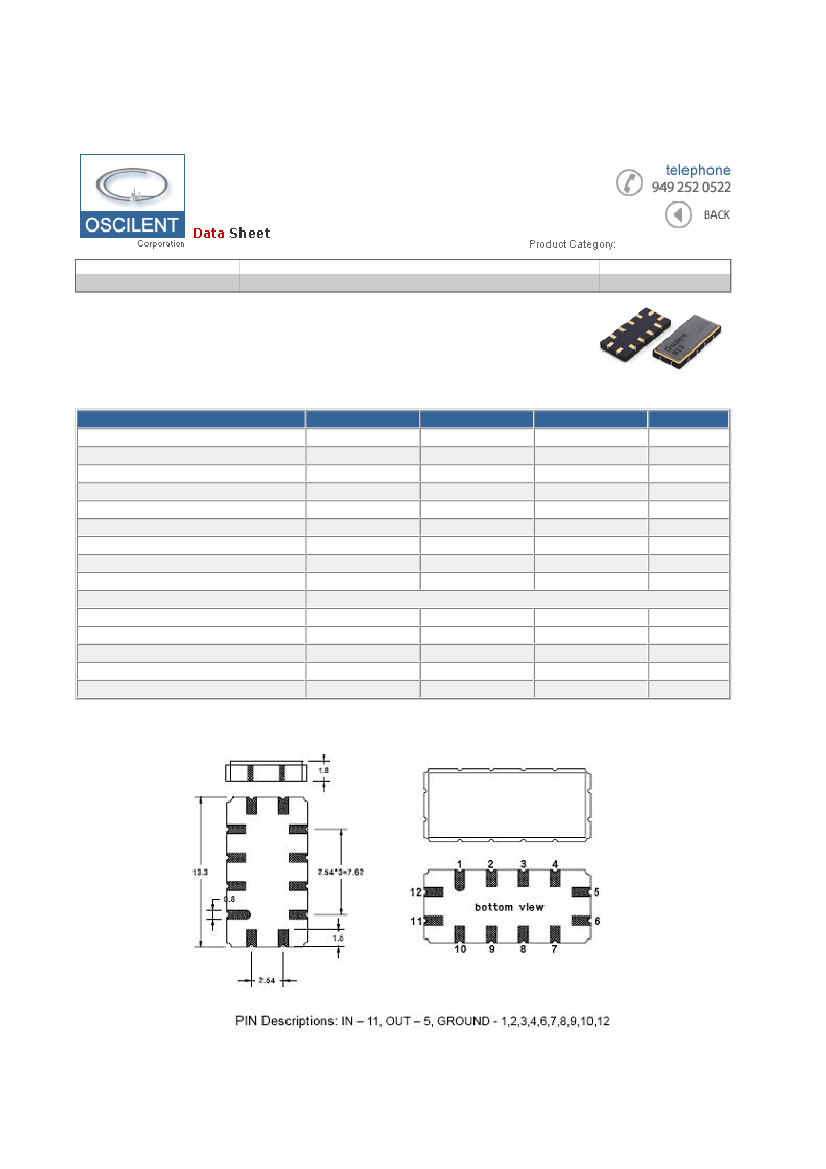

PACKAGE OUTLINE
(mm)

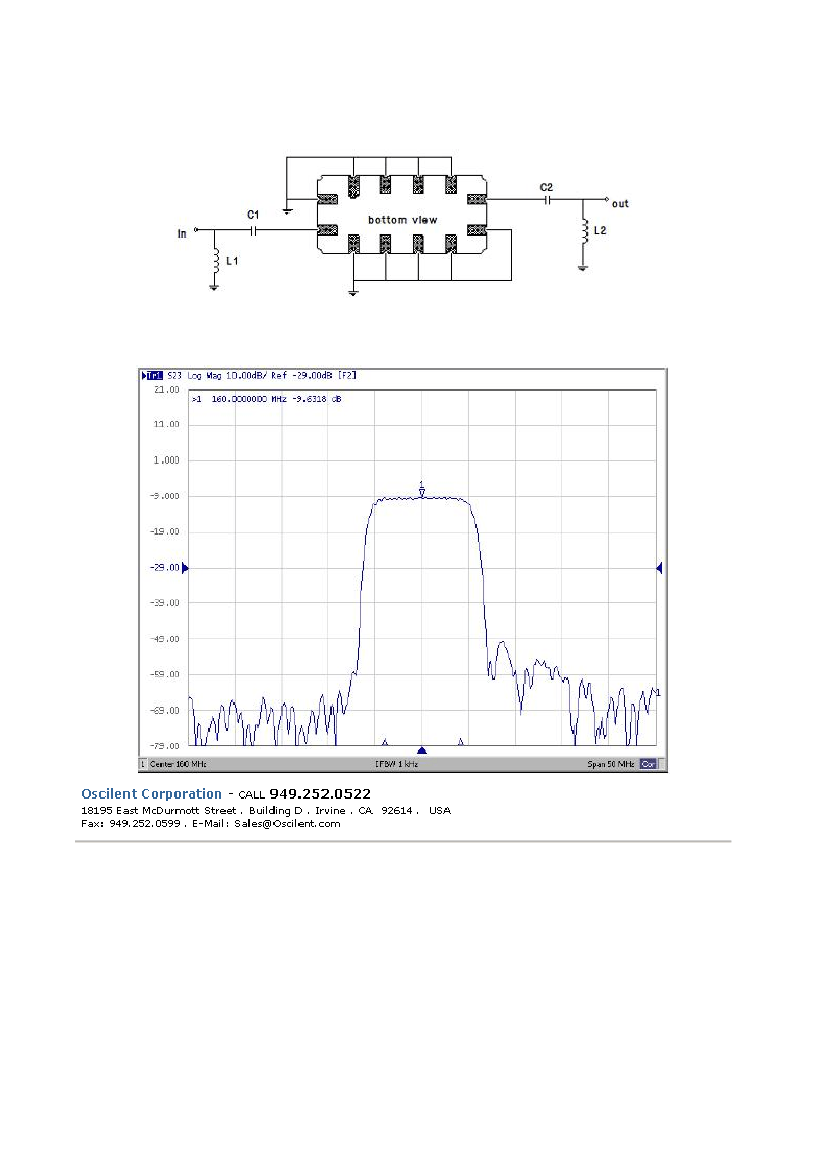

TEST CIRCUIT
Oscilent Corporation IF SAW Filter | 813-SL160.0M-10
Page 2 of 2
TEST FIXTURE AND VALUES/SOURCE AND LOAD IMPEDANCE 50 ohm
INPUT:
OUTPUT:
L1: 27nH, Q>40; C1: 68 pF
L2: 27nH, Q>40; C2: 43 pF
FREQUENCY RESPONSE
Part No.:
813-SL160.0M-10
