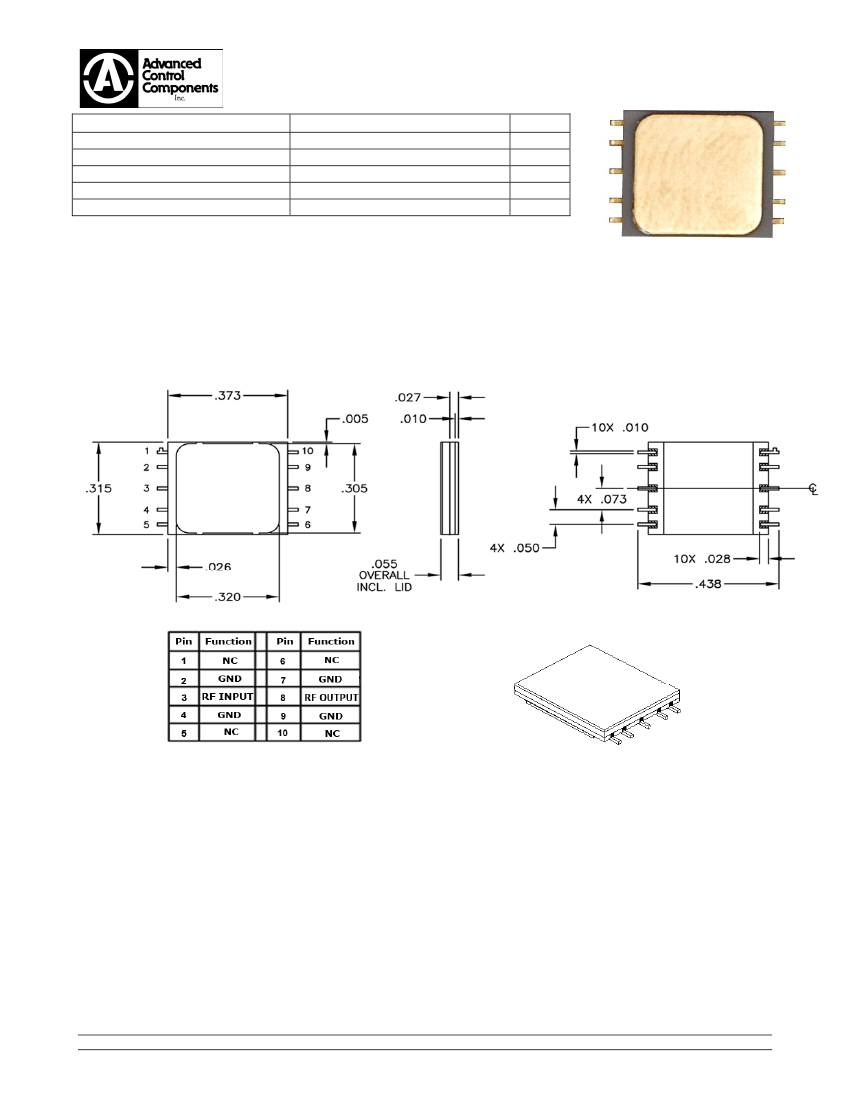

ACLM-4805FM15

LOW LEAKAGE LIMITER

Frequency Range (min)

Peak Input Power (max)

CW Input Power (max)

CW Flat Leakage (max)

Insertion Loss (max)

VSWR (max)

2.0 – 6.0

1000 (1uS PW, 0.1%DC)

10 (up to 85 °C)

12.5 (DEFINED AT 1W INPUT)

1.0

1.4:1

GHz

dBm

ratio

OPTIONAL HIGH-REL SCREENING (Ref MIL-PRF-38534):

Stabilization Bake per MIL-STD-883, Method 1008

Temperature Cycle per MIL-STD-883, Method 1010

Constant Acceleration per MIL-STD-883, Method 2001

Burn-in per MIL-STD-883, Method 1015

External Visual per MIL-STD-883, Method

SCREENING:

Internal Visual per MIL-STD-883, Method 2017

Temperature Cycle: -65°C to +100°C, 10 cycles

STANDARD CASE STYLE M15

NOTES:

CW Leakage is measured at 1W input

PART NUMBER ORDERING INFORMATION:

•

Add desired case style suffix: “M15” (Ex: ACLM-4805FM15)

•

Add “-RC” suffix: RoHS-compliant (Ex: ACLM-4805FM15 - RC)

0310

611 Industrial Way West, Eatontown, NJ 07724

tel: 732-460-0212 fax: 732-460-0214

sales@advanced-control.com

www.advanced-control.com

ACLM-4805FM15 Related Products

	ACLM-4805FM15	ACLM-4805FM15-RC
Description	Limiter, 2000MHz Min, 6000MHz Max, CASE M15, 10 PIN	Limiter, 2000MHz Min, 6000MHz Max, ROHS COMPLIANT, CASE M15, 10 PIN
Is it Rohs certified?	incompatible	conform to
Reach Compliance Code	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=60DBM	I/P POWER-MAX (PEAK)=60DBM
Adjustability	FIXED	FIXED
structure	COMPONENT	COMPONENT
Maximum input power (CW)	40 dBm	40 dBm
Maximum operating frequency	6000 MHz	6000 MHz
Minimum operating frequency	2000 MHz	2000 MHz
RF/Microwave Device Types	LIMITER	LIMITER
Maximum voltage standing wave ratio	1.4	1.4
Base Number Matches	1	1
