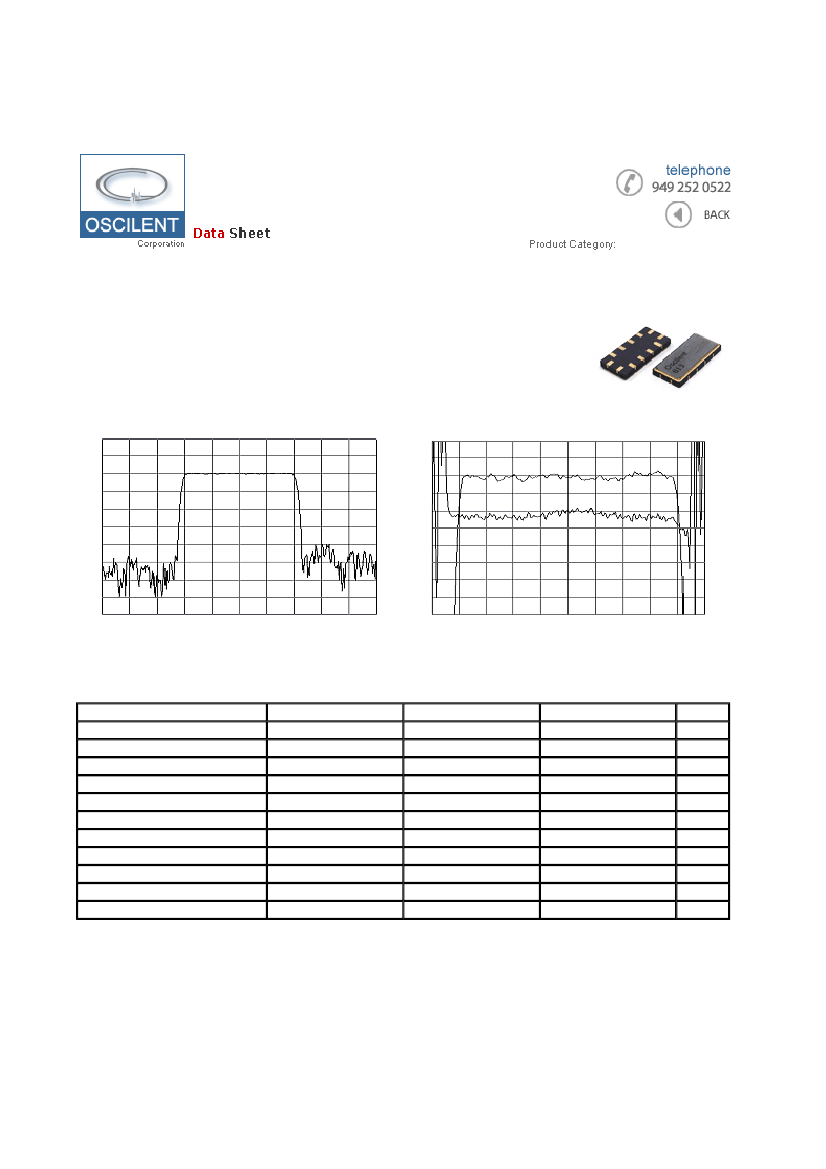

Oscilent Corporation IF SAW Filter | 813-IF62.5M-A
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
813-IF62.5M-A
.
TYPE :
13.3 x 6.5 SMD
Base Station & Repeater
June 24 2004
62.5 MHz Bandpass Filter
20.3 MHz Bandwidth
PART NUMBER :
813-IF62.5M-A
.
Horizontal : 5.0 MHz/Div
Veritical : 10 dB/Div
Horizontal : 2.5 MHz/Div
Veritical : 1 dB/Div
Veritical : 100 ns/Div
.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
1dB Bandwidth
3dB Bandwidth
40dB Bandwidth
Passband Ripple
Group Delay Variation
Absolute Delay
Ultimate Rejection
Substrate Material
Ambient Temperature
Minimum
62.42
-
19.75
20.25
-
-
-
-
40
-
-
Typical
62.50
20.5
19.85
20.35
22.5
0.90
70
1.10
45
128LN
25
Maximum
62.58
-
-
-
23.5
1.5
120
-
-
-
-
Units
MHz
dB
MHz
MHz
MHz
dB
nsec
µsec
dB
-
°C
* Custom SAW IF Filters available. Contact Oscilent for assistance.
.
PACKAGE OUTLINE
(mm)
TEST FIXTURE
http://www.oscilent.com/spec_pages/if_sawfilter/if_813_if62_5a.htm
