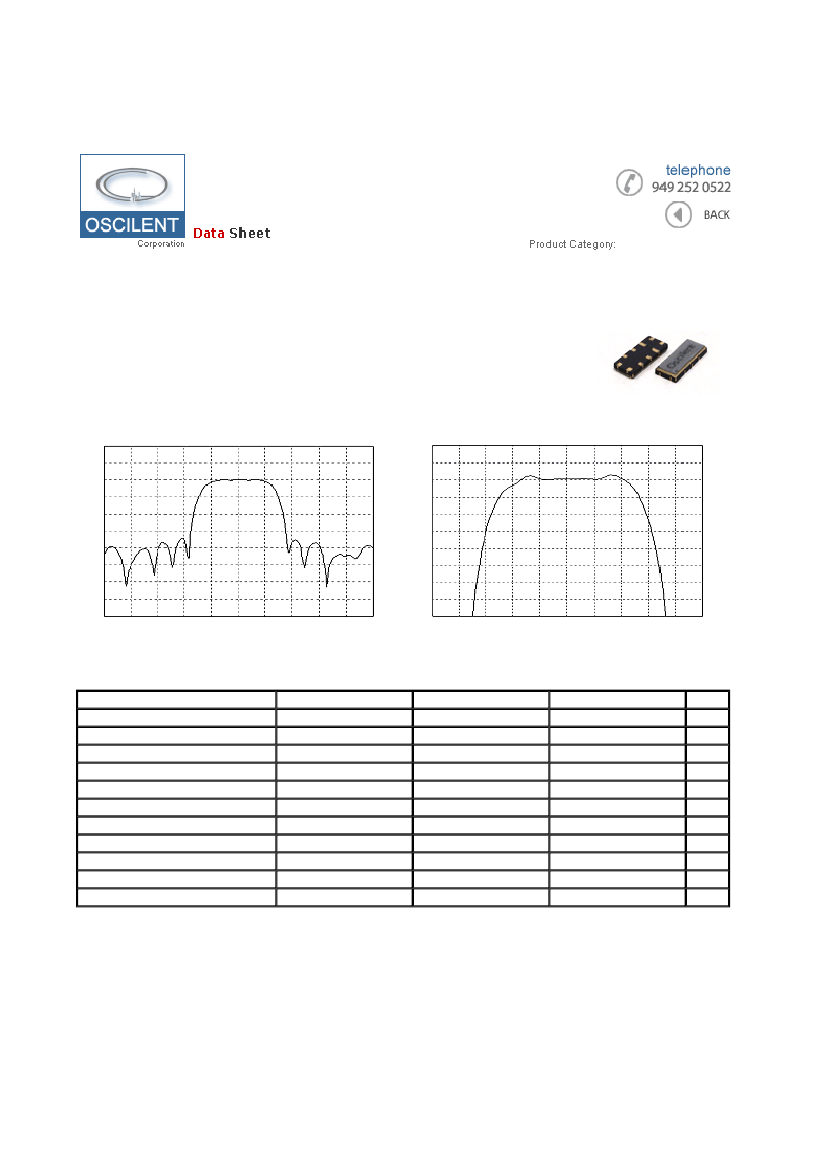

Oscilent Corporation IF SAW Filter | 811-IF85.38M-A
Page 1 of 2
IF SAW Filter
Part Number
Package
Application
Last Modified
811-IF85.38M-A
.
TYPE :
11.6 x 5.0 SMD
Mobile Communication
June 17 2003
85.38 MHz Bandpass Filter
1.26 MHz Bandwidth
PART NUMBER :
811-IF85.38M-A
.
Horizontal : 0.5 MHz/Div
Veritical : 10 dB/Div
Horizontal : 0.2 MHz/Div
Veritical : 1 dB/Div
.
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency
Insertion Loss
5dB Bandwidth
33dB Bandwidth
Attenuation at Fo ± 0.9 MHz
Attenuation at Fo ± 1.25 MHz
Attenuation at Fo ± 1.7 MHz
Passband Ripple
Ultimate Rejection
Substrate Material
Ambient Temperature
Minimum
85.36
-
1.26
-
33
33
33
-
35
-
-
Typical
85.38
10.95
1.31
1.76
38
47
43
0.3
42
Quartz
25
Maximum
85.40
12.5
-
1.80
-
-
-
0.7
-
-
-
Units
MHz
dB
MHz
MHz
dB
dB
dB
dB
dB
-
°C
* Custom SAW IF Filters available. Contact Oscilent for assistance.
.
PACKAGE OUTLINE
(mm)
TEST FIXTURE
http://www.oscilent.com/spec_pages/if_sawfilter/if_811_if85_38a.htm
