SMLDL-TTL-110 datasheet, PDF - EEWORLD Datasheet

SMLDL-TTL-110: DescriptionActive Delay Line, 1-Func, 1-Tap, True Output, TTL, PDSO4, 0.235 INCH HEIGHT, PLASTIC, MODULE, SO-14/4; Categorylogic logic; File Size318KB，2 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

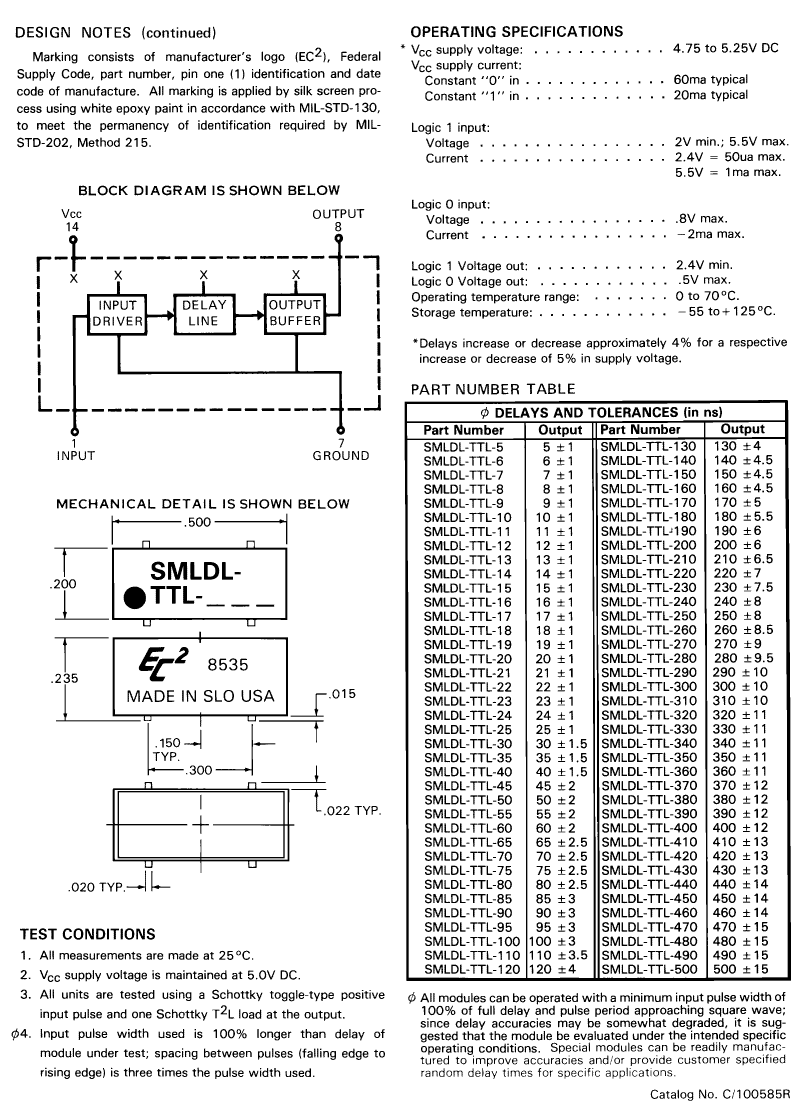

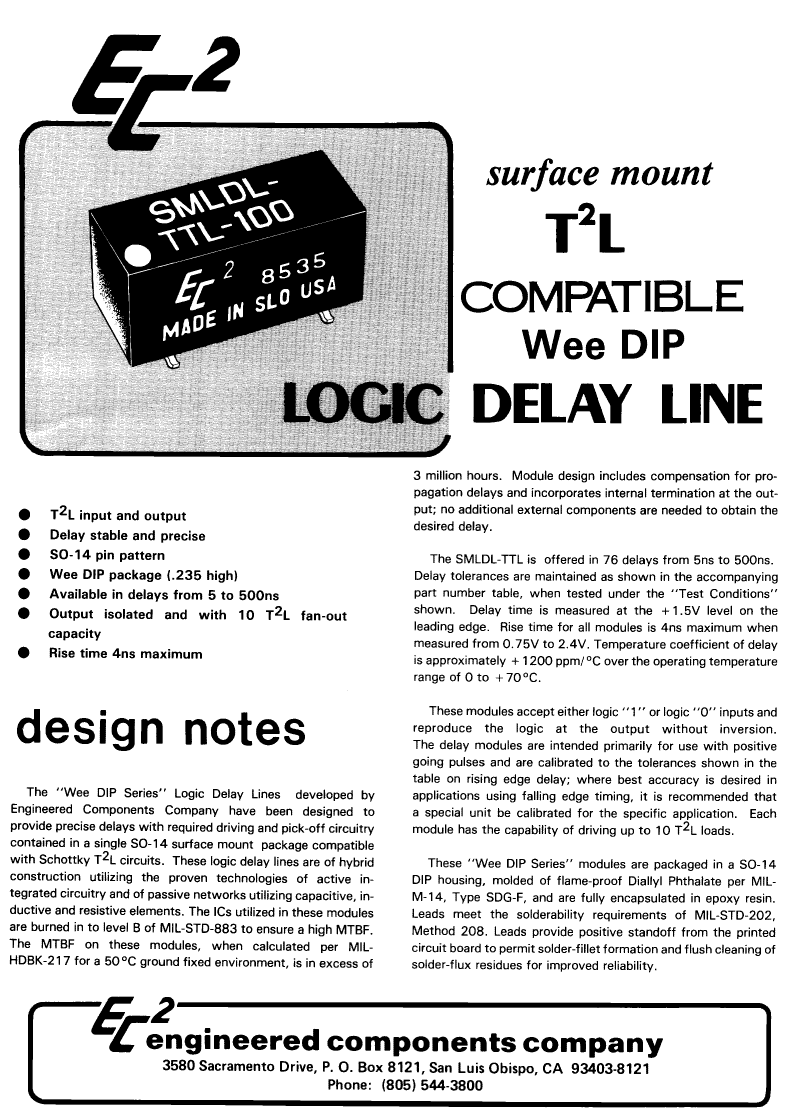

SMLDL-TTL-110 Overview

Active Delay Line, 1-Func, 1-Tap, True Output, TTL, PDSO4, 0.235 INCH HEIGHT, PLASTIC, MODULE, SO-14/4

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, SOP14,.3
Contacts	4
Reach Compliance Code	unknown
Other features	BURNED-IN TO LEVEL B OF MIL-STD-883; TYP. ICC = 60MA; MAX RISE TIME CAPTURED
series	TTL
JESD-30 code	R-PDSO-G4
JESD-609 code	e0
length	12.7 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	1
Number of terminals	4
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
programmable delay line	NO
Prop。Delay @ Nom-Sup	110 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	110 ns
width	5.08 mm
Base Number Matches	1
