Wideband Sub-Mini Transponder/Responder (WSM)
Description

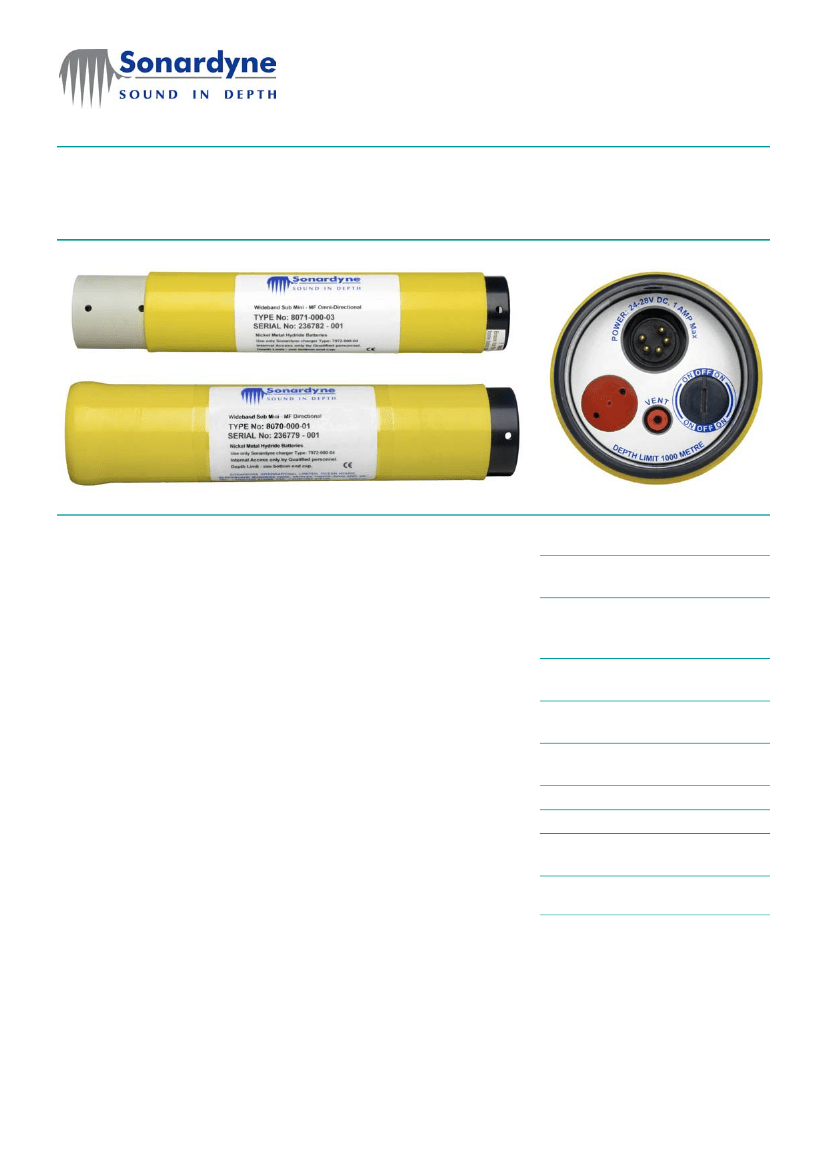

Sonardyne’s family of Wideband
Sub-Minis (WSM) are a versatile
range of USBL transponder/
responders designed for positioning
ROVs, towfish and other mobile
targets in water depths up to 3,000
metres.
Compact and rugged, WSMs
incorporate the latest Sonardyne
Wideband® signal technology
which offers superior ranging
accuracy, operation in a mulit-user,
multi-vessel environment and fast
USBL position updates.
The Type 8071 WSM is equipped
with an omni-directional transducer
and is depth rated to 1,000 metres
making it suitable for a wide ranger
of general USBL tracking application.
Key Features
•
Choice of 1,000 Metre or 3,000
Metre depth rating
•
Choice of Omni-Directional or
Directional beamshape with class
leading acoustic power output
•
Channel selection via serial data
port by PC
•
Transponder or Responder
operating modes
•
Depth sensor for improved USBL
positioning performance
•
Long-life NiMH battery
•
Compact and rugged design
•
Windows based software for test
and setup
•
External On/Off switch for ease of
use and storage
The Type 8070 WSM is a 3,000
metre rated unit and features a high-
power directional transducer with an
acoustic output comparable to
Sonardyne's most powerful full size
seabed transponders.
In addition to supporting new
Sonardyne Wideband® signals,
WSMs also support traditional
Sonardyne tone and HPR 300 and
HiPAP® channels. A link allows the
WSM to be configured for use with
all of the popular MF frequency
acoustic navigation systems.
Both types of WSM have a depth
sensor fitted as standard to aid USBL
positioning accuracy and an external
On/Off switch for ease of use and
storage when not in use.
Sonardyne UK (Head Office)
T. +44 (0) 1252 872288
F. +44 (0) 1252 876100
E. sales@sonardyne.com
www.sonardyne.com
Specifications
Wideband Sub-Mini Transponder/Responder (WSM)
Feature
Depth Rating
Operating Frequency
Operating Channels
Transducer Beamshape
Transmit Source Level
(External Power)
(dB re 1µPa @ 1m)(26-32kHz) (Battery – High Power)
(Battery – Low Power)
Receive Sensitivity (dB re 1µPa) High Gain
Low Gain
Power Supply
Number of Replies (Responder)
Depth Sensor
Maximum Update Period
Quiescent Life
Mating Connector
Mechanical Construction

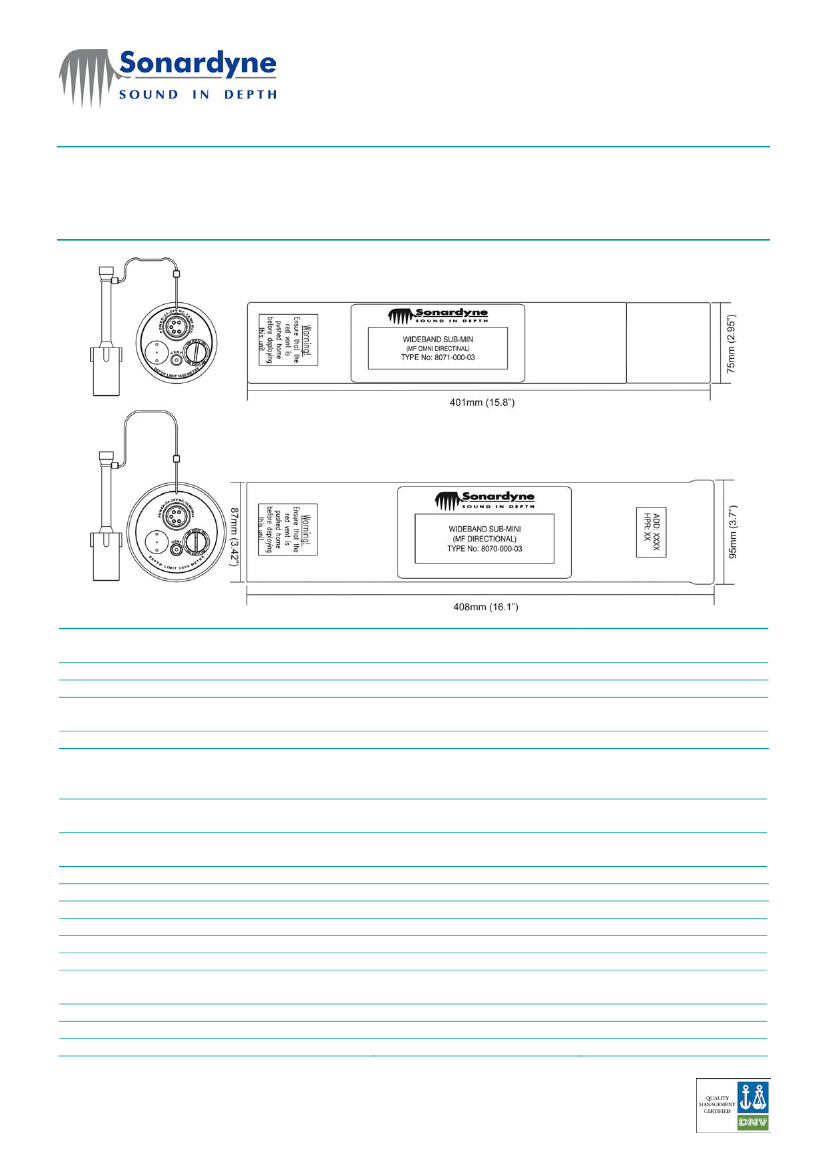

Dimensions (LxDia)
Weight in Air
Weight in Water
Battery Charger
Type 8071
1,000 Metres
MF (19-36kHz)
All Sonardyne Wideband/Tone
HPR 300 & 400 Channels
Omni-Directional
190dB
188dB
185dB
<100dB
<110dB
Long-Life Ni MH battery or ext.
24V via ROV’s umbilical
Unlimited with External Power
Standard
750ms
60 Days
Subconn MCIL5F
Aluminium Alloy, Anodised
401mm (15.8”) x
75mm (2.95”)
2.7kg
1.4kg
7972-000-04
Type 8070
3,000 Metres
MF (19-36kHz)
All Sonardyne Wideband/Tone
HPR 300 & 400 Channels
Directional
202dB
199dB
196dB
<100dB
<110dB
Long-Life Ni MH battery or ext.
24V via ROV’s umbilical
Unlimited with External Power
Standard
750ms
60 Days
Subconn MCIL5F
Aluminium Alloy, Anodised
408mm (16.1”) x
95mm (3.7”)
5.0kg
2.6kg
7972-000-04
Specifications subject to change without notice - 01/2008
