807-IF456.0M-A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 807-IF456.0M-A

Preview

807-IF456.0M-A: DescriptionMobile Communication; CategoryAnalog mixed-signal IC filter; File Size264KB，2 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com; Environmental Compliance

Download Datasheet Parametric View All

807-IF456.0M-A Overview

Mobile Communication

807-IF456.0M-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Oscilent
Reach Compliance Code	compli
Center frequency or cutoff frequency (fo/fc)	456 MHz
filter type	SAW FILTER
high	1.6 mm
input resistance	50 OHM
Maximum insertion loss	16.5 dB
length	7 mm
Manufacturer's serial number	807-IF456.0M-A
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
Output impedance	50 OHM Ω
physical size	L7.0XB5.0XH1.6 (mm)/L0.276XB0.197XH0.063 (inch)

Preview

Download Datasheet

View All

Oscilent Corporation IF SAW Filter | 807-IF456.0M-A

Page 1 of 2

IF SAW Filter

Part Number

Package

Application

Last Modified

807-IF456.0M-A

.

TYPE :

7.0 x 5.0 SMD

Mobile Communication

Jan. 01, 2007

456.0 MHz IF SAW Filter

7.60 MHz Bandwidth

PART NUMBER :

807-IF456.0M-A

..

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss at Fo

Bandwidth at -3.0 dB

Bandwidth at -40.0 dB

Relative Attenuation

Lower Sidelobe

Upper Sidelobe

Temperature Coefficient

Source Impedance (Balanced)*

Load Impedance (Balanced)*

Amplitude Ripple

Group Delay Variation

Operating Temperature

Absolute Delay at Fo

40

-

-40

-

45

43

0.03

200

1.0

120

-

0.520

Minimum

455.7

-

7.0

-

Typical

456.0

14.5

7.6

12.6

-

1.5

200

+85

1.0

dB

ppm/°C

ohm

dBp-p

ns

°C

µsec

Maximum

456.3

16.5

-

14.0

Units

MHz

dB

MHz

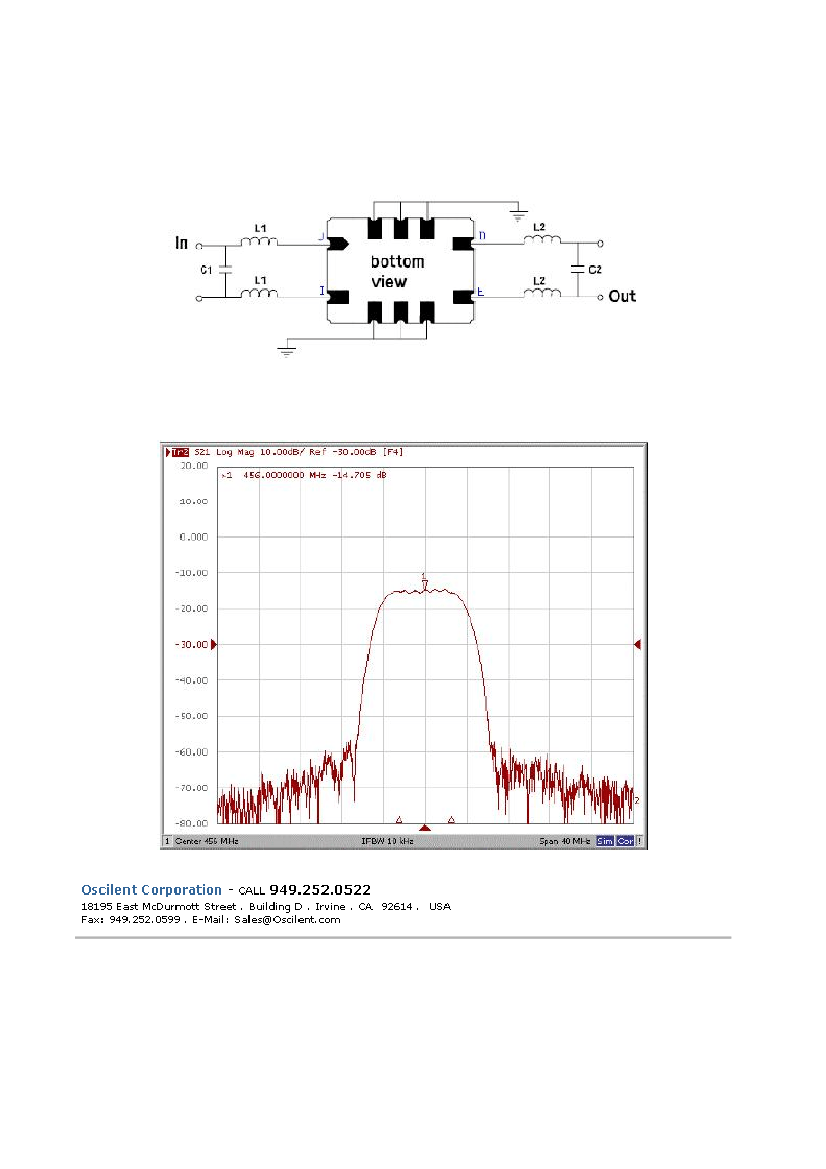

* With Matching Network (Ref. Testing Environment Circuit as shown) Modification to Impedance Values are possible if

needed.

.

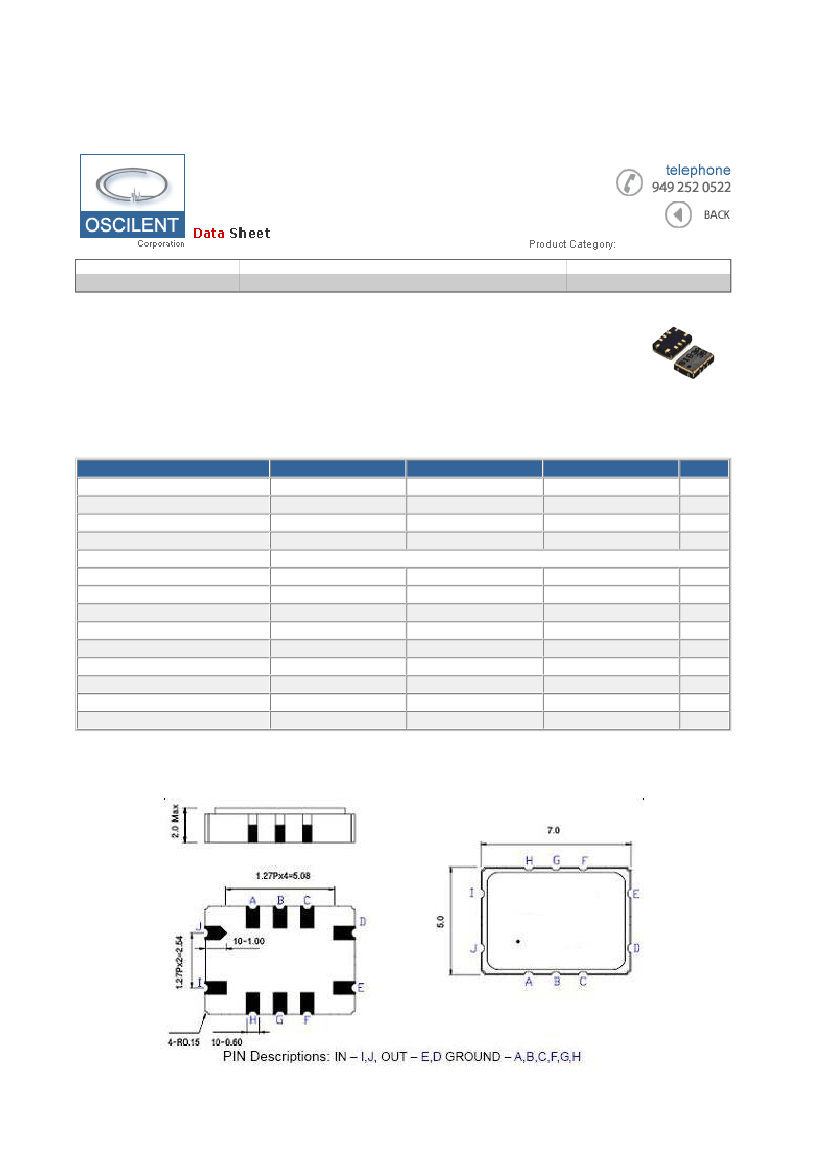

PACKAGE OUTLINE

(mm)
