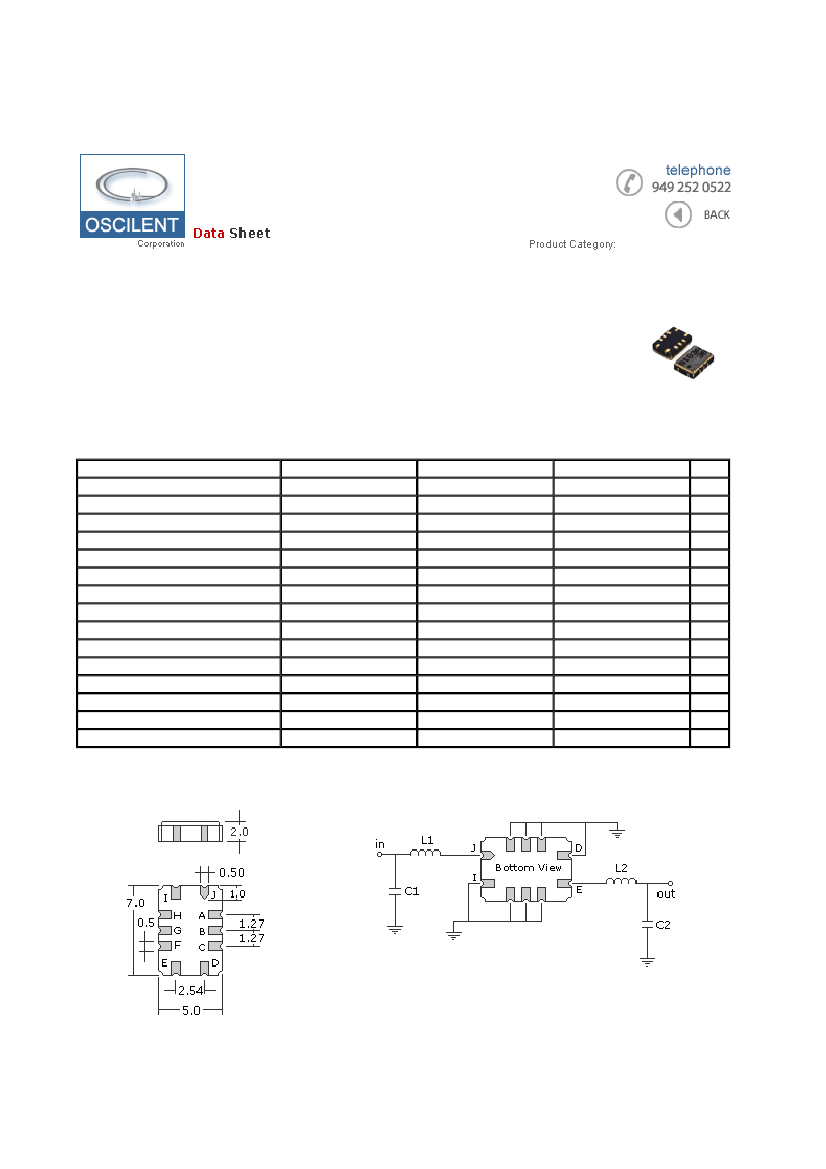

Oscilent Corporation IF SAW Filter | 807-IF183.6M-A

Page 1 of 2

IF SAW Filter

Part Number

Package

Application

Last Modified

807-IF183.6M-A

TYPE :

7.0 x 5.0 SMD

Mobile Communication

May 22 2003

183.6 MHz Bandpass Filter

1.23 MHz Bandwidth

PART NUMBER :

807-IF183.6M-A

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency

Insertion Loss

Attenuation at Fo -615 KHz

Attenuation at Fo -615 K Hz

Attenuation at Fo -900 KHz

Attenuation at Fo +900 KHz

Attenuation at Fo ± 1.25 MHz

Attenuation at Fo ± 1.7 MHz

Attenuation at Fo ± 2.05 MHz

Input / Output Impedance

Passband Ripple at Fo ± 0.3 MHz

Ultimate Rejection

Substrate Material

Phase Linearity at Fo ± 0.3 MHz

Operating Temperature

Minimum

-30

Typical

183.6

7.0

3.8

3.9

0.5

Quartz

1.5

Maximum

10.0

1.2

3.0

+80

Units

MHz

ohm

°rms

°C

* Custom SAW IF Filters available. Contact Oscilent for assistance.

PACKAGE OUTLINE

(mm)

TEST FIXTURE

L1 = 82nH

C1 = 43pF

L2 = 68nH

C2 = 43pF

Source/Load Impedance = 50 ohms

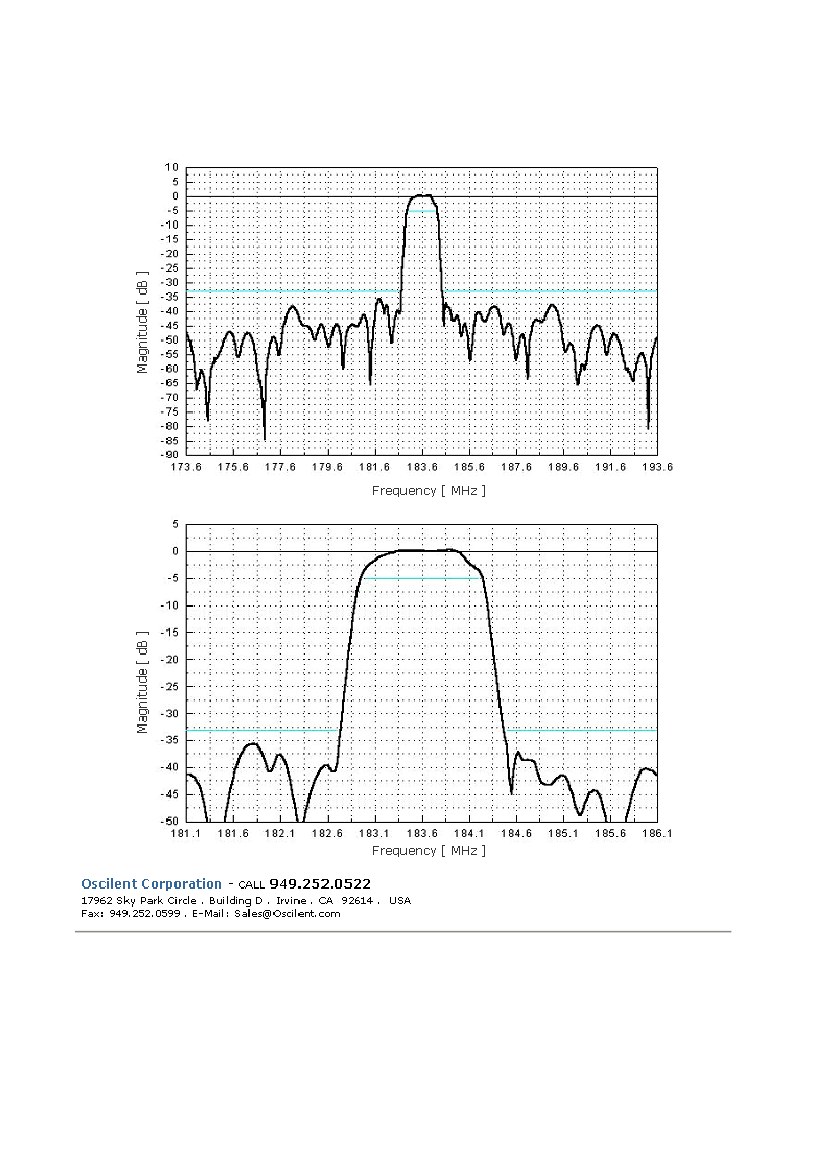

FREQUENCY RESPONSE

http://www.oscilent.com/spec_pages/if_sawfilter/if_807_if183_6a.htm

12/28/2005
