805-RF325.3M-A Overview

Wireless, RF SAW Filter

Oscilent Corporation RF SAW Filter | 805-RF325.3M-A
Page 1 of 2

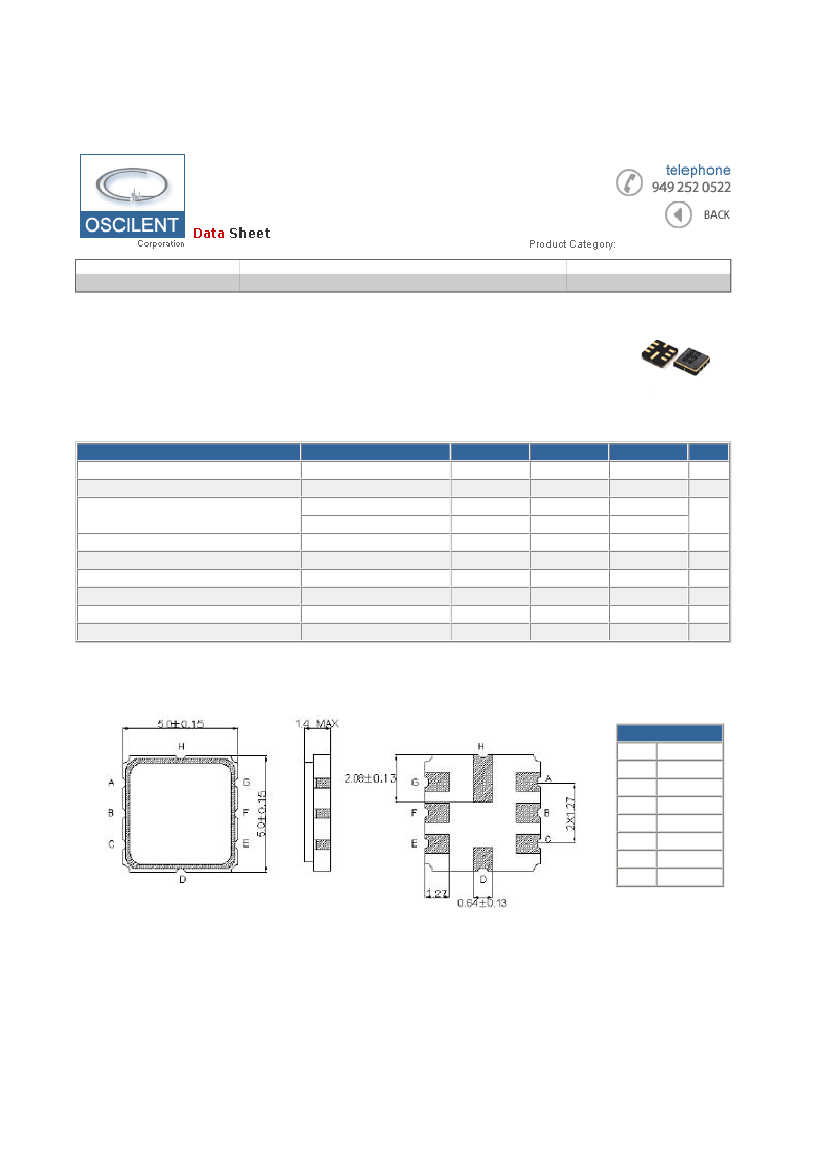

RF SAW Filter
Part Number
Package
Application
Last Modified
805-RF325.3M-A
.
TYPE :
5.0 x 5.0 SMD
Wireless
Mar. 10, 2007
Wireless, RF SAW Filter
PART NUMBER :
805-RF325.3M-A
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Insertion Loss
Stop Band Attenuation:
Ripple in
Source Impedence (single ended)*
Load Impendance (single ended)*
DC Voltage
Maximum Input Power
Operating Temperature
Condition
-
322.0 ~ 328.6 MHz
Fo-100.0 ~Fo-39.5 MHz
Fo+39.5 ~F+100.0 MHz
322.0 ~ 328.6 MHz-
-
-
-
-
-
Minimum
-
-
40
50
-
-
-
-
-
-10
Typical
325.3
2.5
50
60
0.8
150
150
-
-
-
Maximum
-
3.5
-
-
1.5
-
-
10
0
+60
Units
MHz
dB
dB
MHz
ohm
ohm
V
dBm
ºC
* With Matching Network (Ref. Testing Environment Circuit as shown)
.
PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
E
F
G
H
Ground
In
Ground
Ground
Ground
Out
Ground
Ground

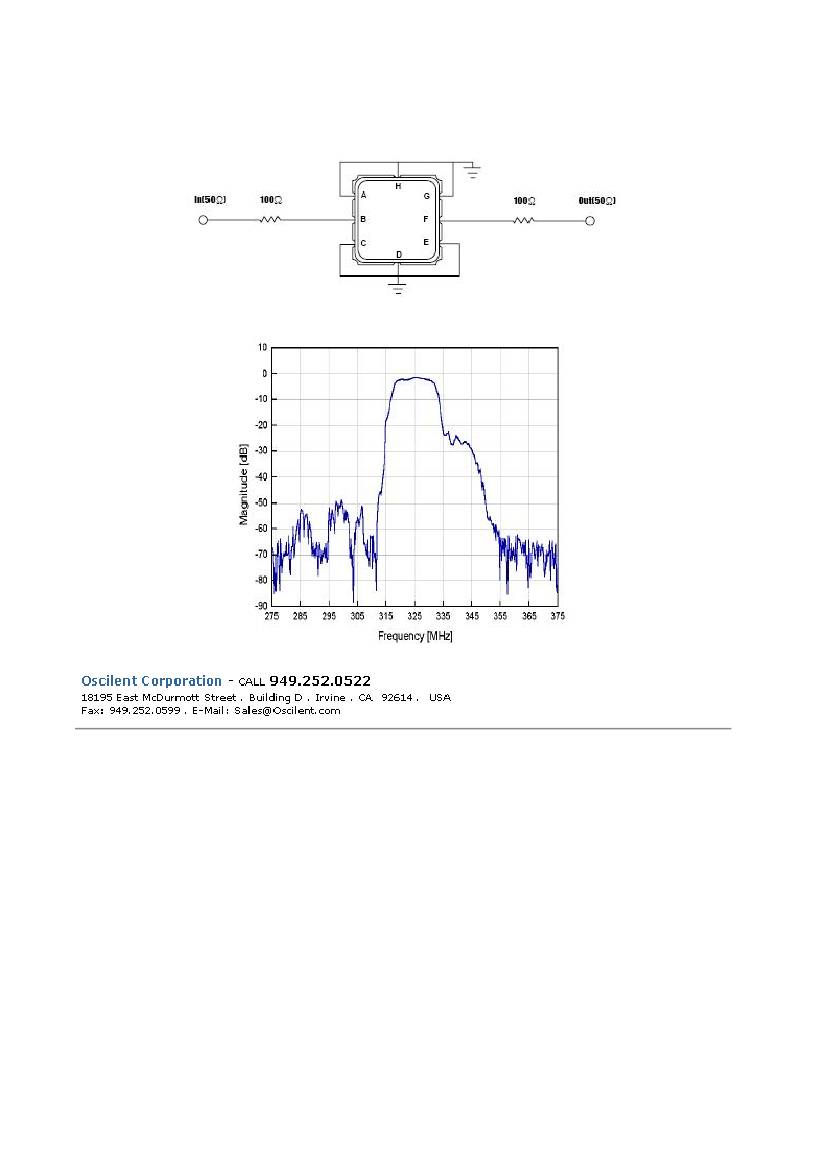

TEST FIXTURE
