805-RF246.0M-A: DescriptionLow Loss IF SAW Filter; CategoryAnalog mixed-signal IC filter; File Size247KB，2 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com; Environmental Compliance

Download Datasheet Parametric View All

805-RF246.0M-A Overview

Low Loss IF SAW Filter

805-RF246.0M-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Oscilent
Reach Compliance Code	compli
Center frequency or cutoff frequency (fo/fc)	246 MHz
filter type	SAW FILTER
high	1.4 mm
input resistance	200 OHM
Maximum insertion loss	2.5 dB
length	5 mm
Manufacturer's serial number	805-RF246.0M-A
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Output impedance	50 OHM Ω
physical size	L5.0XB5.0XH1.4 (mm)/L0.197XB0.197XH0.055 (inch)

Preview

Download Datasheet

View All

RF SAW Filter

Part Number

Package

Application

Last Modified

805-RF246.0M-A

.

TYPE :

5.0 x 5.0 SMD

IF SAW Filter

Mar. 10, 2007

Low Loss IF SAW Filter

PART NUMBER :

805-RF246.0M-A

..

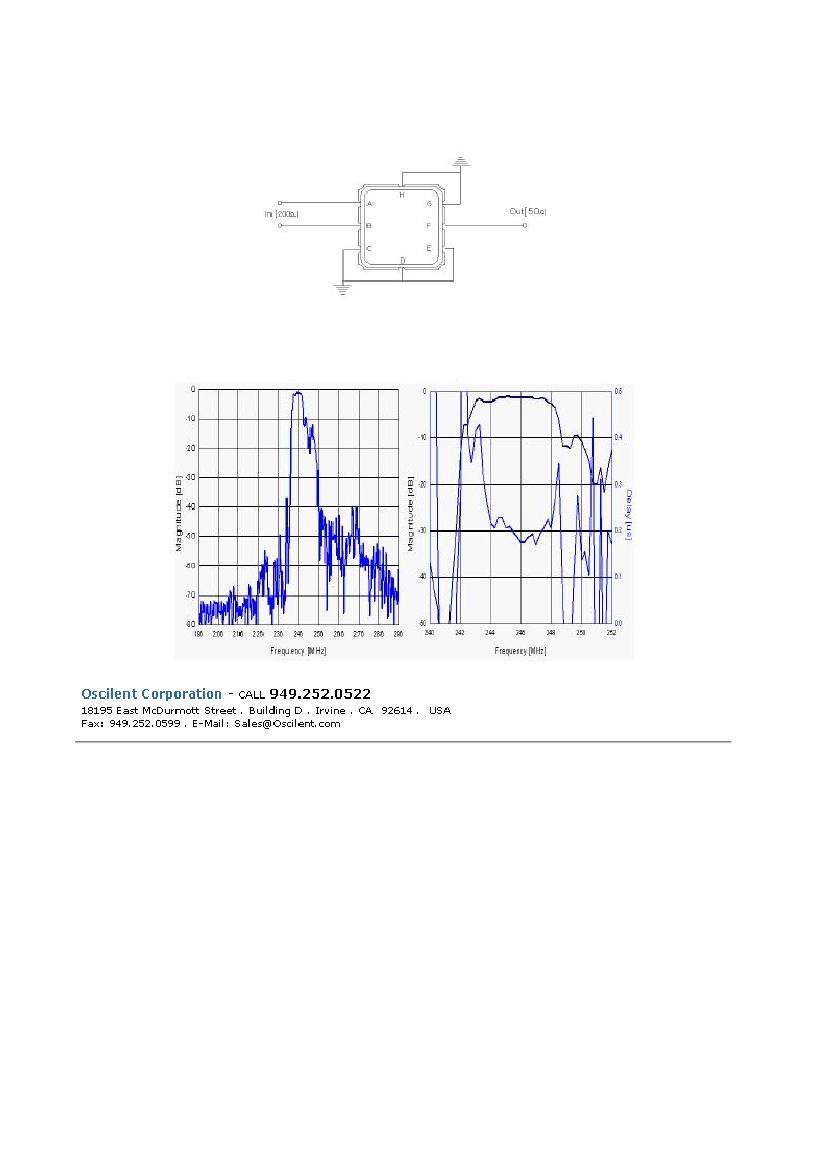

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Center Frequency (Fo)

Insertion Loss

Amplitude Ripple

Stop Band Attenuation

Condition

-

245.5~ 246.5 MHz

245.5~ 246.5 MHz-

100.0~ 226.0

226.0~ 236.0

256.0~ 266.0

266.0~ 268.0

268.0~ 500.0

Source Impedance (balanced ended)

Load Impedance (single ended)

Operating Tempature

Group Delay Ripple

Maxium Input Power

*No Matching Network

-

245.5~ 246.5 MHz

-

Minimum

-

40

7

25

35

-

-25

-

Typical

246.0

1.5

0.2

60

48

25

40

200

50

-

15

-

Maximum

-

2.5

0.4

-

+80

50

0

ohms

C

ns

dBm

48

Units

MHz

dB

.

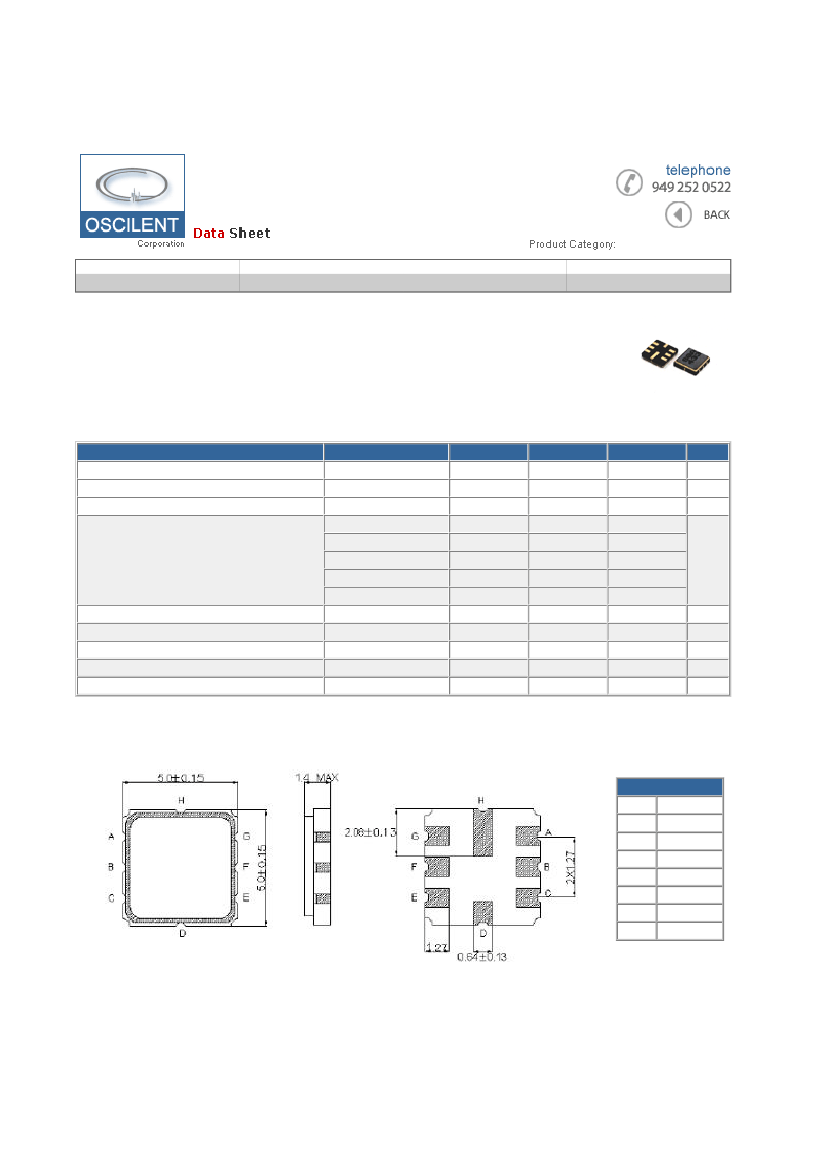

PACKAGE OUTLINE

(mm)

PIN LAYOUT

A

B

C

D

E

F

G

H

In

Ground

Out

Ground

TEST FIXTURE

Recommended Resources

What is a Boost circuit?

Digital display temperature detection circuit

Conductive tube controlled rechargeable long delay circuit

DC/DC converter regulator circuit 01

Ordinary battery charger circuit

LM324+TBA820 hands-free call circuit telephone circuit
