Oscilent Corporation IF SAW Filter | 805-IF360.0M-A
Page 1 of 3
IF SAW Filter
Part Number
Package
Application
Last Modified
805-IF360.0M-A
.
TYPE :
5.0 x 5.0 SMD
Mobile Communication
May 22 2003
IF Filter for GSM, PCN system
PART NUMBER :
805-IF360.0M-A
..
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Insertion Loss (a min.)
Relative Attenutation
-
-
Fo ± 0.4 ~ Fo ± 0.6 MHz
Fo ± 0.6 ~ Fo ± 0.8 MHz
Fo ± 0.8 ~ Fo ± 1.6 MHz
Fo ± 1.6 ~ Fo ± 5.0MHz
Fo ± 5.0 ~ Fo ± 30.0 MHz
Amplitude Ripple
Group Delay Ripple
FTC
Terminating Impedance
DC Voltage
Input Power
Operating Temperature
Storage Temperature
Fo ± 67.7 KHz
Fo ± 67.7 KHz
-
-
-
-
-
-
Minimum
-
-
29
42
42
45
50
-
-
-
-
-
-
-20
-35
Typical
360
4.8
38
53
55
55
57
0.8
0.7
0.032
50
0
5
-
-
Maximum
-
5.2
-
-
-
-
-
1.5
2.0
-
-
-
-
+75
+85
dB
us
ppm/ºC²
ohm
V
dBm
ºC
ºC
dB
Units
MHz
dB
* Maximum Rating (Ta = 25ºC)
** Custom SAW IF Filters available. Contact Oscilent for assistance.
.

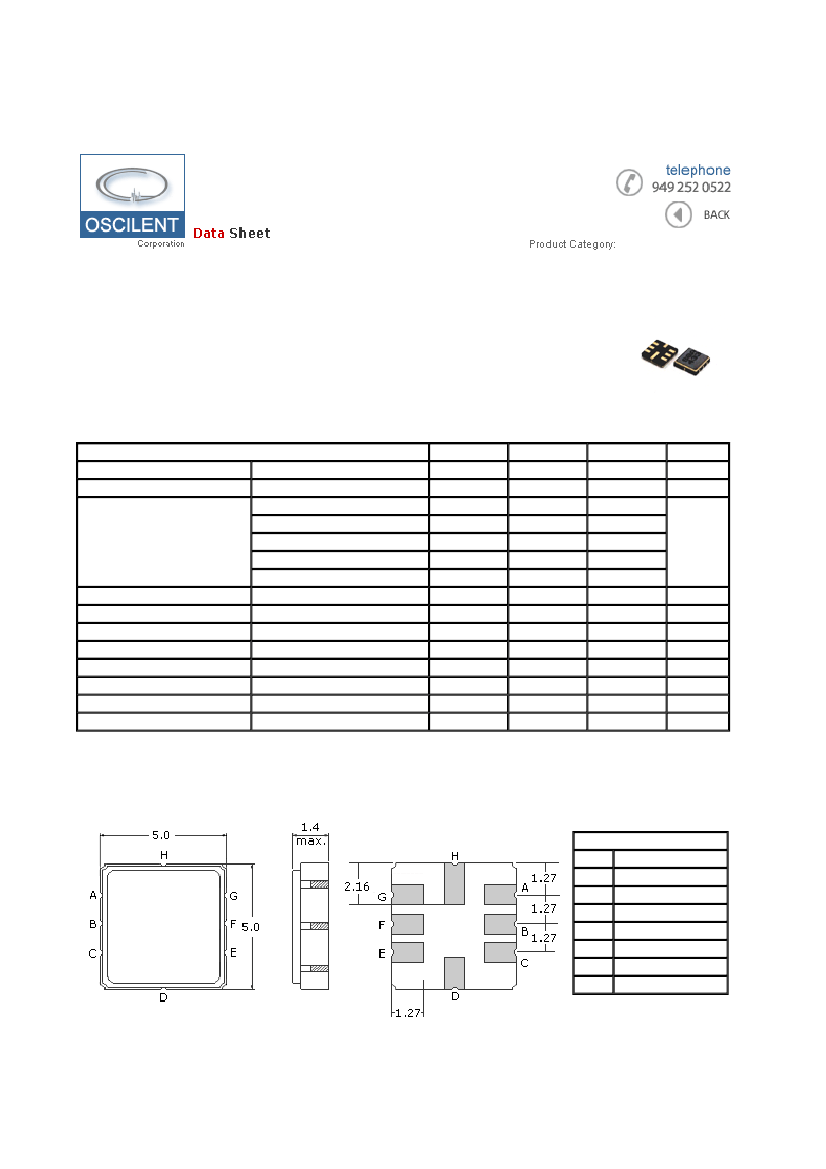

PACKAGE OUTLINE
(mm)
PIN LAYOUT
A
B
C
D
E
F
G
H
In
Ground
Ground
Ground
Out
Ground
Ground
Ground
TEST FIXTURE
http://www.oscilent.com/spec_pages/if_sawfilter/if_805_if360_0a.htm
12/28/2005
Oscilent Corporation IF SAW Filter | 805-IF360.0M-A
Page 2 of 3

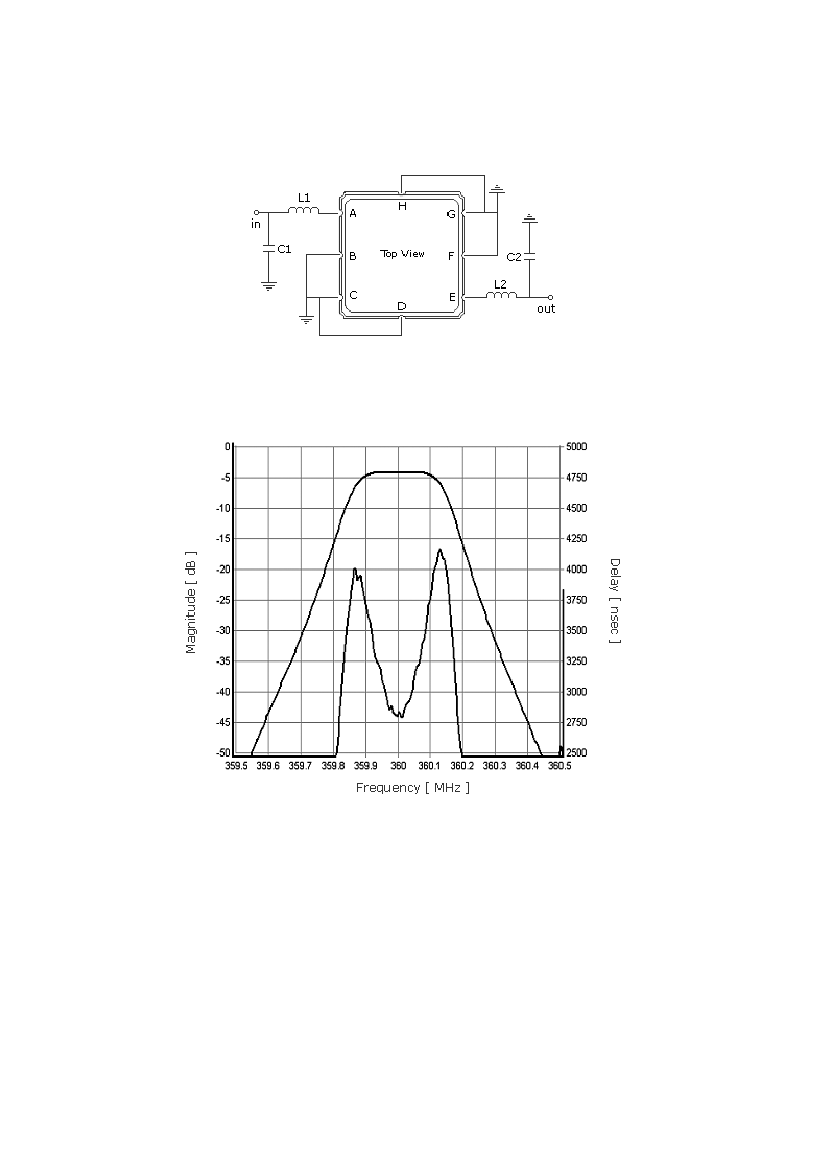

L1 = 68nH
L2 = 74nH
C1 = 7pF
C2 = 7pF
Source/Load Impedance = 50 ohms

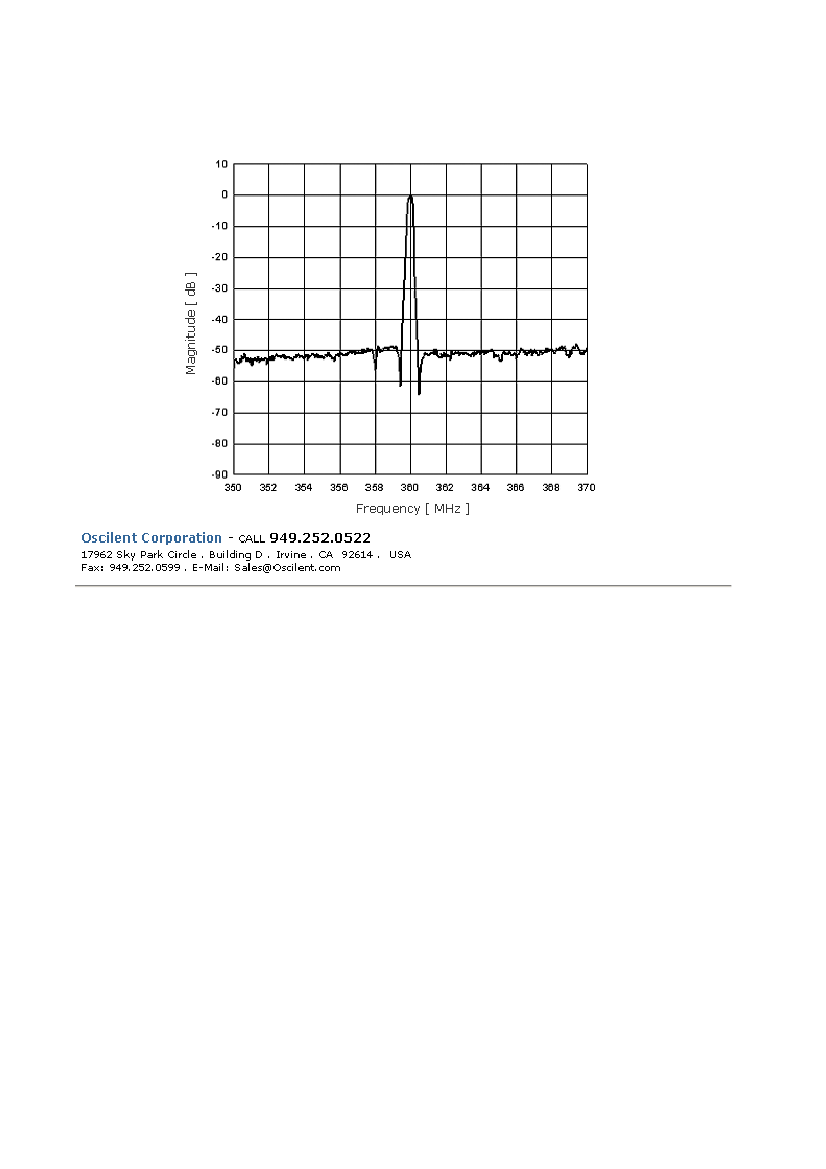

FREQUENCY RESPONSE
http://www.oscilent.com/spec_pages/if_sawfilter/if_805_if360_0a.htm
12/28/2005
Oscilent Corporation IF SAW Filter | 805-IF360.0M-A
Page 3 of 3
Part No.:
805-IF360.0M-A
Crystal Oscillators
|
Quartz Crystal
|
TCXO
|
VCXO
|
IF SAW Filter
|
RF SAW Filter
|
Ceramic Resonator
Crystal Filter
|
Ceramic Filter
|
SAW Filter / SAW Devices
|
Site Map
http://www.oscilent.com/spec_pages/if_sawfilter/if_805_if360_0a.htm
12/28/2005
