MJ02-124SFT-1

Description
Board Connector, 124 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug
CategoryThe connector    The connector
File Size479KB，4 Pages
ManufacturerJapan Aviation Electronics Industry Limited
Environmental Compliance
Download Datasheet Parametric Compare View All

MJ02-124SFT-1 Overview

Board Connector, 124 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug

MJ02-124SFT-1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresPOLARIZED
Board mount optionsSPLIT BOARD LOCK
body width0.346 inch
subject depth0.453 inch
body length3.173 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeSTAGGERED
Contact resistance30 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Filter functionNO
IEC complianceNO
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.075 inch
Plug informationMJ02-124RMT-1
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing1.905 mm
Plating thickness4u inch
polarization keyPOLARIZED KEY
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts124
Base Number Matches1

Preview

Download Datasheet

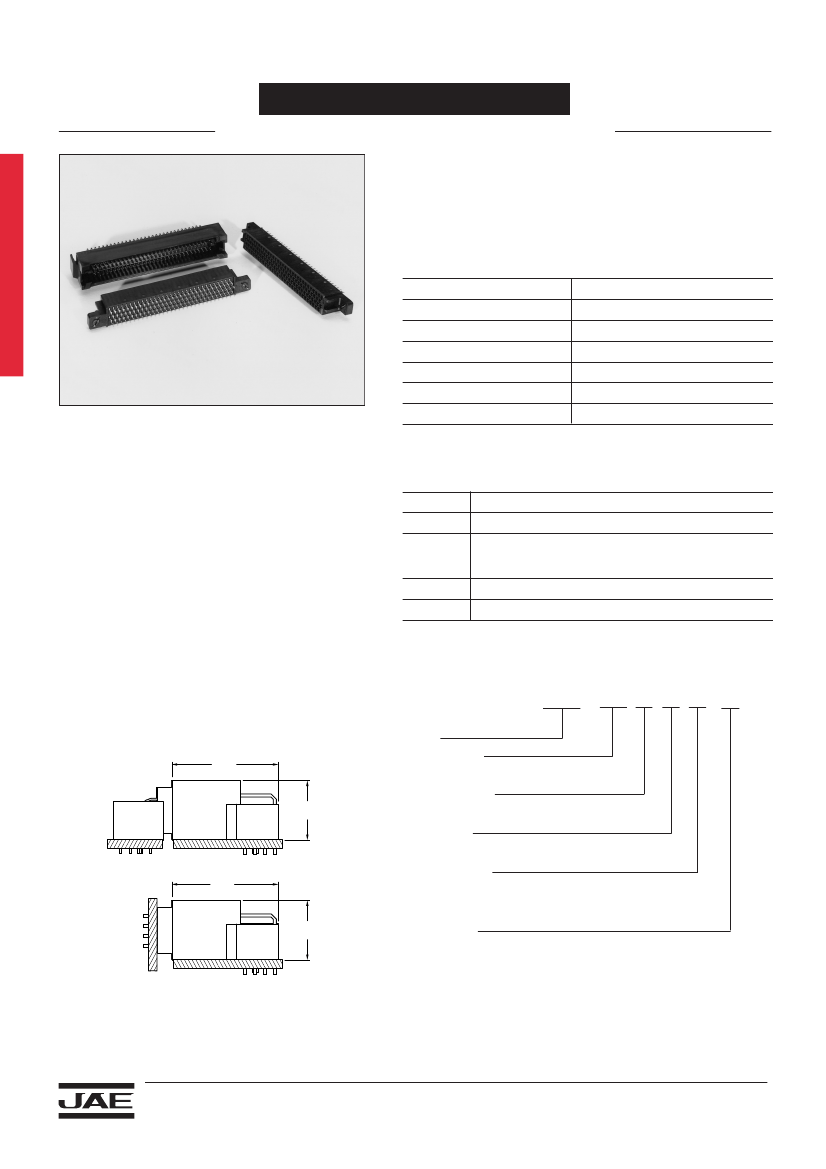

MJ02 SERIES CONNECTORS
1.0mm (.039") Contact Spacing, PCB-to-PCB Connectors
• • • • • • • • • • • • • •
The MJ02 Series is a board-to-board connector, ideal for switch-
boards, communications, medical and measuring equipment.
GENERAL SPECIFICATIONS
Number of Contacts
Contact Spacing
Current Rating
Dielectric Withstanding Voltage
Insulation Resistance
Contact Resistance
Operating Temperature
100, 124, 148, 180 (Note 1)
1.0mm (.039")
1 Amp
1000 VAC r.m.s. (for one minute)
5000 megohms min.
30 milliohms max.
-55°C to +125°C
FEATURES
• Smooth mating is ensured by the 2.2mm (.087")
guidance lead in the insulator taper area on
the pin header and socket
• Mechanism absorbs up to
±0.3mm
(.012")
mis-mating with wide contacts (pin connector)
Ideal for multiple mounting
• Wide pin header insulator body
withstands twisting
• Straight socket withstands flux rising
• Mis-mating can be prevented by attaching
optional polarizing keys at both ends of
the connector
Note 1: 180 contacts for vertical contact combination (right angle, pin header
and straight socket) only.
MATERIALS AND FINISHES
Description
Insulator
Contact
Materials/Finishes
Glass-filled PBT (Black)
Copper Alloy:
Contact: Gold over Nickel 0.1µm (.000004")
Terminal: Tin-Lead over Nickel
Copper Alloy: Tin
Glass-filled PBT (Black)
Hook Pin
Locator
Note : Locators are used for angled socket and angled pin header only.
ORDERING INFORMATION
MJ02 – ***
*
*
* – 1
Connector Profile (Ref.)
20.2
(.795)
Series
No. of Contacts
100, 124, 148, 180
Termination Style
11.2
(.441)
S – Straight,
Contact Type
F – Socket,
R – Right Angle
M – Pin
20.2
(.795)
Connection Style
T – Through Hole
M – Compliant Pin
11.2
(.441)
Contact Finish
1 – Connecting area: Gold plating 0.1µm (.000004") min.
over Nickel
Terminal area: Tin over Nickel
Dimensions and specifications subject to change without notice.
Dimensions in mm (inches).
102
