805-005-07ZL8-1SB: DescriptionReceptacles With PCB or Solder Cup Contacts; File Size362KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

805-005-07ZL8-1SB Overview

Receptacles With PCB or Solder Cup Contacts

Preview

Download Datasheet

View All

805-005

-07

Shell Style

CAGE Code 06324

Printed in U.S.A.

Series 805

Series 805 “Mighty Mouse”

Triple-Start

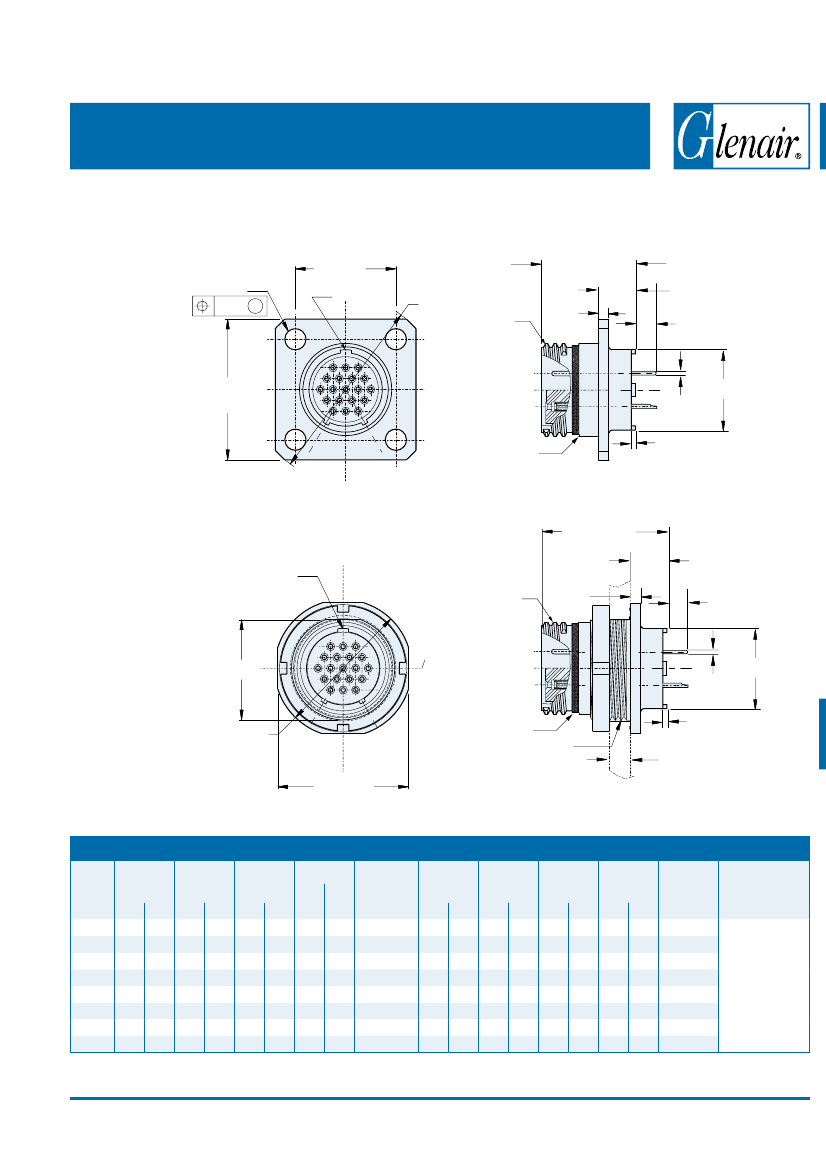

Series 805 Receptacles With PCB or Solder Cup Contacts

These receptacles

feature a low

proﬁle shell for minimum protrusion

inside enclosures. Contacts are non-

removable. Connectors are backﬁlled

with epoxy for a watertight seal.

Two Shell Styles:

jam nut with o-ring

for rear panel mounting, or square

ﬂange.

PCB Contacts

feature gold-plated

tails for solder termination to rigid or

ﬂexible circuits.

Solder Cup Contacts

are factory-

installed and fully sealed with epoxy.

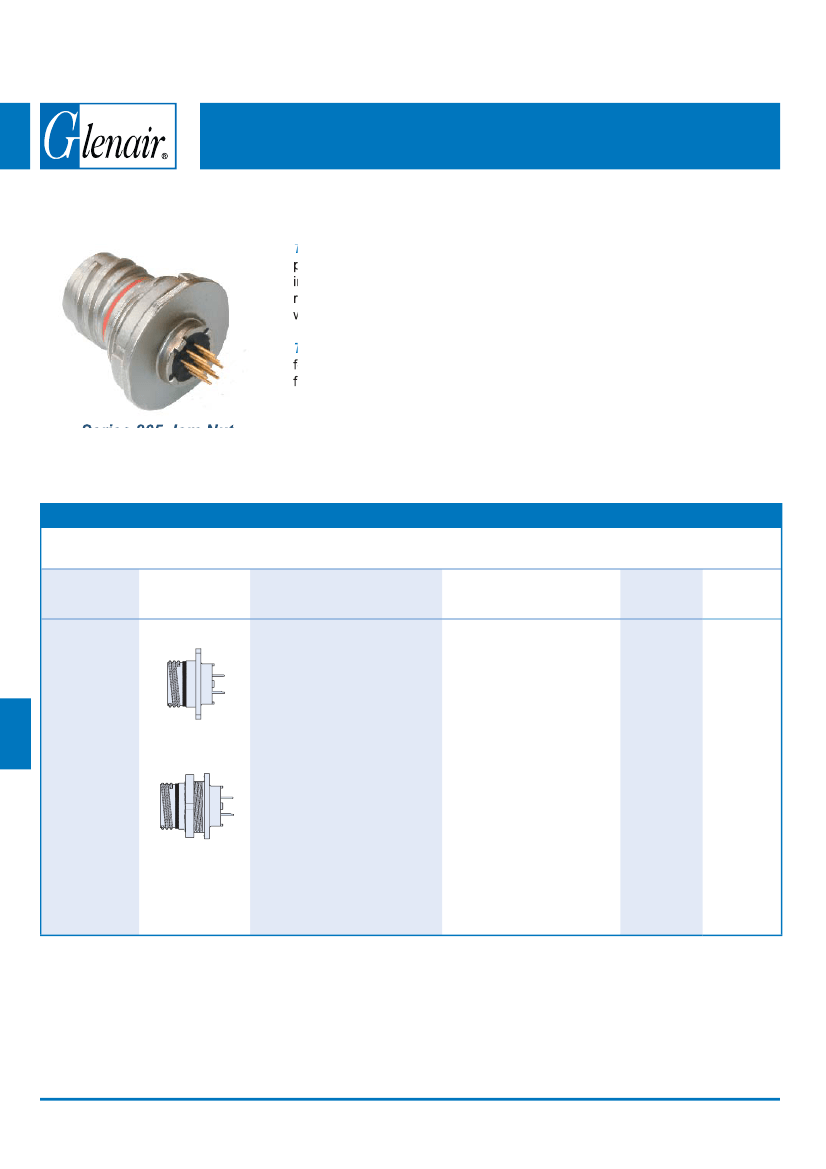

Series 805 Jam Nut

PCB Receptacle Connector

HOW TO ORDER

Sample Part Number

Shell Material / Finish

Aluminum / Black Anodize

10-13

Shell Size- Insert

Arrangement

8-1

8-4

8-7

9-1

9-10

10-13

11-4

11-19

12-26

15-2

1 #16 Contact

4 #23 Contacts

7 #23 Contacts

1 #12 Contact

10 #23 Contacts

13 #23 Contacts

4 #16 Contacts

19 #23 Contacts

26 #23 Contacts

2 #12 Contacts

15-37

37 #23 Contacts

18-55

55 #23 Contacts

19-85

85 #23 Contacts

Contact

Type

Pin,

PC Tail

Shell Key

Position

Position A

(Normal)

Series

805-005

Receptacle, with

Solder Cup or

Printed Circuit

Board Contacts

Aluminum / Electroless Nickel

Socket,

PC Tail

Position B

-02

Square Flange

Aluminum / Cadmium with Olive

Drab Chromate

Position C

Aluminum / Zinc-Nickel with

Olive Drab Chromate

Pin,

Solder Cup

Position D

ZNU

-07

Jam Nut

Aluminum / Zinc-Nickel with

Black Chromate

Socket,

Solder Cup

Stainless Steel / Passivated

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

H-10

Rev. 05-APR-2007
