ST330S04P1L datasheet, PDF - EEWORLD Datasheet

ST330S04P1L: DescriptionSilicon Controlled Rectifier, 520 A, 400 V, SCR, TO-209AE; CategoryAnalog mixed-signal IC Trigger device; File Size212KB，8 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

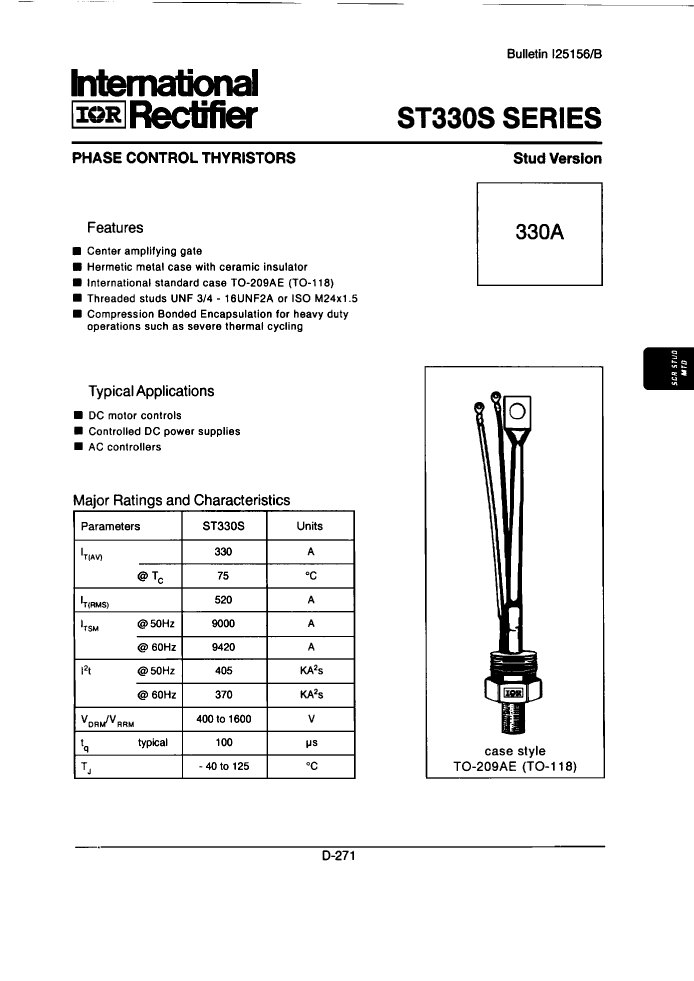

ST330S04P1L Overview

Silicon Controlled Rectifier, 520 A, 400 V, SCR, TO-209AE

Parameter Name	Attribute value
package instruction	POST/STUD MOUNT, O-MUPM-H2
Reach Compliance Code	unknow

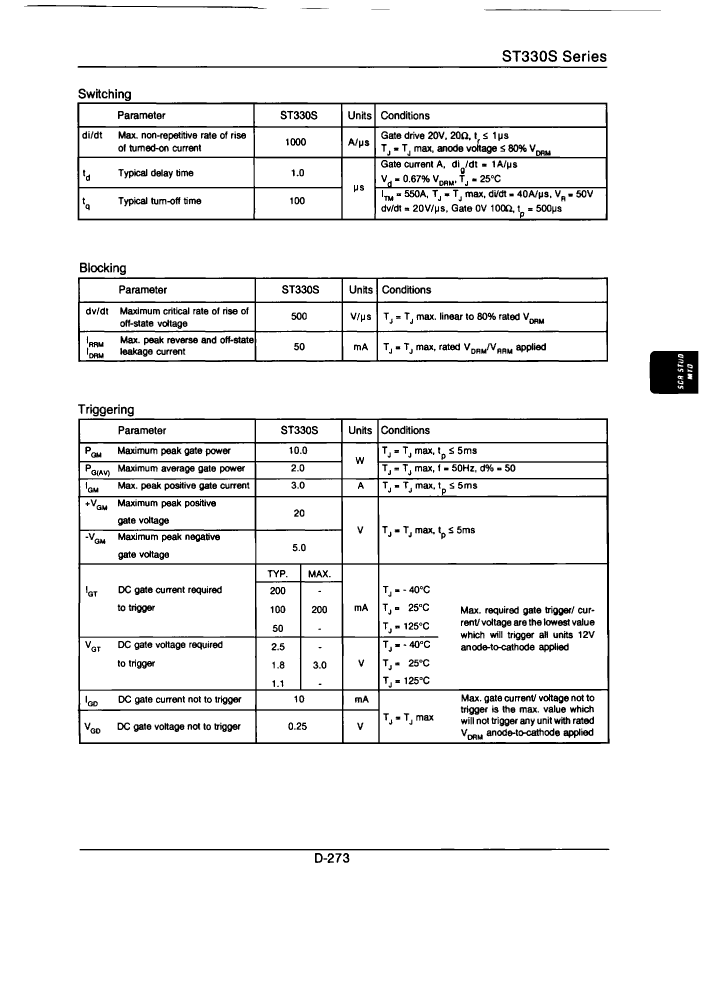

Nominal circuit commutation break time	100 µs
Configuration	SINGLE
Maximum DC gate trigger current	200 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	600 mA

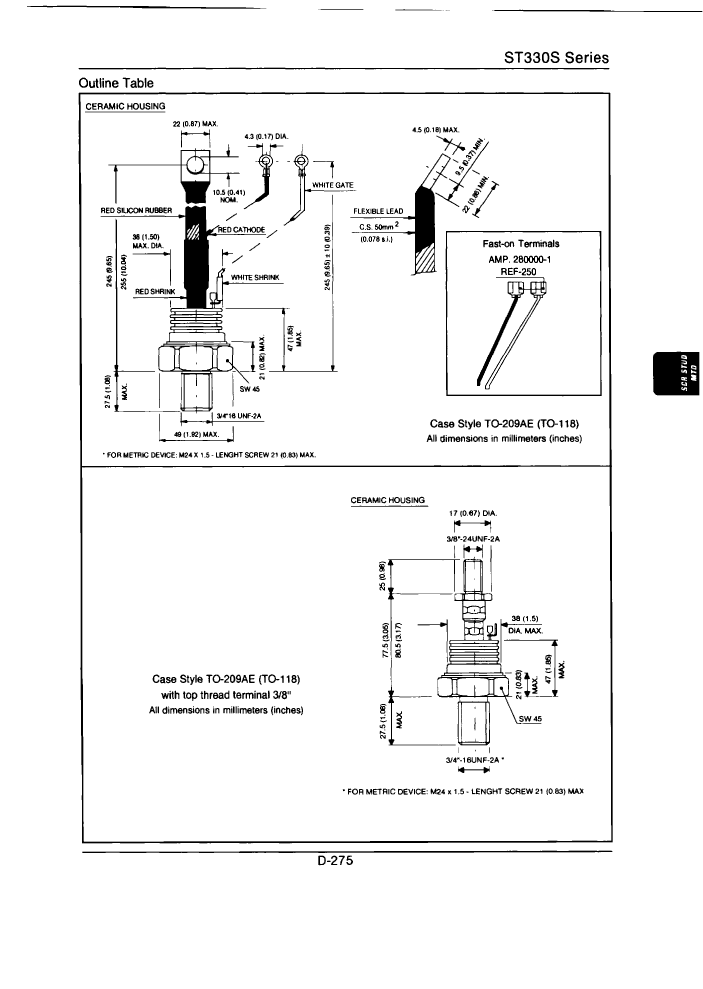

JEDEC-95 code	TO-209AE
JESD-30 code	O-MUPM-H2
Maximum leakage current	50 mA

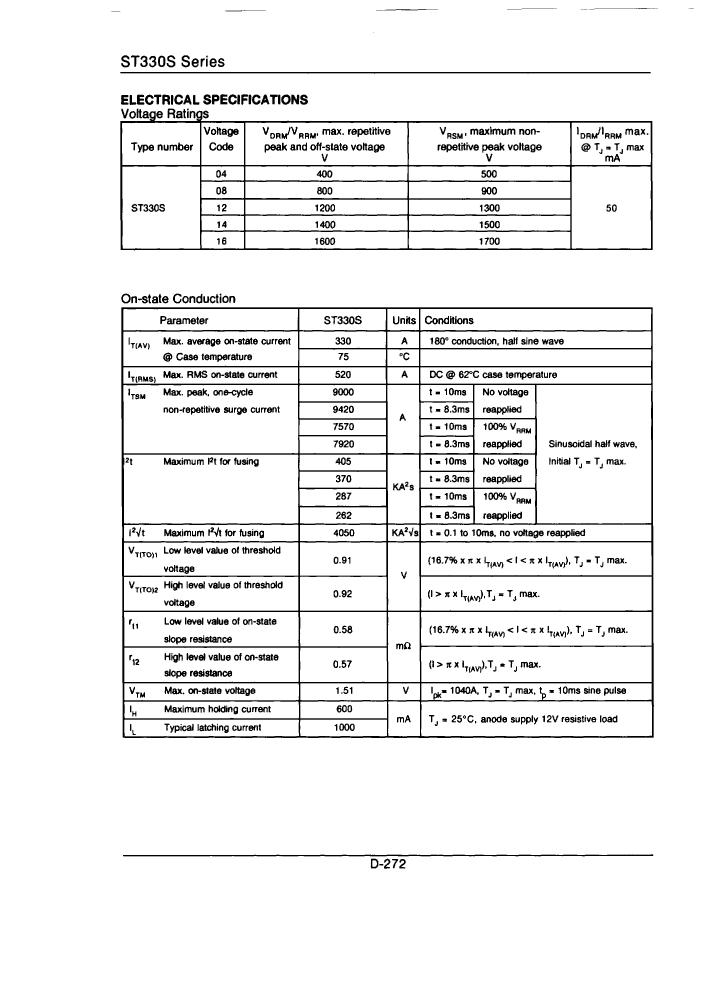

On-state non-repetitive peak current	9000 A
Number of components	1
Number of terminals	2
Maximum on-state current	330000 A

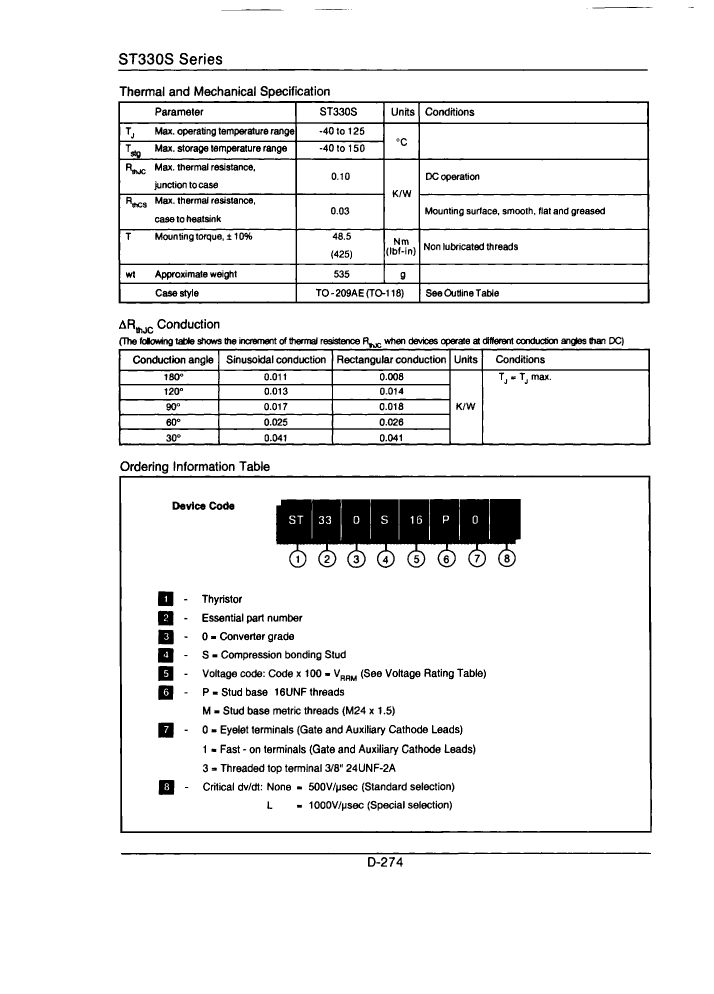

Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum rms on-state current	520 A
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Trigger device type	SCR
Base Number Matches	1
