804-006-07ZL6-1CA datasheet, PDF

Datasheet> All Categories > The connector> The connector> 804-006-07ZL6-1CA

804-006-07ZL6-1CA: Description1 CONTACT(S), STAINLESS STEEL, MALE, CIRCULAR CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size449KB，3 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

804-006-07ZL6-1CA Overview

1 CONTACT(S), STAINLESS STEEL, MALE, CIRCULAR CONNECTOR, SOLDER, RECEPTACLE

804-006-07ZL6-1CA Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compli
Other features	POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	HERMETIC
Shell surface	NICKEL PLATED
Shell material	STAINLESS STEEL
Housing size	6
Termination type	SOLDER
Total number of contacts	1

Preview

Download Datasheet

View All

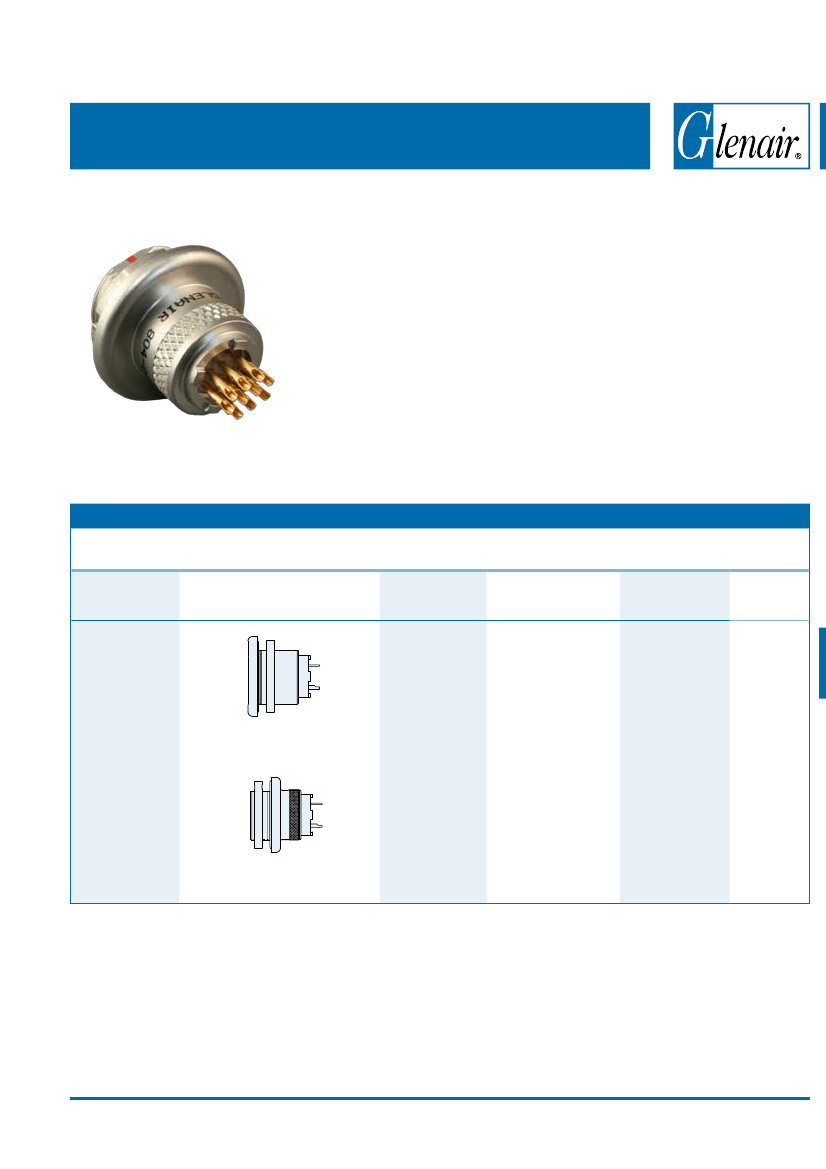

Series 804 “Mighty Mouse”

Push-Pull Quick-Disconnect

Series 804 Hermetic Receptacles

feature 304L stainless steel shells,

fused vitreous glass insulators

and gold-plated Alloy 52 iron alloy

contacts.

1 X 10

-6

cc/second

maximum helium

leak rate when tested at 1 atmosphere

vacuum.

Solder Cup Contacts

accept up to

#22 AWG stranded wire. Or, choose

Printed Circuit Board Contacts

for

attachment to rigid boards or flexible

circuits.

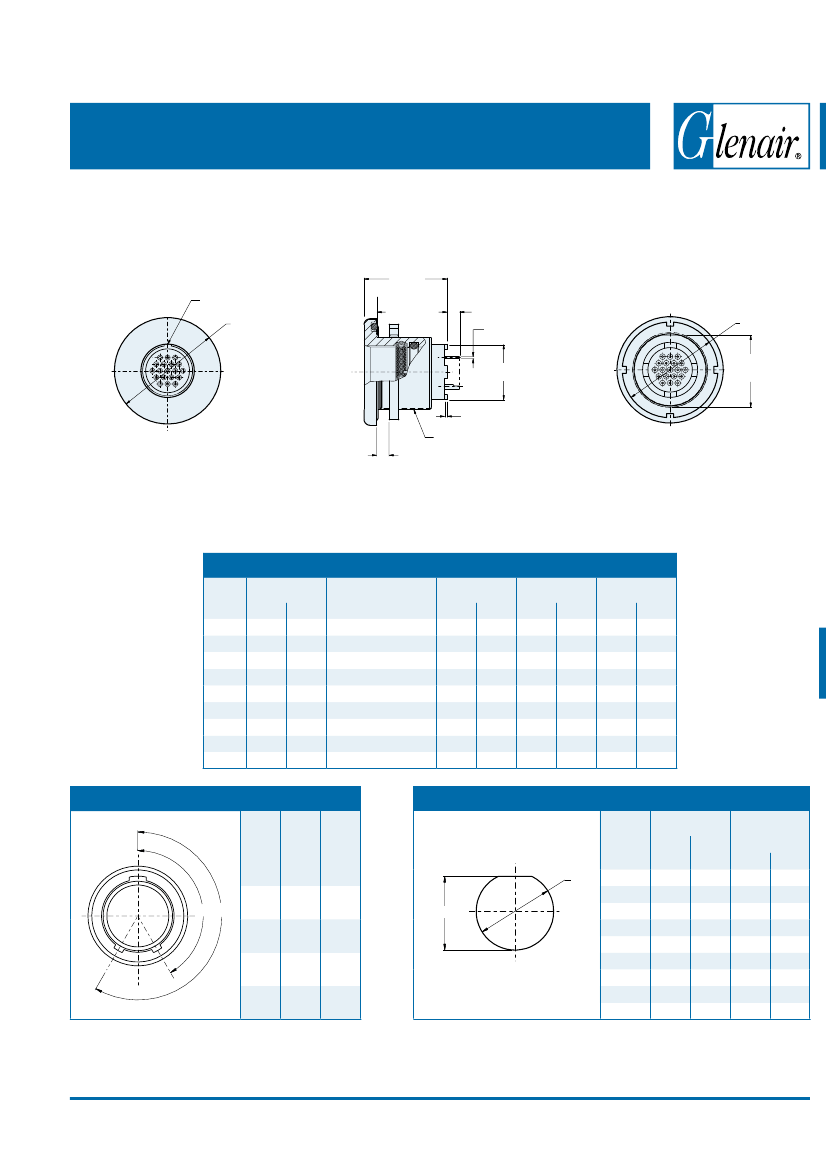

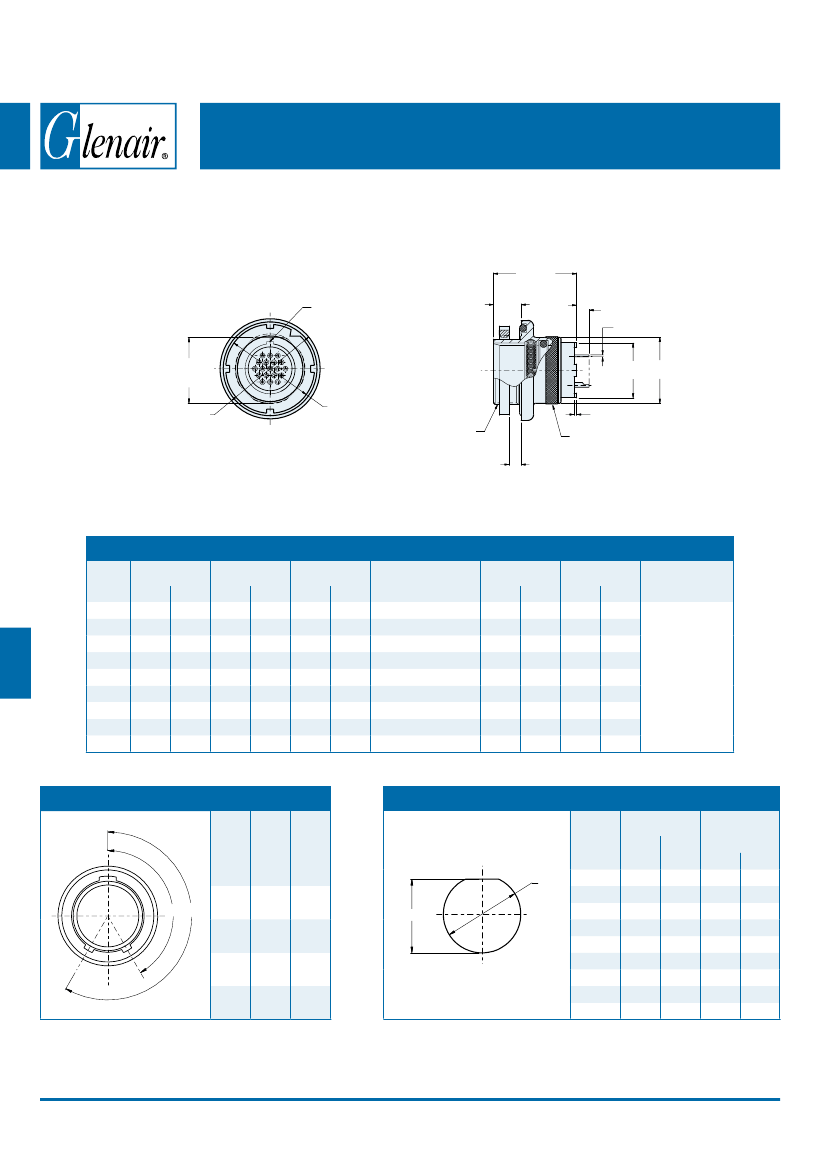

Series 804 Hermetic

Jam Nut Mount

Two Shell Styles

are available:

Style 00

for front panel mounting, and

Style 07

for rear panel mounting.

hoW to oRDER

804-006

Series

804-006

-07

Shell Style

Sample Part Number

9-19

Contact type

Shell Key

Position

omit

Shell Material /

Finish

Shell Size/Insert

5-3

6-1

6-4

6-7

7-1

7-10

8-13

9-4

9-19

10-26

12-2

12-37

14-55

15-85

3 #23

1 #16

4 #23

7 #23

1 #12

10 #23

13 #23

4 #16

19 #23

26 #23

2 #12

37 #23

55 #23

Hermetic

Receptacles with

Printed Circuit

Board Contacts or

Solder Cup

Contacts

Stainless Steel /

Passivated

Pin, Solder Cup

Jam Nut, Front Panel

-00

Stainless Steel/

Nickel Plated

Pin, PC Tail

for Single

Master Key

Pos. A

(Normal)

Pos. B

Pos. C

Pos. D

-07

Jam Nut, Rear Panel

85 #23

www.glenair.com

CAGE Code 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

Rev. 20-AUG-2008

G-13
