BCW29LT3 datasheet, PDF - EEWORLD Datasheet

BCW29LT3: Description100mA, 32V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB; CategoryDiscrete semiconductor The transistor; File Size224KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

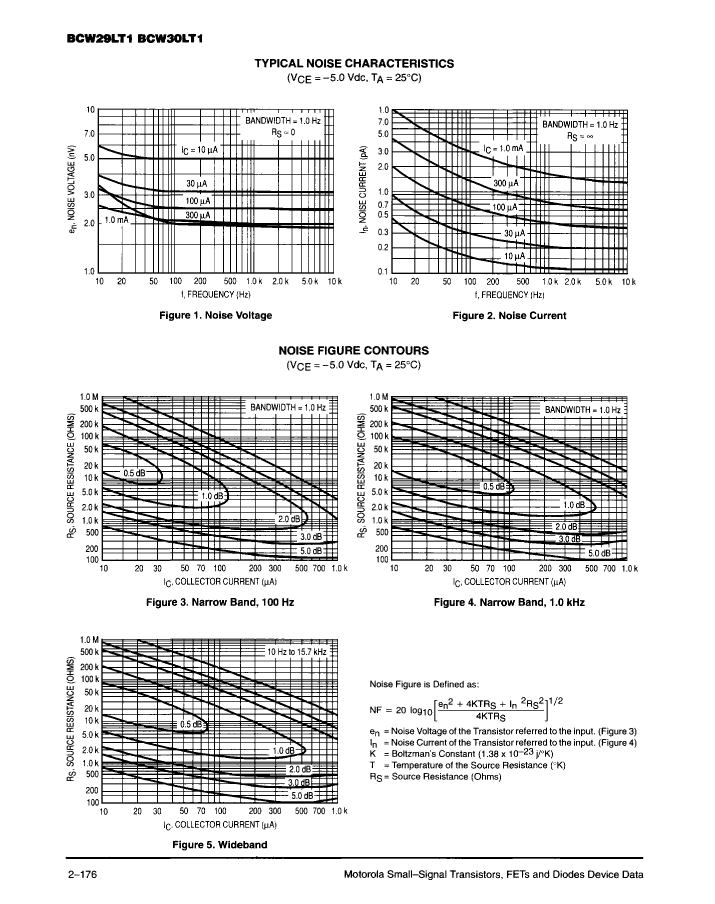

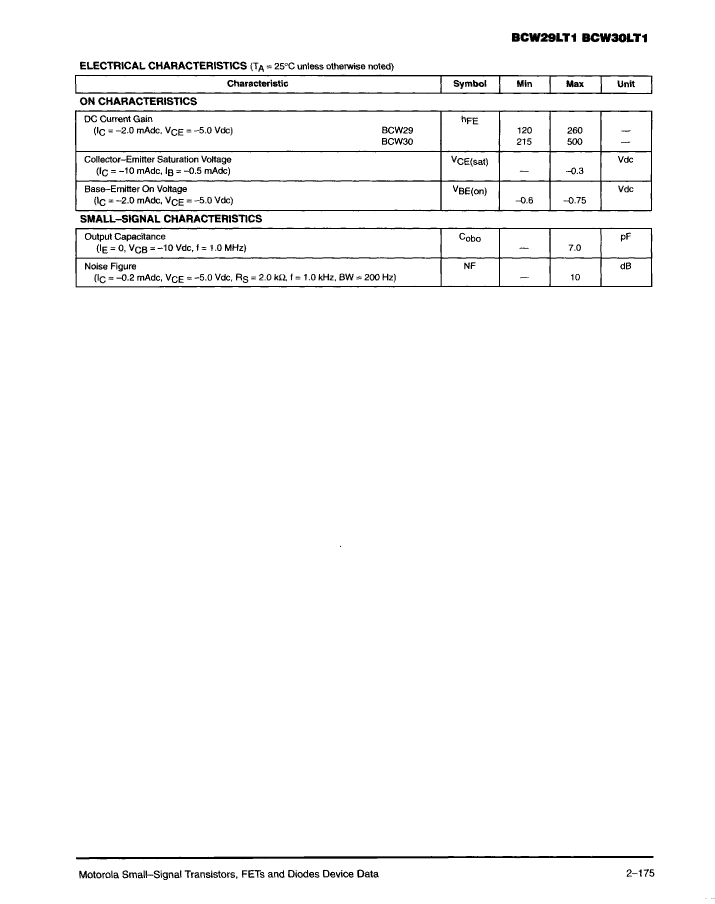

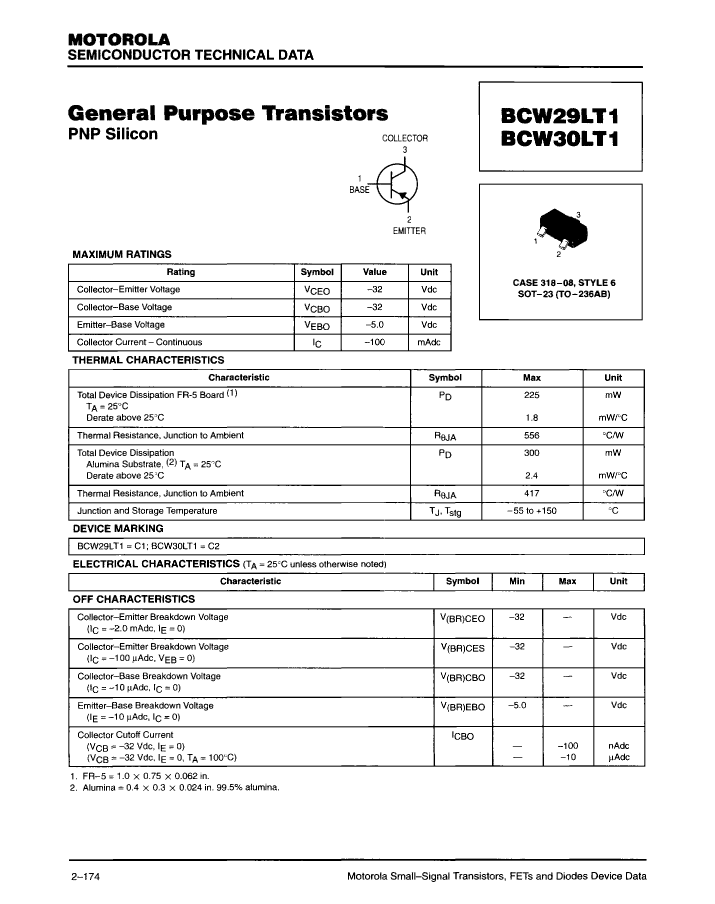

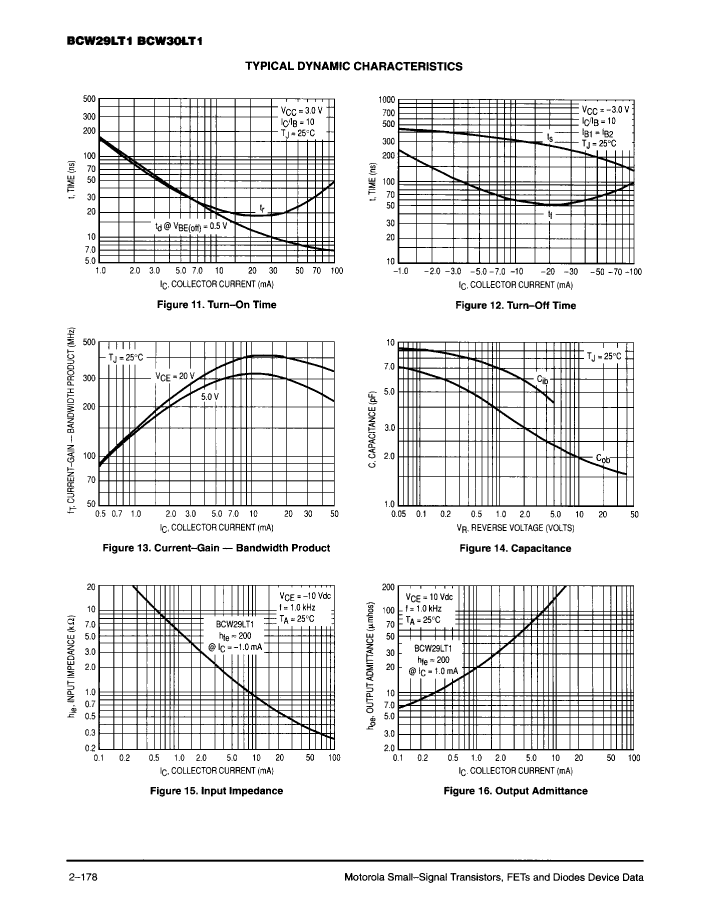

BCW29LT3 Overview

100mA, 32V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.1 A
Collector-based maximum capacity	7 pF
Collector-emitter maximum voltage	32 V
Configuration	SINGLE
Minimum DC current gain (hFE)	120
JEDEC-95 code	TO-236AB
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Maximum power consumption environment	0.225 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Transistor component materials	SILICON
VCEsat-Max	0.3 V
Base Number Matches	1

	BCW29LT3	BCW30LT3
Description	100mA, 32V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB	Small Signal Bipolar Transistor, 0.1A I(C), 32V V(BR)CEO, 1-Element, PNP, Silicon, TO-236AB
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Maximum collector current (IC)	0.1 A	0.1 A
Collector-based maximum capacity	7 pF	7 pF
Collector-emitter maximum voltage	32 V	32 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	120	215
JEDEC-95 code	TO-236AB	TO-236AB
JESD-30 code	R-PDSO-G3	R-PDSO-G3
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP
Maximum power consumption environment	0.225 W	0.225 W
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Transistor component materials	SILICON	SILICON
VCEsat-Max	0.3 V	0.3 V
Base Number Matches	1	1
