SY100ELT22ZCTR datasheet, PDF - EEWORLD Datasheet

SY100ELT22ZCTR: DescriptionTTL/CMOS to PECL Translator, 2 Func, Complementary Output, ECL, PDSO8,; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size85KB，3 Pages; ManufacturerSynergy Semiconductor Corp

Download Datasheet Parametric Compare View All

SY100ELT22ZCTR Overview

TTL/CMOS to PECL Translator, 2 Func, Complementary Output, ECL, PDSO8,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
maximum delay	0.6 ns
Interface integrated circuit type	TTL/CMOS TO PECL TRANSLATOR
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
Number of digits	1
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-EMITTER
Output latch or register	NONE
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.2 V
Nominal supply voltage	5 V
surface mount	YES
technology	ECL
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

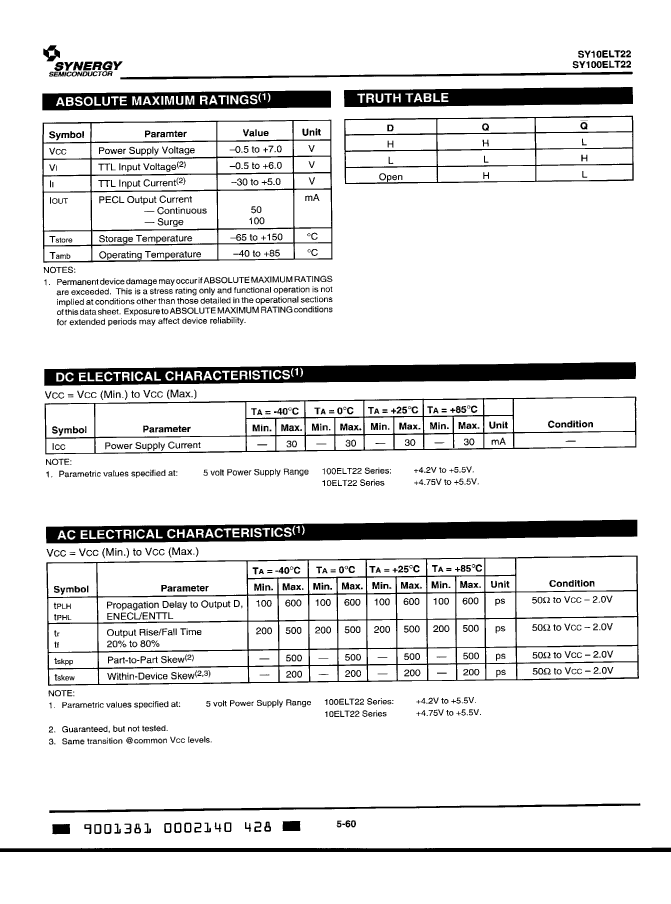

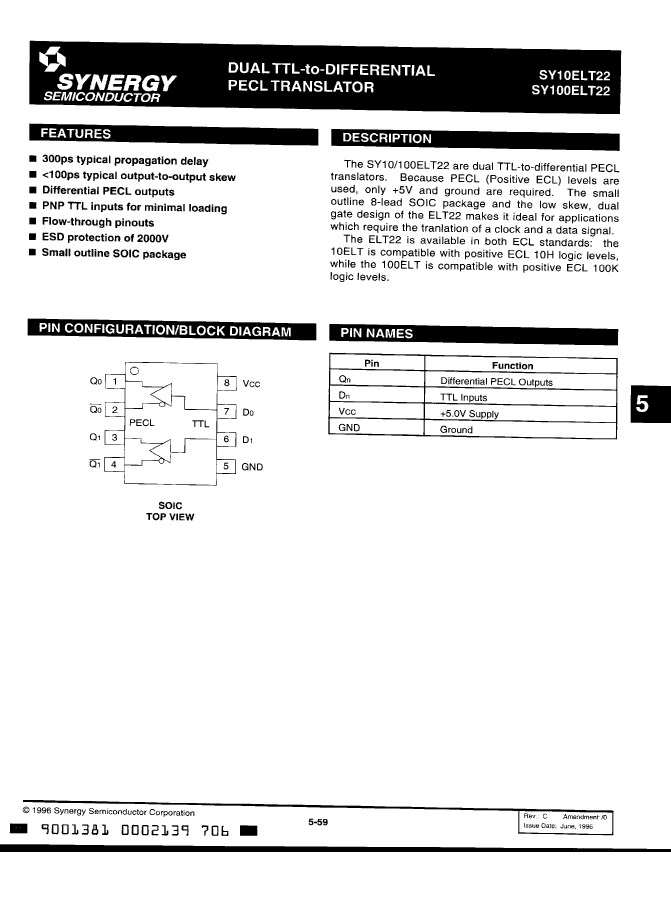

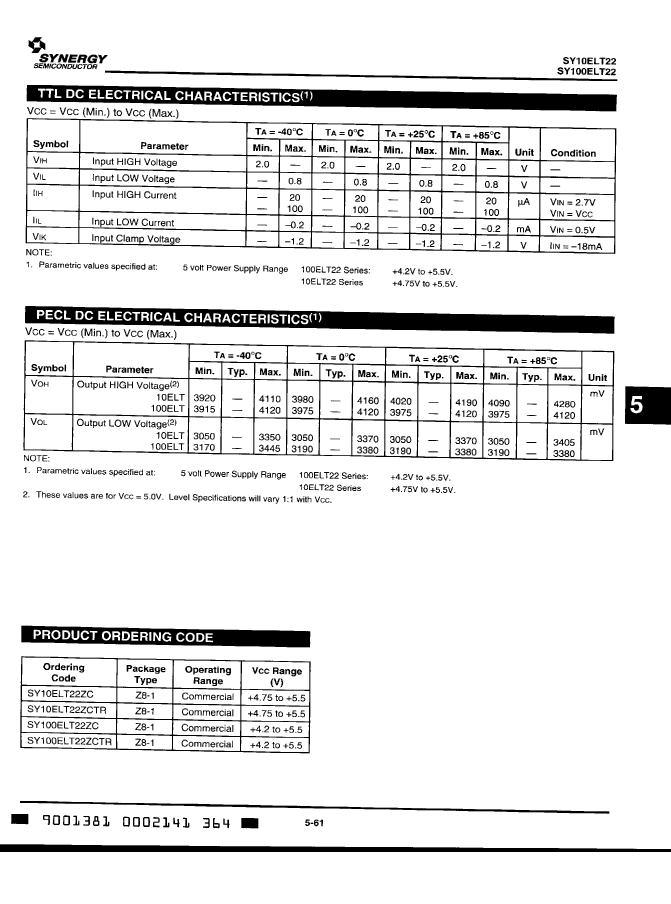

This Material Copyrighted By Its Respective Manufacturer

	SY100ELT22ZCTR	SY10ELT22ZCTR
Description	TTL/CMOS to PECL Translator, 2 Func, Complementary Output, ECL, PDSO8,	TTL/CMOS to PECL Translator, 2 Func, Complementary Output, ECL, PDSO8,
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	unknown	unknown
maximum delay	0.6 ns	0.6 ns
Interface integrated circuit type	TTL/CMOS TO PECL TRANSLATOR	TTL/CMOS TO PECL TRANSLATOR
JESD-30 code	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0
Number of digits	1	1
Number of functions	2	2
Number of terminals	8	8
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER
Output latch or register	NONE	NONE
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Encapsulate equivalent code	SOP8,.25	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.2 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	ECL	ECL
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
