SY10EL33LZCTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SY10EL33LZCTR

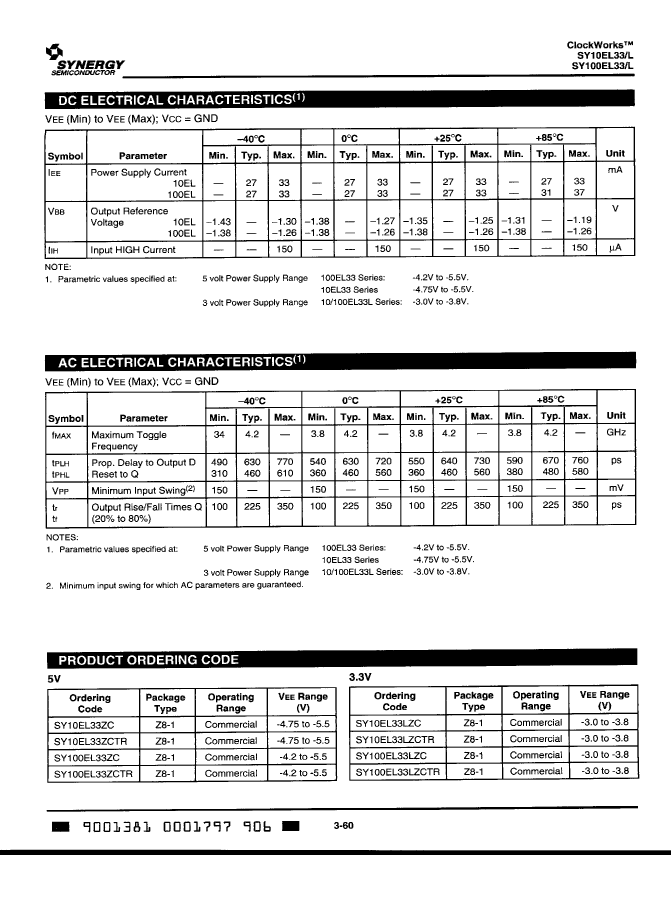

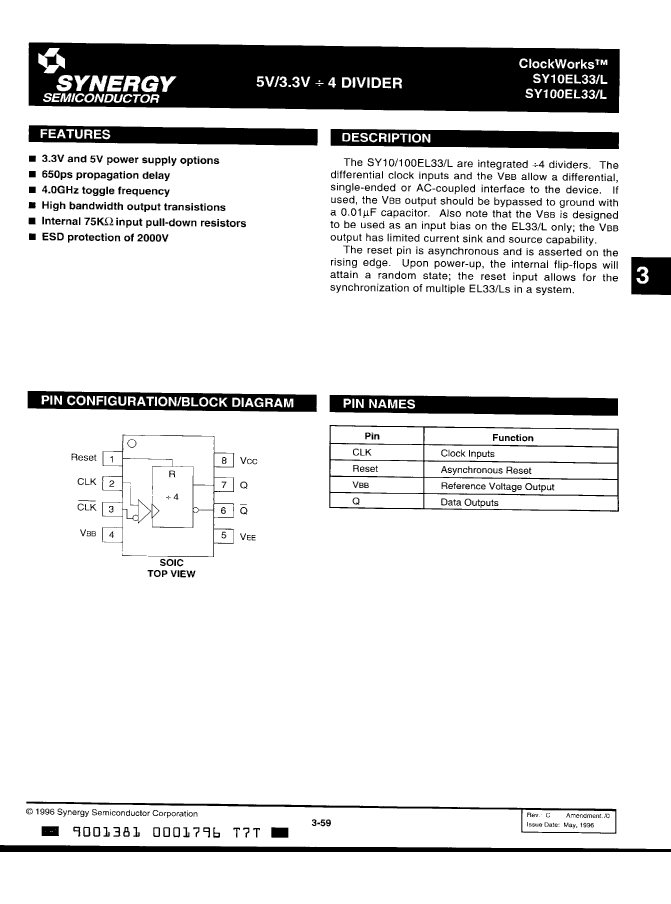

SY10EL33LZCTR: DescriptionPrescaler, 10EL Series, 1-Func, Bipolar, PDSO8,; Categorylogic logic; File Size59KB，2 Pages; ManufacturerSynergy Semiconductor Corp

Download Datasheet Parametric Compare View All

SY10EL33LZCTR Overview

Prescaler, 10EL Series, 1-Func, Bipolar, PDSO8,

SY10EL33LZCTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
series	10EL
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
Logic integrated circuit type	PRESCALER
Maximum Frequency@Nom-Sup	3800000000 Hz
Number of data/clock inputs	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-EMITTER
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	-3.3 V
Maximum supply current (ICC)	33 mA
propagation delay (tpd)	0.58 ns
Certification status	Not Qualified
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
minfmax	3800 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

SY10EL33LZCTR Related Products

	SY10EL33LZCTR	SY10EL33LZC	SY100EL33LZC	SY100EL33LZCTR	SY10EL33ZCTR	SY100EL33ZC	SY100EL33ZCTR
Description	Prescaler, 10EL Series, 1-Func, Bipolar, PDSO8,	Prescaler, 10EL Series, 1-Func, Bipolar, PDSO8,	Prescaler, 100EL Series, 1-Func, Bipolar, PDSO8,	Prescaler, 100EL Series, 1-Func, Bipolar, PDSO8,	Prescaler, 10EL Series, 1-Func, Bipolar, PDSO8,	Prescaler, 100EL Series, 1-Func, Bipolar, PDSO8,	Prescaler, 100EL Series, 1-Func, Bipolar, PDSO8,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow	unknow
series	10EL	10EL	100EL	100EL	10EL	100EL	100EL
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	PRESCALER	PRESCALER	PRESCALER	PRESCALER	PRESCALER	PRESCALER	PRESCALER
Number of data/clock inputs	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP	SOP
Encapsulate equivalent code	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
power supply	-3.3 V	-3.3 V	-3.3 V	-3.3 V	-5.2 V	-4.5 V	-4.5 V
Maximum supply current (ICC)	33 mA	33 mA	37 mA	37 mA	33 mA	37 mA	37 mA
propagation delay (tpd)	0.58 ns	0.58 ns	0.58 ns	0.58 ns	0.58 ns	0.58 ns	0.58 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
minfmax	3800 MHz	3800 MHz	3800 MHz	3800 MHz	3800 MHz	3800 MHz	3800 MHz
Maximum Frequency@Nom-Sup	3800000000 Hz	3800000000 Hz	3800000000 Hz	3800000000 Hz	3800000000 Hz	-	-
Base Number Matches	1	1	1	1	-	-	-
package instruction	-	-	SOP, SOP8,.25	SOP, SOP8,.25	-	SOP, SOP8,.25	SOP, SOP8,.25
