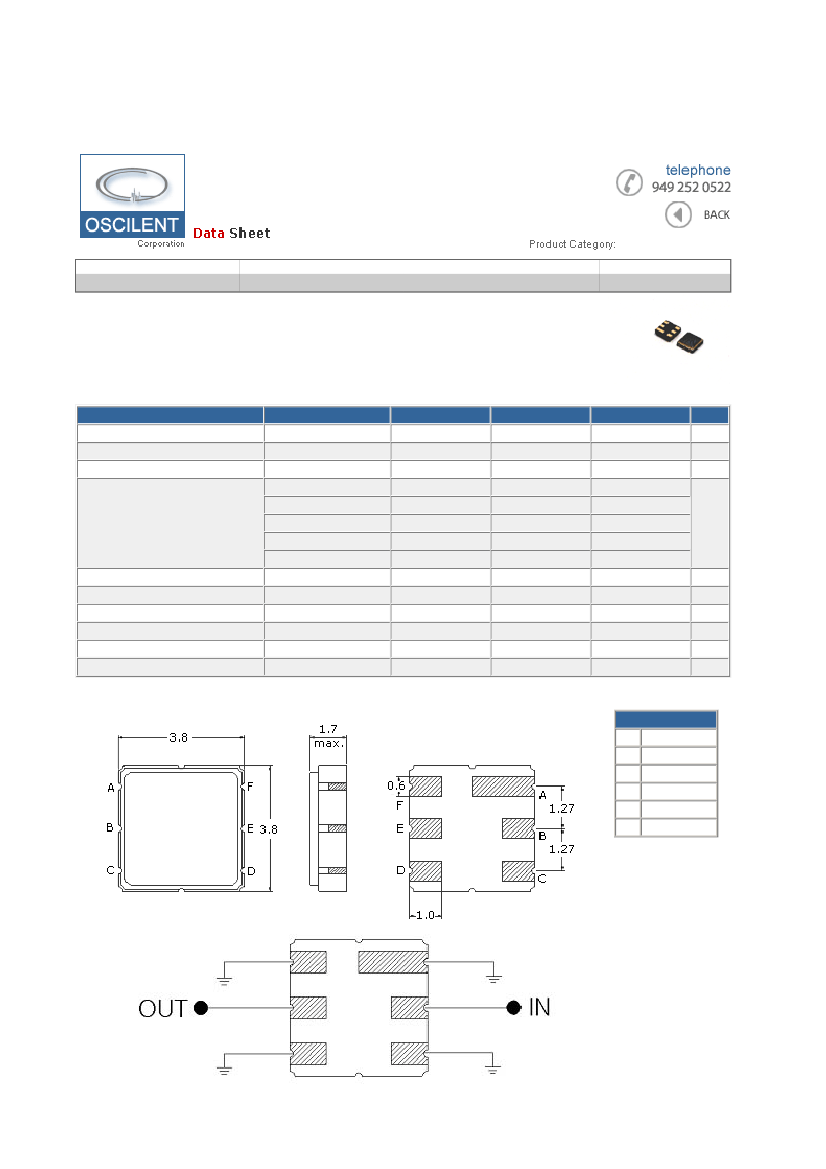

Oscilent Corporation RF SAW Filter | 803-RF939.0M-A
Page 1 of 3
RF SAW Filter
Part Number
Package
Application
Last Modified
803-RF939.0M-A
TYPE :
3.8 x 3.8 SMD
Wireless Communication
July 12, 2007
939.0 MHz RF SAW Filter for Wireless
PART NUMBER :
803-RF939.0M-A
OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS
PARAMETERS
Center Frequency (Fo)
Insertion Loss
Amplitude Ripple
Stopband Attenuation
Condition
-
936.0 ~ 942.0 MHz
936.0 ~ 942.0 MHz
DC ~ 840.0 MHz
840.0 ~ 894.0 MHz
984.0 ~ 1000.0 MHz
1000.0 ~ 1500.0 MHz
1500.0 ~ 2000.0 MHz
VSWR
Source Impedance
Load Impedance
Operating Temperature Range
Maximum DC Voltage
Maximum Input Power
936.0 ~ 942.0 MHz
Single Ended (1)
Single Ended (1)
-
-
-
Minimum
-
-
-
50
45
40
50
40
-
-
-
-30
-
-
Typical
939.0
2.5
0.3
65
55
43
60
45
1.5
50
50
-
-
-
Maximum
-
3.0
1.0
-
-
-
-
-
2.0
-
-
+65
5
15
-
ohm
ohm
ºC
V
dBm
Units
MHz
dB
dB
dB
(1) No Matching Network (Ref. Testing Environment Circuit as shown below)
* Custom SAW RF Filters available. Contact Oscilent for assistance.
Pin Layout
A
B
C
D
E
F
Ground
Input
Ground
Ground
Output
Ground
